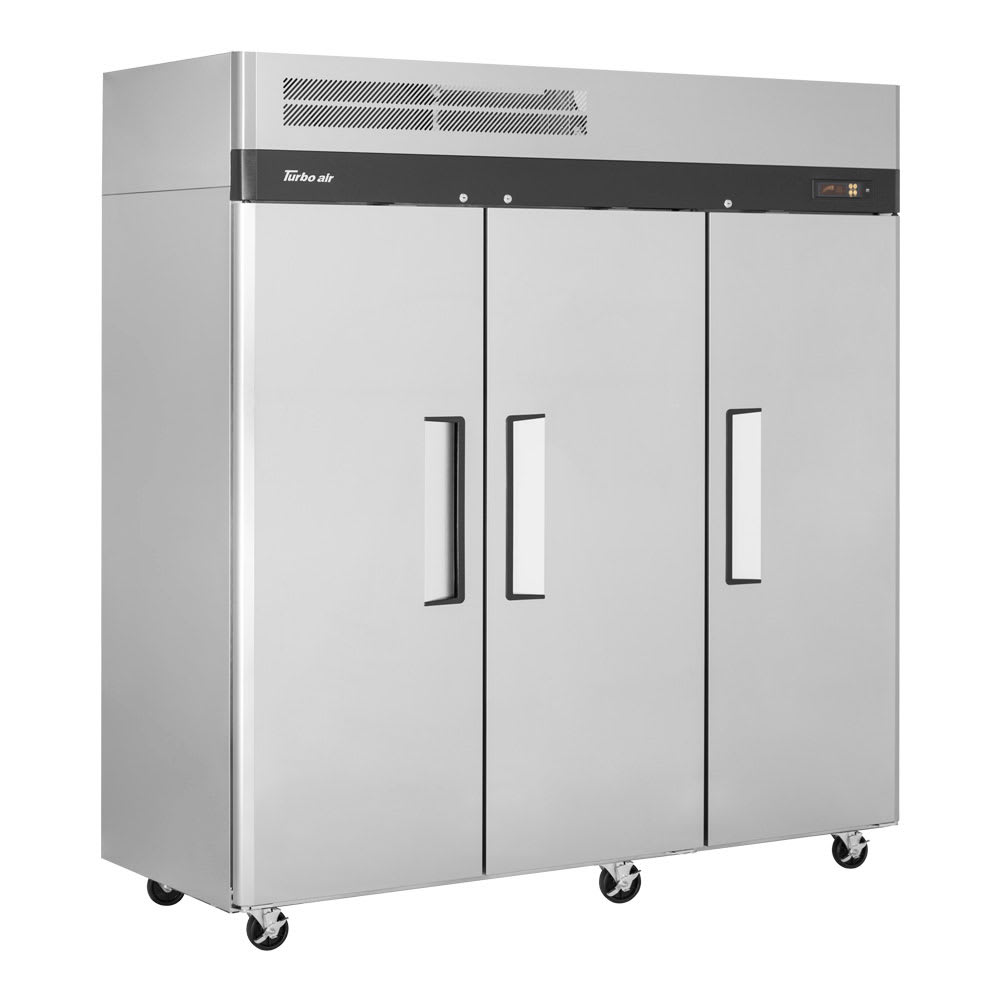

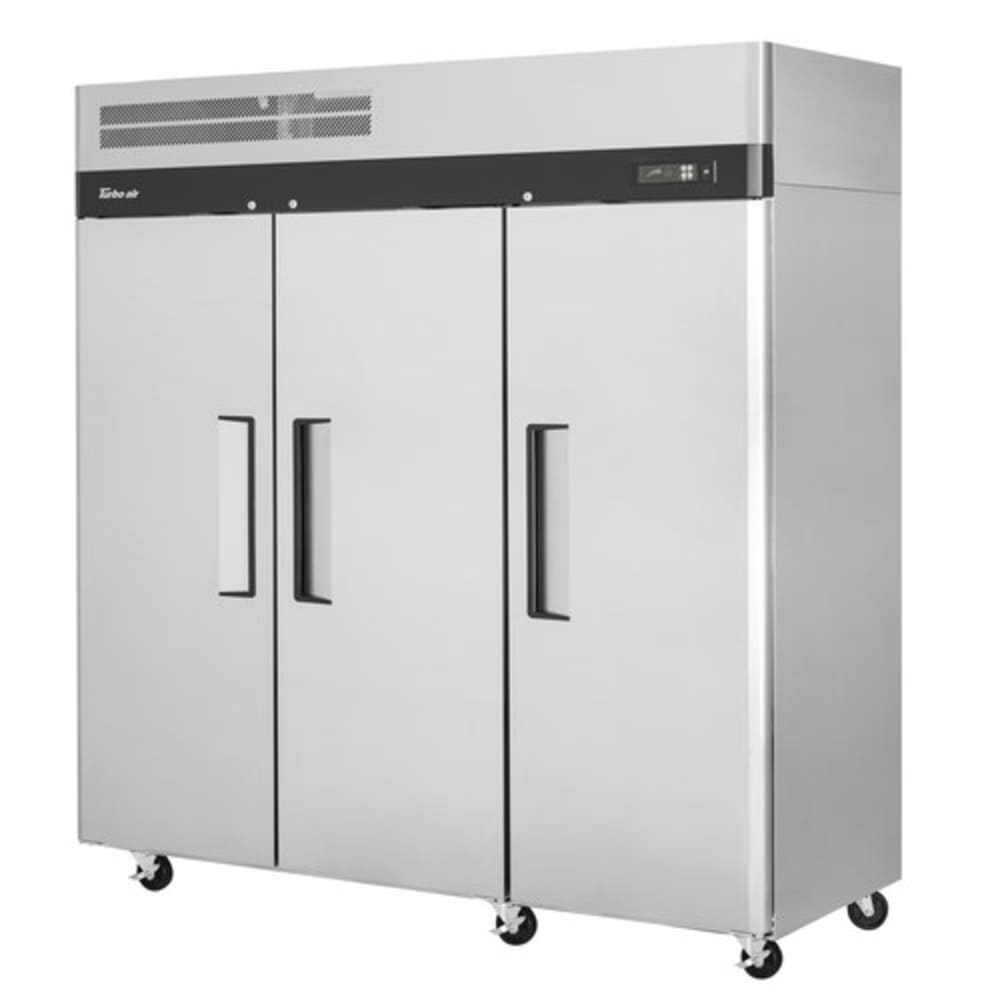

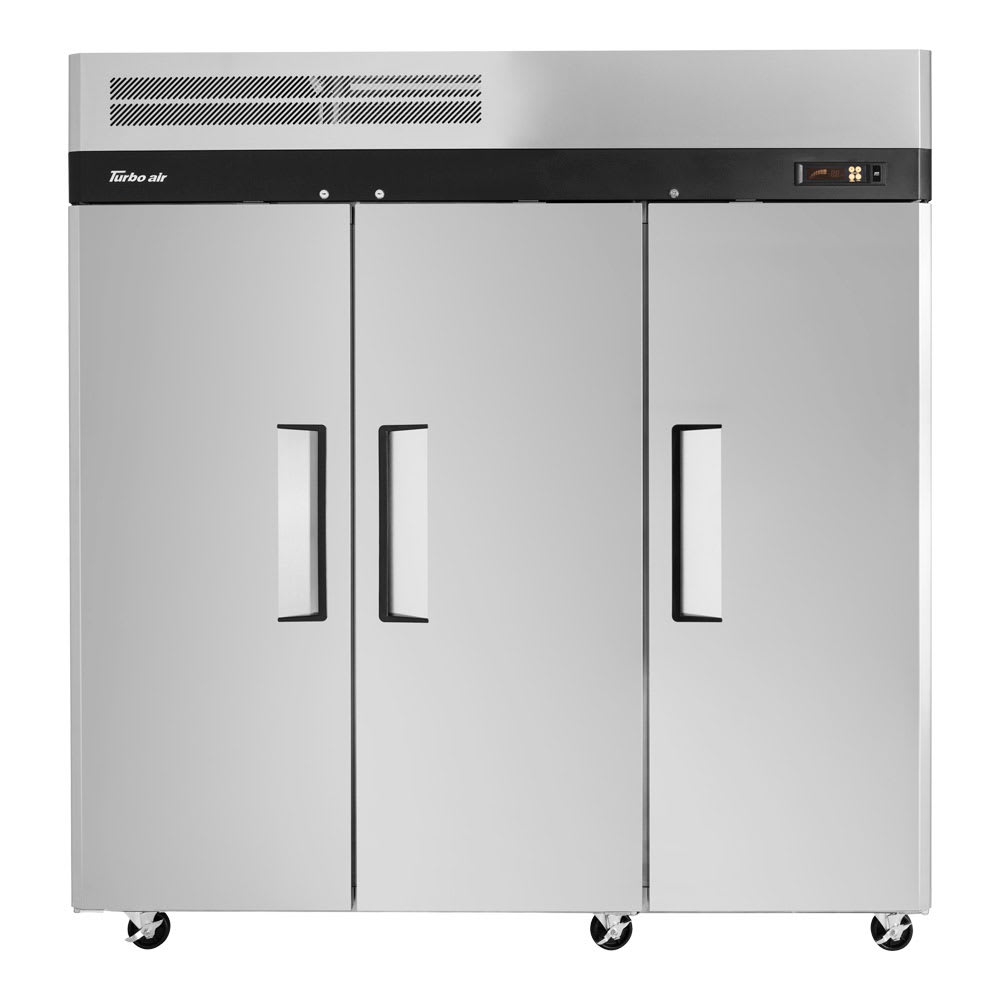

Turbo Air M3R72-3 77.75 Three Section Reach In Refrigerator, (3) Left/Right Hinge Solid Doors, 115v

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the M3R72-3-N. Here are details about that model:

M3 Refrigerator, reach-in, three-section, 65.88 cu. ft., exterior LED digital thermometer, door open beep, self-diagnostic monitoring system, hot gas condensate system, automatic fan motor delays, door pressure release, LED interior lighting, self-cleaning condenser device, (3) hinged solid door with recessed handle & lock, (9) PE coated wire shelves, stainless steel front & sides, aluminum interior with stainless steel floor, 4" swivel casters, top mount self-contained compressor, R290 Hydrocarbon refrigerant, 1⁄2 HP, 115v/60/1-ph, 5.6 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

The Turbo Air M3R72-3 solid-door refrigerator has a hot gas condensate system with surfaces that have been treated to resist corrosion. That prevents the overflow of condensate water and increases efficiency while reducing the risk of refrigerant leakage caused by rust. The self-contained, oversized, and balanced refrigeration system has an efficient evaporator and condenser for faster cooling and greater efficiency. The system is designed to eliminate vacuum pressure and allow easy, instant opening of the doors. By maintaining constant temperatures, the digital temperature control and monitor system keeps food products safe. Alarms that sound when the doors are not sealed shut protect against food spoilage that originates from cold air leaks.

Without proper maintenance, dirty condensers can cause energy consumption increases, compressor failures, health inspection issues, and voided manufacturer warranties. To avoid these problems, the engineers at Turbo Air created the self-cleaning condenser, which is featured on the Turbo Air M3R72-3 solid door refrigerator. A mesh filter prevents dust from getting inside the condenser coil fins and a rotating brush sweeps away dust that has collected two to three times a day. The self-cleaning condenser allows your system to maintain the highest efficiency while reducing the risk of a premature system failure.

Product Details

• 3-section reach-in refrigerator
• Self-contained, oversized, and balanced refrigeration system
• Digital LED display shows current internal temperature
• Thermostatic control system for precise temperature setting
• 33-38 degrees F temperature range
• Self-diagnostics system alerts users to issues with refrigeration system
• Condensate system surfaces are treated to resist corrosion
• Uses a mesh filter to prevent dust from reaching into the condenser coil fins
• Rotating brush sweeps away collected dust on the filter 2-3 times a day
• Stainless steel exterior with galvanized steel top, bottom, and back
• Interior cabinet construction is stainless steel and aluminum
• Exterior edges and sharp corners are rounded to reduce injury risk
• 9 adjustable, heavy-duty, polyethylene-coated wire shelves
• Pressure relief doors eliminate vacuum pressure and allow easy, instant opening
• Top-mounted compressor
• Field-reversible hinges
• Standard door locks prevent product loss
• LED interior lighting is bright and energy efficient
• 72 cu. ft. of storage space
• 3 solid, swinging doors
• Ergonomic easy-grip handles
• Self-closing door hinges
• Magnetic door gaskets can be removed without tools for cleaning
• 4-in.-dia. swivel casters with locks on the front set
• 1⁄2-HP motor
• Uses CFC-free R-134A refrigerant
• 115 V/60 Hz/1 ph, 11.3A, NEMA 5-15P plug with a 9-ft. cord
• Left/right shelf size: 23 in. W x 23 1⁄2 in. D
• Middle shelf size: 25 1⁄4 in. W x 23 1⁄2 in. D
• Interior Dimensions: 73 7⁄8 in. W x 26 1⁄2 in. D x 60 5⁄8 in. H
• Overall Dimensions: 77 3⁄4 in. W x 30 3⁄4 in. D x 78 in. H (D does not include 2 in. for rear condenser enclosure and H does not include 5 in. casters)

Food Safety Features

• Food products kept safe by maintaining constant temperatures between 33-38 degrees F
• Alarms sound when the doors are not sealed shut to protect against food spoilage from cold air leaks
• Evaporator fan motor automatically shuts off when door is open to prevent the intake of warm air
• High-density, CFC-free, foamed-in-place polyurethane insulation
