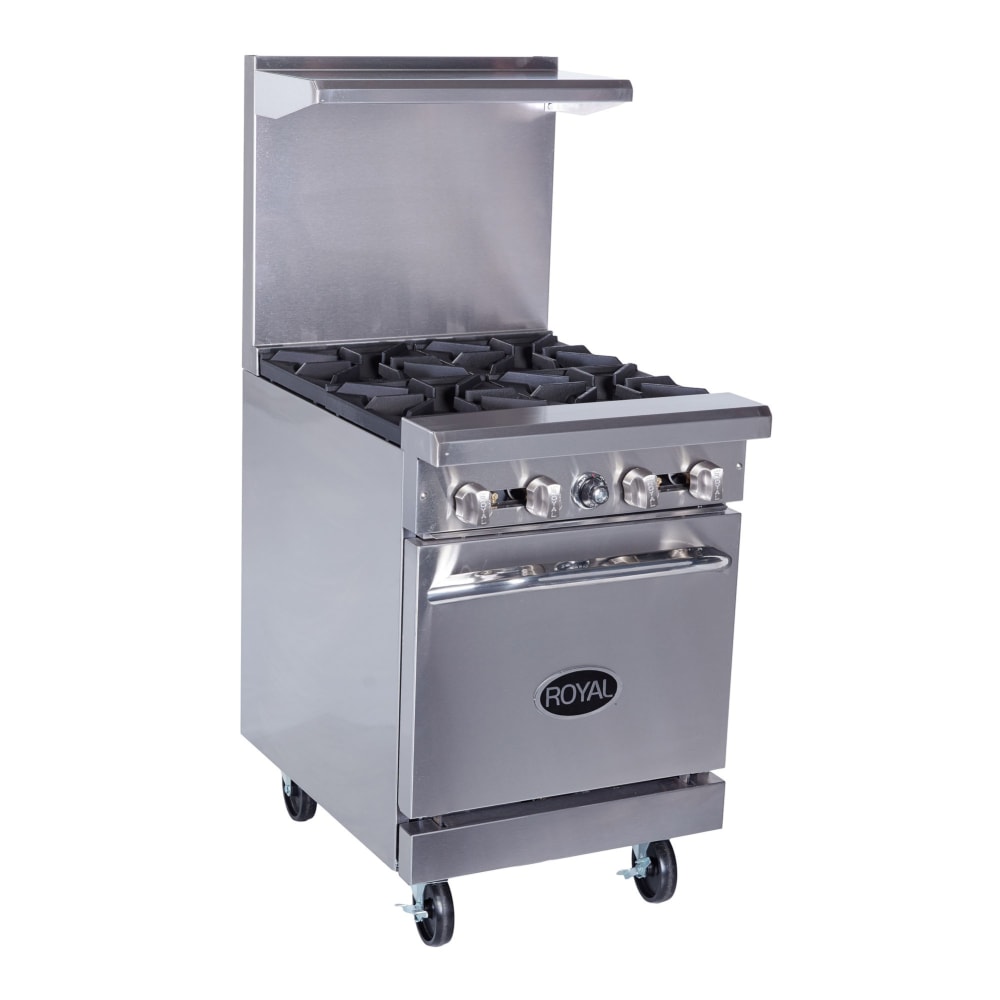

Royal Range 24" 4 Burner Gas Range - (1) Space Saver Oven, Natural Gas (RR-4)

KaTom #: 078-RR4NG • MPN: RR-4 NG
  • 078-RR4NG Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

Retail Price: $8,457.00

$3,240.56 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane
tony wall User Image
Ask a Foodservice Equipment Specialist

Royal Range RR-4 Description

The Royal Range RR-4 gas range combines four open-top burners with a compact space-saver oven to support sauteing, boiling, baking, and roasting applications in commercial kitchens. Each lift-off burner produces 30,000 BTU and uses manual controls for independent heat adjustment across the cooking surface, while the 12-inch by 12-inch cast iron grates support cookware during heavy-duty cooking tasks. Beneath the cooktop, the oven uses a 27,000-BTU stainless steel U-shaped burner and thermostat controls for temperature regulation during baking operations. A porcelain oven interior and chrome rack assembly support cleaning and pan positioning inside the cavity.

Constructed for repeated commercial use, the Royal Range RR-4 gas range incorporates stainless steel front, side, valve cover, kickplate, backguard, and 11-inch-deep high shelf panels. A stainless steel drip tray and grease can collect runoff generated during cooking, while the welded heavy-gauge frame supports durability in demanding kitchen environments. The oven cavity accommodates full-size 18-inch by 26-inch sheet pans and includes one chrome rack supported by five-position heavy-gauge rack guides. Stainless steel burner and pilot tubing pair with a safety shutoff valve system to support controlled gas operation.

  • Part of the Royal series
  • 4 lift-off open burners
  • 30,000 BTU heating output per burner
  • Manual burner controls
  • 147,000 BTU total output
  • Space-saver oven base
  • 27,000-BTU stainless steel oven U-burner
  • Accommodates 18 in. x 26 in. full-size sheet pans
  • 12 in. x 12 in. cast iron top grates
  • 5-surface, porcelain oven interior
  • 1 chrome oven rack
  • 5-position, heavy-gauge chrome rack guides
  • Stainless steel front, sides, valve cover, kickplate, backguard, and 11-in.-deep high shelf
  • Stainless steel drip tray and grease can
  • Welded, heavy-gauge metal frame
  • Stainless steel burner and pilot tubing
  • Safety shutoff valve system
  • Legs included

  • Open-top burner configuration
  • Stainless steel oven U-burner
  • Standing pilot ignition system
  • Manual burner controls
  • Oven safety shutoff system

  • 24 in. W x 32 in. D x 56 1⁄2 in. H
  • 3⁄4-in. gas inlet
  • Powered by natural gas

*Image may not depict product color, inclusions or accessories.

*Free shipping on Royal Range RR-4 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Restaurant Range, Natural Gas, 24", (4) 30,000 BTU lift off top burners, manual controls, space saver oven, 12" x 12" cast iron grates, safety valve, stainless steel front, sides, valve cover, kickplate & 11" D high shelf, legs, 147,000 BTU, cCSAus, CSA-Sanitation

Warranty Icon
2-year Limited Parts; 1-year Labor; Lifetime Frame

Royal Range RR-4 Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
