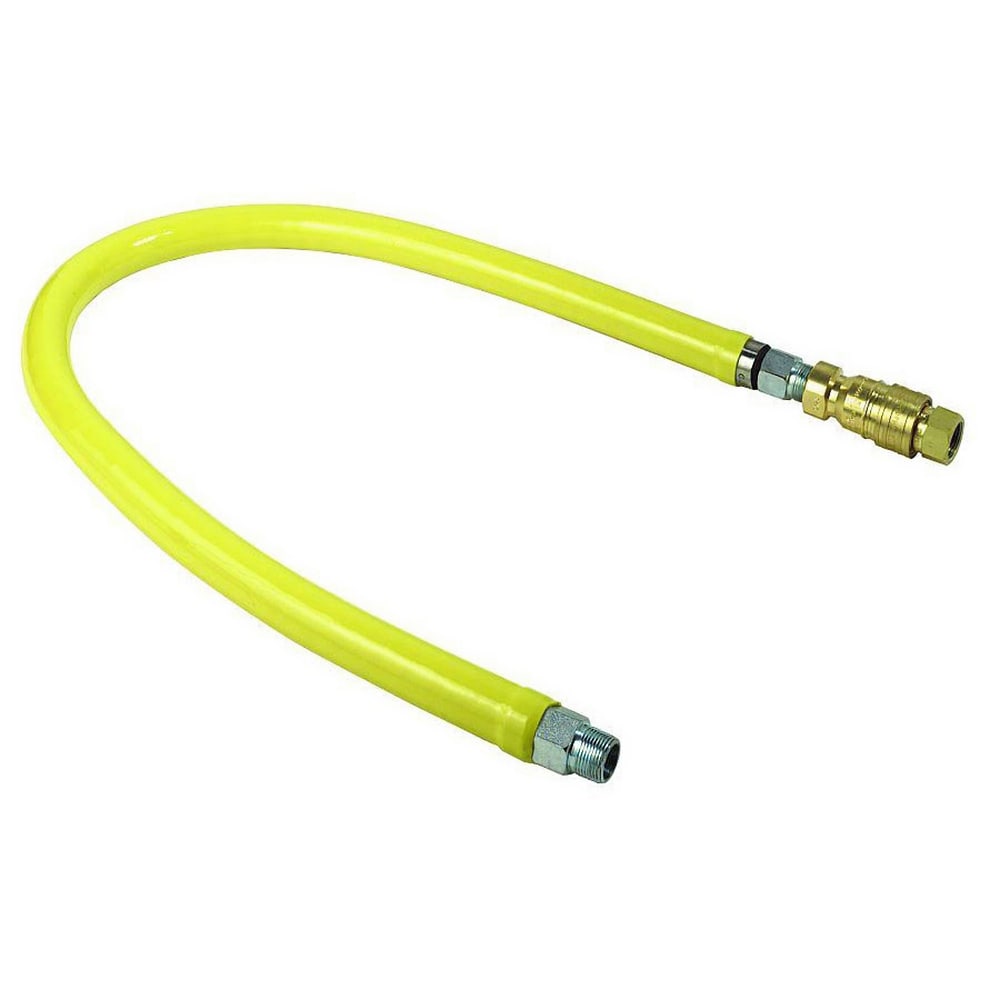

T&S Brass HG-4D-60 60-in Gas Connector Hose, 3/4-in NPT, Male to Quick Disconnect

Model 064-HG4D60 - Gas Appliance Connector - HG-4 Series

The ultimate in efficiency and safety.

• The 4 Series includes a food service Quick Disconnect on the standard hose.
• Fast disconnect for moving appliances
• Solid, proven construction
• 3/4" N.P.T. Male thread to Quick Disconnect
• 60" long hose

Minimum BTU Capacity (In Thousands): With or without Swivelink Connectors: 160

*Note:

• Add an S to the end of the Model number to add Swivelink Fitting to both ends of hose assembly.
• Add a K to the end of the Model number to add K-Model Installation Kit. Installation Kit includes: ball valve, necessary hardware, with Surelink restraining cable adjustable for 3' to 5'.

Welded Fittings

A gas connector is only as good as its weakest link. Trust our welded fittings to remain gas-tight long after a competitor's crimped assembly begins to loosen.

Extruded Coating

Strong does not have to mean less flexible. Our extruded coating stays out of the braid and keeps a constant wall thickness, providing strength and flexibility. Dipped coatings invade the stainless steel braid and stress the wires while reducing flexibility.

Safest Stainless Braid

Stainless braids protect the thin inner hose from pressure and stress. Trust our tight braid pattern to prevent punctures or dents more than a gapped braid.

Product Specifications

• Product Spec Sheet
• Crated Weight: 6 lbs.
• Category: Gas Connectors
• Type: Male Thread - Quick Disconnect
• Manufacturer: T & S Brass
• Manufacturer Part Number (MPN): HG-4D-60
