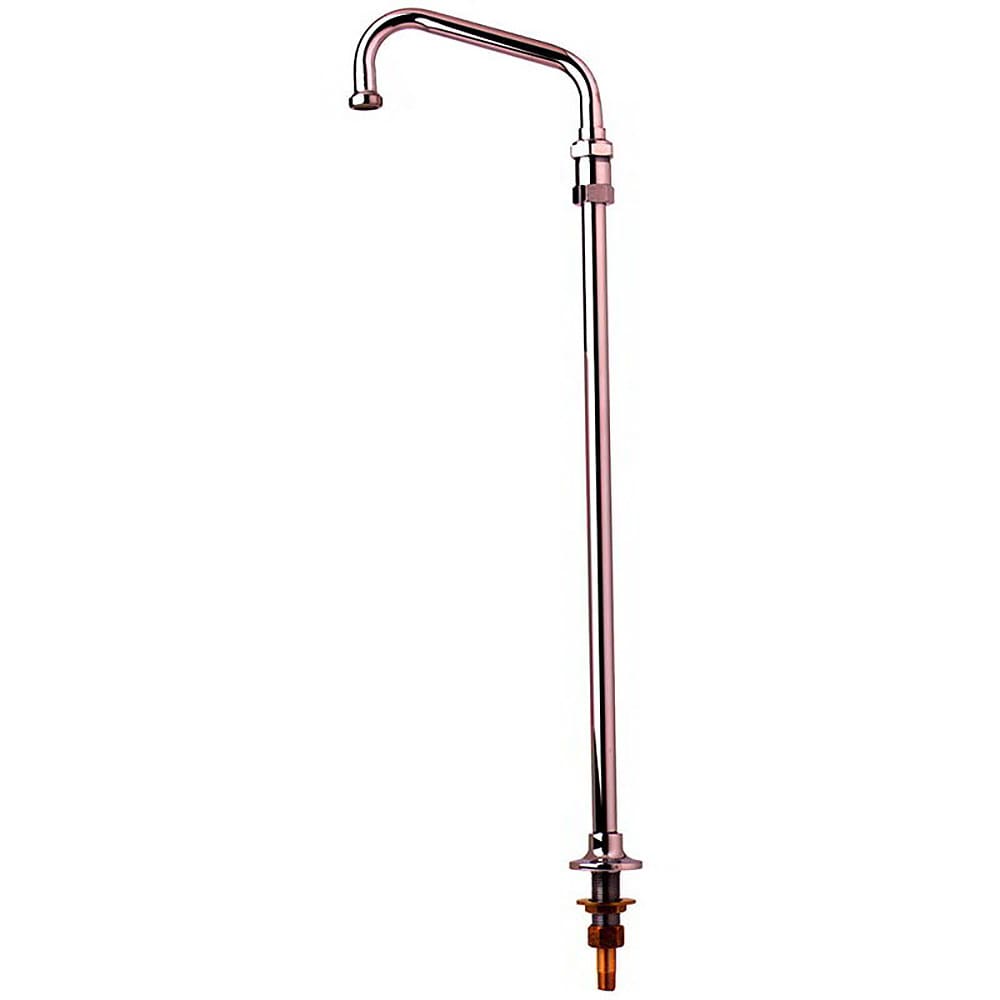

T&S B-0541 Deck Mount Faucet Base w/ 6" Swing Nozzle
$99.76 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
T&S B-0541 Description
Rising above the deck on a 21-inch chrome-plated 3⁄8-IPS riser, the T&S B-0541 deck-mount faucet base positions its 6-inch swing nozzle for elevated clearance and targeted rinsing. This splash-deck configuration uses a swivel dummy nozzle with a stream regulator outlet for controlled delivery. The single-hole, single-temperature body installs on a polished, chrome-plated brass deck flange and connects via a 1⁄2-inch NPSM male inlet, and the 1⁄4-inch IPS union tailpiece connection is available for alternate plumbing setups.
Product Details
- Single-hole, deck-mount configuration with single-temperature setup
- Polished, chrome-plated brass deck flange, body, and tubular spout
- 6-in. swing (swivel) dummy nozzle with stream regulator outlet
- 21-in. chrome-plated 3⁄8-IPS riser for elevated nozzle position
- 1⁄2-in. NPSM male inlet
- 1⁄4-in. IPS union tailpiece connection
- Operating pressure range: 20 to 125 psi
- Temperature range: 40-140 degrees F
*Image may not depict product color, inclusions or accessories.
*T&S B-0541 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Elevated Swing Nozzle, deck mount, 6" swing nozzle, 3/8" IPS chrome-plated riser 21"H, 1/4" IPS union tailpiece connection
T&S B-0541 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Faucet Mount | Deck |
| Handle Type | None |
| Hot Water Inlet (in) | 3/8 |
| Nozzle Length (in) | 6 |
| Nozzle Type | Standard Swing |
| Product | Pot Filler Faucets |
| Product Type | Commercial Sinks |
| Special Features | Low Lead |
| Warranty | 1-year Limited Against Defects in Material & Workmanship |
| Weight | 3.18 |
