Star Manufacturing 860TSA 60" Griddle - 1" Steel Plate & Snap Action Thermostat, NG
Image may not depict product color, inclusions or accessories.

60" Griddle - 1" Steel Plate & Snap Action Thermostat, NG

Star Manufacturing 860TSA Heavy Duty Griddle

Free Shipping

Free Shipping

This product has no reviews.
Be the first to Write a Review
Star Manufacturing
  • Product Code: 062-860TSANG
  • MPN: 860TSA
  • Extended Lead Time (14+ days)
Retail Price: $4,610.00

Add to Cart to See Our Price

To see our price, please add the item to your shopping cart. You won't have to purchase the product (you can easily remove it from your cart if you decide not to buy it) -- your order will not be placed until you click the "Place Order" button.


Warranty Star The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star Manufacturing 860TSA Description

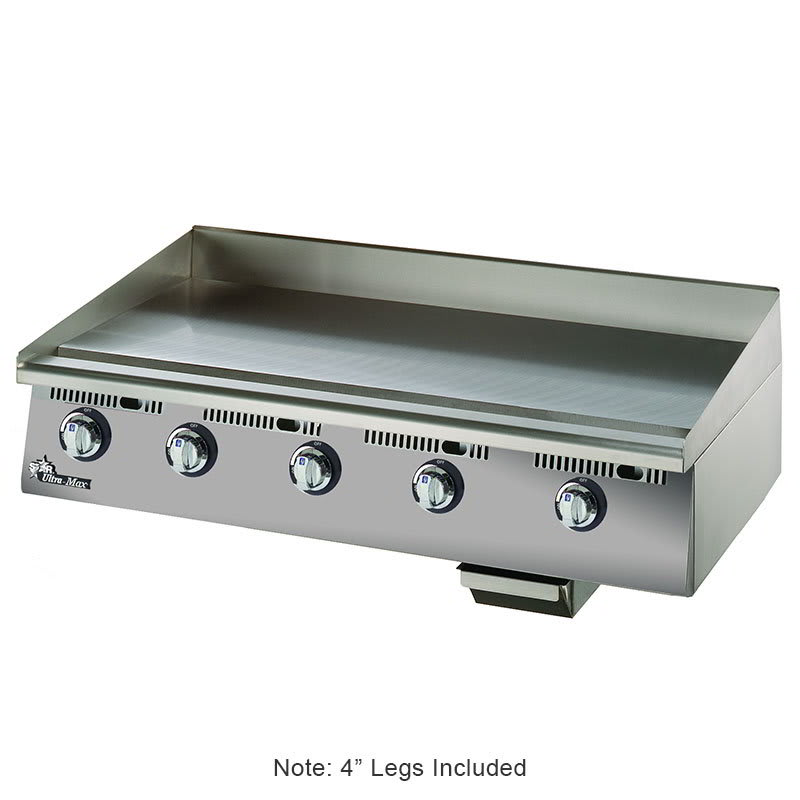

This Star Manufacturing Ultra-Max® gas griddle uses a direct spark ignition and has a snap action thermostat for accurate temperature control. Surface temperatures are detected by an internal plate sensor, allowing the gas griddle's thermostat to respond quickly to surface temperature changes. Heavy-duty metal knobs and stainless steel construction throughout the gas griddle add to the unit's durability.

Product Details

  • NG gas
  • Replaces 860TS
  • New direct spark ignition with auto shutoff
  • Temperature can be set from 150 - 550 degrees F
  • Highly polished 1-in. thickness steel plate distributes heat efficiently
  • Snap action thermostat controls steel burner every 12-in. of cooking area
  • Splash guard and cool-to-the-touch bull nose front built from stainless steel
  • Spatula-wide 3-1/2 in. grease chute and trough
  • (2) 6-qt. grease drawers with stainless steel construction
  • Heavy 4-in. adjustable height legs
  • 120 V/60 Hz/1-ph, 200,000 BTU, NEMA 5-15 plug (included)
  • Total Dimensions: 60-in. W x 32-3/8 in. D x 18-in. H
  • cULus, and UL-EPH Listed, ISO 9001:2000 Certified

Direct Spark Ignition

  • The new direct spark ignition does not require a standing pilot light, and is a safer and more efficient system.
  • Includes electronic flame monitoring with auto shutoff as safety features

Control Over Cooking Temperatures

  • Thermostat controls heat from 150 - 550 degrees F
  • Accurate temperature control to within 20 degrees F improves low temperature performance
  • Sensor is set at 3/16-in. from the cooking area and responds quickly to changes in food temperatures
  • 40,000 BTU steel burners every 12-in. are controlled by snap action thermostat
  • 1-in. thick griddle plate retains and conducts heat efficiently

Ultra-Max Griddle, NG gas, 60"L, 32-3/8"D, 18"H, 1" steel griddle plate, snap action valve controls with direct spark ignition, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 200,000 BTU

Star Manufacturing 860TSA Specifications

  • PDF Product Spec Sheet
  • Manufacturer: Star Manufacturing
  • Type: Heavy Duty
  • Width (in): 60
  • Category: Griddles
  • Also Known As: 860TS
  • BTU: 150,000
  • Cooking Surface: Steel
  • Controls: Snap Action Thermostat
  • Griddle Plate: 1
  • Heat: Gas
  • Weight: 656lbs.
