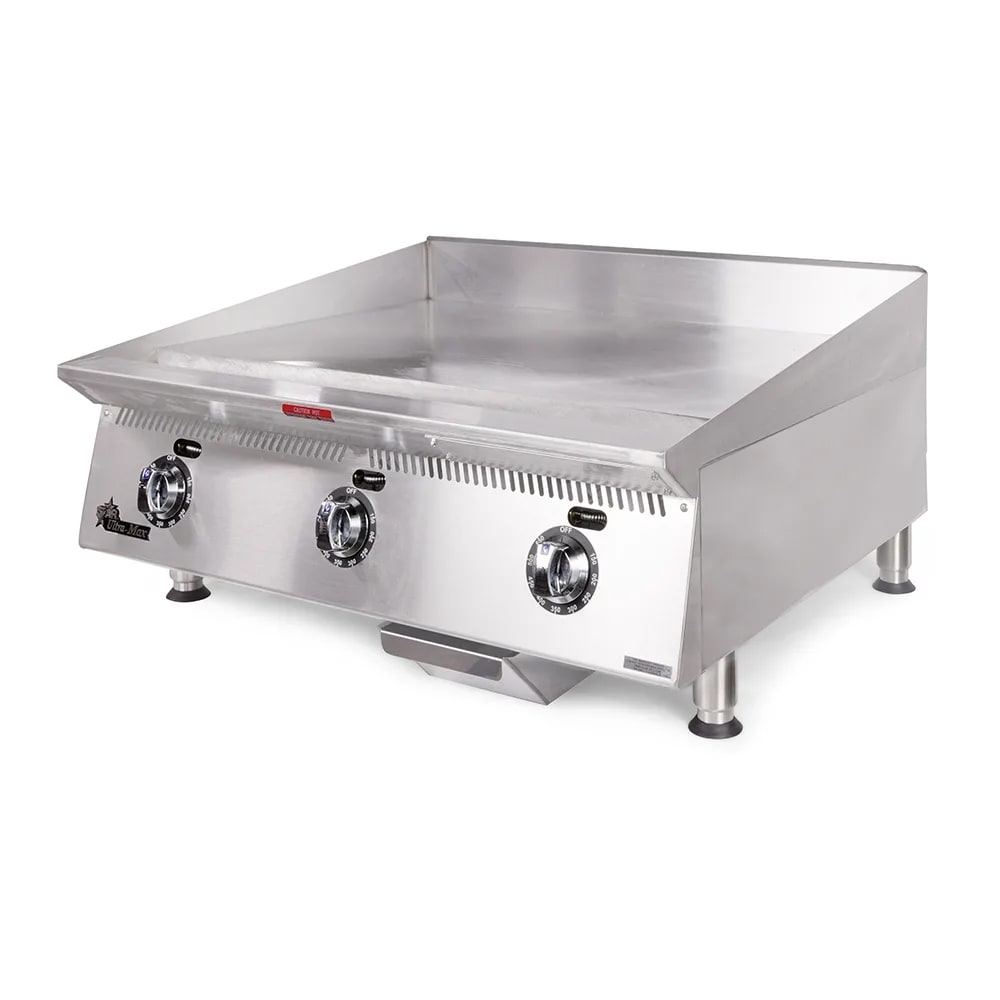

Star Manufacturing 836TA 36" Griddle - 1" Steel Plate & Throttling Thermostat Controls, LP
Image may not depict product color, inclusions or accessories.

36" Griddle - 1" Steel Plate & Throttling Thermostat Controls, LP

Star Manufacturing 836TA Heavy Duty Griddle

Free Shipping

Free Shipping

This product has no reviews.
Be the first to Write a Review
Star Manufacturing
  • Product Code: 062-836TALP
  • MPN: 836TA
  • Typically ships within 1 - 3 business days
Retail Price: $2,513.00

Add to Cart to See Our Price

To see our price, please add the item to your shopping cart. You won't have to purchase the product (you can easily remove it from your cart if you decide not to buy it) -- your order will not be placed until you click the "Place Order" button.


Warranty Star The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star Manufacturing 836TA Description

This Star Ultra-Max® snap-action gas griddle has a 24 inch deep cooking surface with three 30,000 BTU steel burners. An all-welded body constructed from stainless steel provides durability, and the griddle has a cool-to-the-touch bull nose front over the front controls. For easy cleaning, this griddle includes a large six quart grease drawer and spatula-wide grease chute. It is shipped to use propane gas, but can be converted to natural gas in the field using the supplied kit.

Product Details

  • Replaces 836T
  • Temperature range from 150 - 550 degrees F
  • Snap-action controls keep the temperature within 20 degrees of set point
  • 1-in. thick, polished steel griddle plate
  • Cooking surface is 24-in. D
  • Internal plate temperature sensor 3/16-in. from cooking surface
  • 3 metal knobs on front panel, shielded from cooking area by bull nose cover
  • 3 'U' shape 30,000 BTU steel burners, 1 every 12-in. of cooking space
  • Griddle has a welded, stainless steel body, including front panel, bull nose, and splash guard
  • Bull nose front stays cool during operation
  • 3-1/2 in. W grease trough located at front with grease chute
  • 6-qt. stainless steel grease drawer
  • 5-in. stainless steel wrap-around splash guard
  • 4-in. H legs with 1-5/8 in. adjustment
  • LP gas, supplied field conversion kit to NG
  • Standing pilot light
  • 3/4-in. N.P.T male gas connection with convertible pressure regulator
  • 90,000 BTU
  • Overall Dimensions: 36-in. W x 32-3/8 in. D x 18-in. H
  • cULus Gas-Fire and UL-EPH Listed, NSF and ISO 9001:2000 Certified

Precise Temperature Control

  • Internal plate sensor measures the griddle plate temperature and responds to surface temperature change
  • Snap action control prevents temperature overshoot and keeps the cooking surface within 20 degrees F of the set point
  • 30,000 BTU burners every 12-in. of cooking space and 1-in. thick steel plate ensure even and consistent cooking

Heavy-Duty Construction

  • Stainless steel body is welded for durability and ease of cleaning
  • Burners are made from corrosion-resistant steel for a long life
  • Heavy, adjustable legs keep griddle sturdy and secure during use

Ultra-Max Griddle, LP gas, 36"L, 32-3/8"D, 18"H, 1" steel griddle plate, mechanical snap action controls, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 90,000 BTU

Star Manufacturing 836TA Specifications

  • PDF Product Spec Sheet
  • Manufacturer: Star Manufacturing
  • Type: Heavy Duty
  • Width (in): 36
  • Category: Griddles
  • BTU: 90,000
  • Also Known As: 836T
  • Cooking Surface: Steel
  • Controls: Throttling Thermostat
  • Griddle Plate: 1
  • Heat: Gas
  • Weight: 369lbs.
