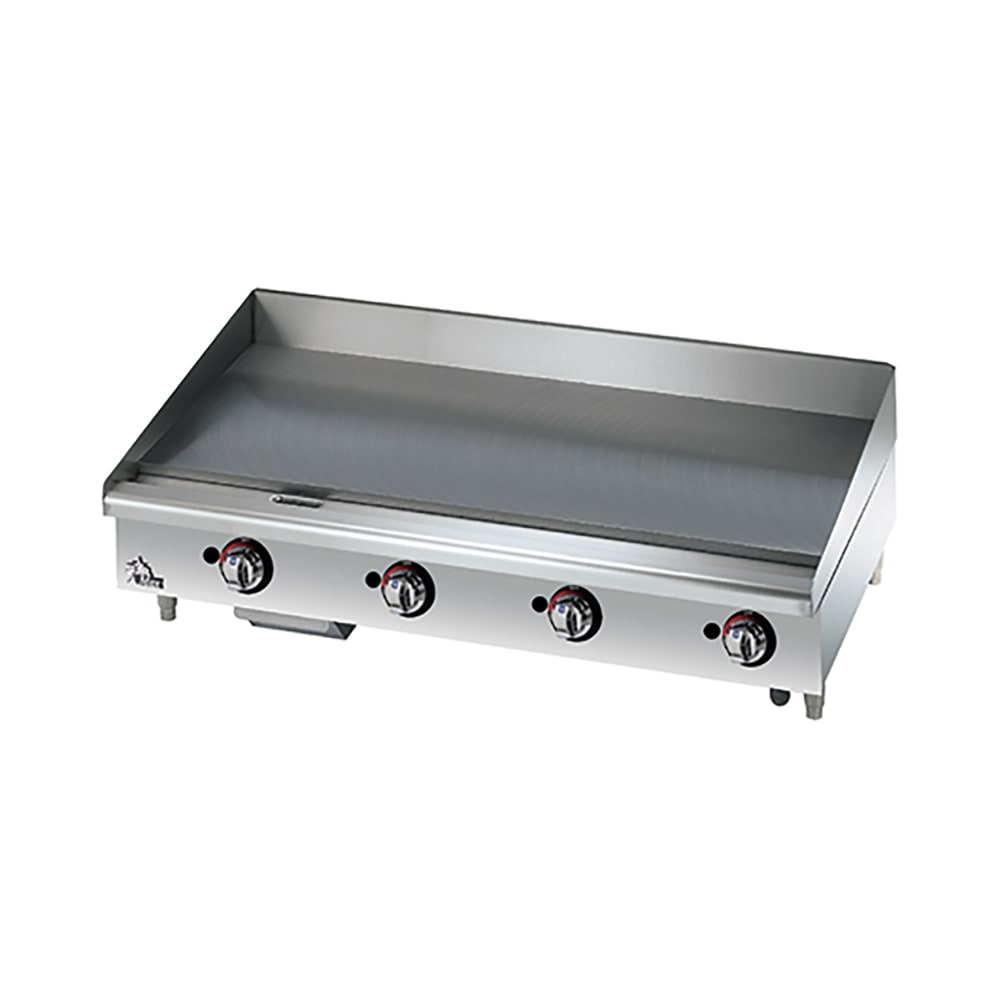

Star Manufacturing 648TF 48" Griddle - 1" Steel Plate, Thermostat Controls, NG
Image may not depict product color, inclusions or accessories.

48" Griddle - 1" Steel Plate, Thermostat Controls, NG

Star Manufacturing 648TF Commercial Griddle

Free Shipping

Free Shipping

This product has no reviews.
Be the first to Write a Review
Star Manufacturing
  • Product Code: 062-648TF
  • MPN: 648TF
  • Typically ships within 4 - 8 business days
Retail Price: $2,279.00

Add to Cart to See Our Price Question Mark

Warranty Star The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star Manufacturing 648TF Description

The Star-Max® 48 inch gas griddle has a temperature range of 150 to 450 degrees Fahrenheit with a throttling thermostat to maintain a constant cooking temperature. The unit is shipped to be used with natural gas and includes a kit for field-conversion to LP gas. The griddle is constructed of stainless steel along with a four and a half inch tapered splash guard and cool-to-the-touch front to provide the operator with a safe and comfortable work environment.

Product Details

  • Star-Max® Series
  • Replaces 648TD
  • Temperature range of 150 - 450 degrees F
  • Throttling thermostat maintains constant cooking temperature
  • 48-in. cooking surface
  • 1-in. thick polished steel plate distributes heat evenly and allows for quick temperature recovery when cold food is placed on griddle
  • All stainless steel construction resists corrosion and is easy to clean
  • 4-1/2 in. tapered splash guard keeps surrounding area clean
  • Bull nose front is cool-to-the-touch

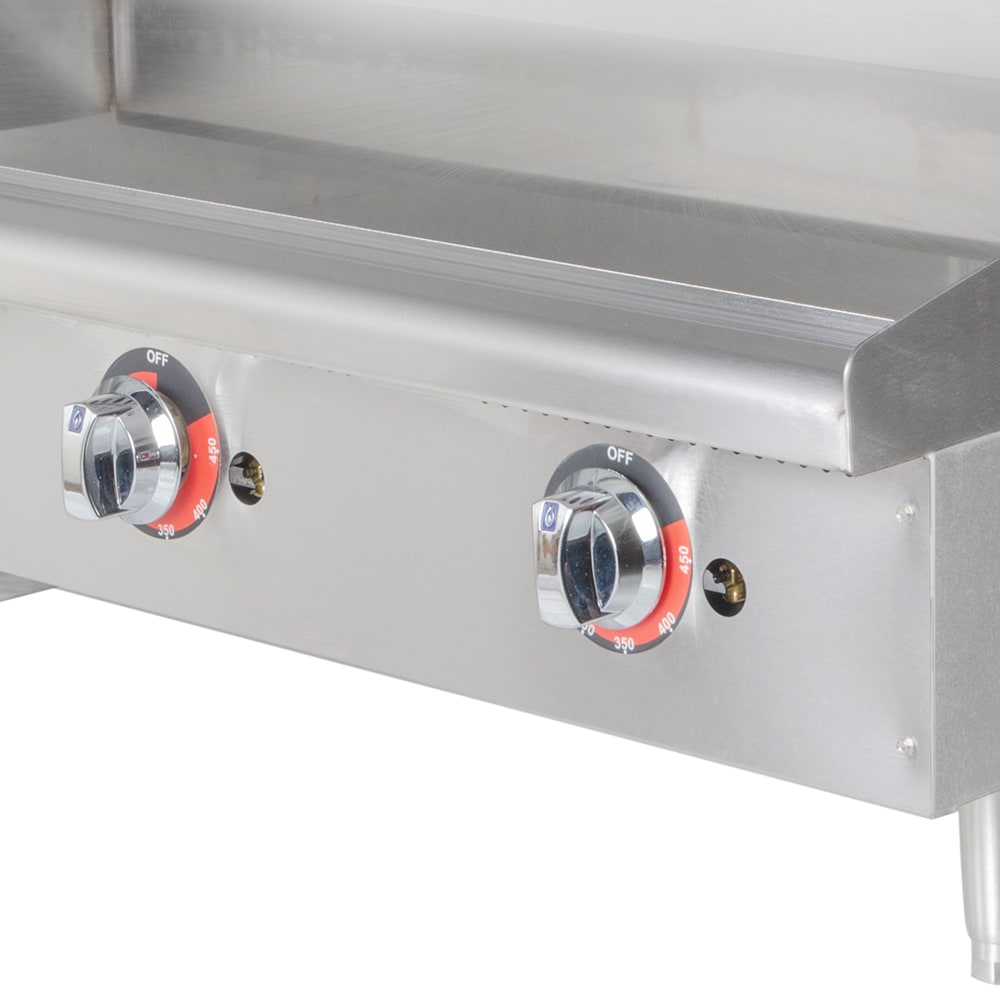

  • Heavy-duty metal knobs withstand frequent use
  • Total of (4) 28,300 BTU burners are spaced every 12-in. for uniformly heated cooking surface
  • Double wall construction with enclosed bottom protects griddle against heat loss
  • All-welded body includes bull nose, front, and splash guard
  • Cool-to-the-touch front provides operator with safe, comfortable conditions
  • 3-1/4 in. grease trough make cleaning simple
  • 4-1/2 qt. stainless steel grease drawer
  • Unit is shipped for use with NG; field-conversion kit for LP gas is included
  • (4) 4-in. adjustable legs are included
  • 113,200 total BTU output
  • Overall Dimensions: 48-in. W x 29-in. D x 15-1/2 in. H
  • cULus and UL-EPH Listed; ISO 9001:2000, ANSI, and NSF Certified

Durable Construction and Safe Operation

  • Welded, stainless steel body resists corrosion and will hold up under frequent use
  • Tapered splash guard and cool-to-the-touch front protect cooks from burns and provides a comfortable work environment
  • Double walls and enclosed bottom keep heat from escaping

Star-Max Heavy Duty Griddle, countertop, NG gas, 48"L, 27-3/4"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 113,200 BTU. Shipped with field conversion kit for LP.

Star Manufacturing 648TF Specifications

  • PDF Product Spec Sheet
  • Manufacturer: Star Manufacturing
  • Width (in): 48
  • Cooking Surface: Steel
  • Controls: Thermostatic
  • Heat: Gas
  • Griddle Plate: 1"
  • BTU: 100,000 to 149,999
  • Also Known As: 648TD
  • Weight: 350lbs.
