Star Manufacturing 548TGF 48-in Griddle w/ 1-in Steel Plate, Thermostat Controls, 208/1v
Image may not depict product color, inclusions or accessories.

48-in Griddle w/ 1-in Steel Plate, Thermostat Controls, 208/1v

Star Manufacturing 548TGF Medium Duty Griddle

Free Shipping

Free Shipping

This product has no reviews.
Be the first to Write a Review
Star Manufacturing
  • Product Code: 062-548TGF2081
  • MPN: 548TGF
  • Typically ships within 1 - 3 business days
Retail Price: $1,916.00

Add to Cart to See Our Price

To see our price, please add the item to your shopping cart. You won't have to purchase the product (you can easily remove it from your cart if you decide not to buy it) -- your order will not be placed until you click the "Place Order" button.

Close

Warranty Star The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
PDF

Star Manufacturing 548TGF Description

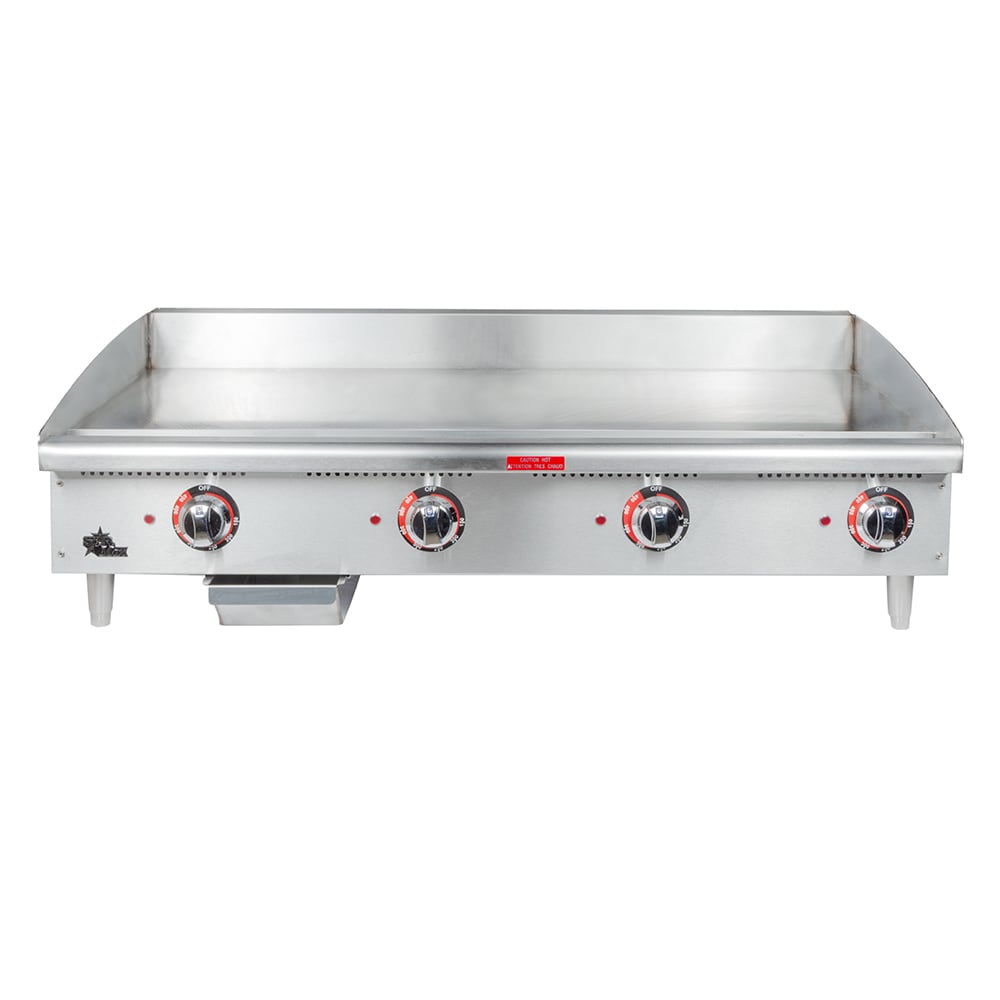

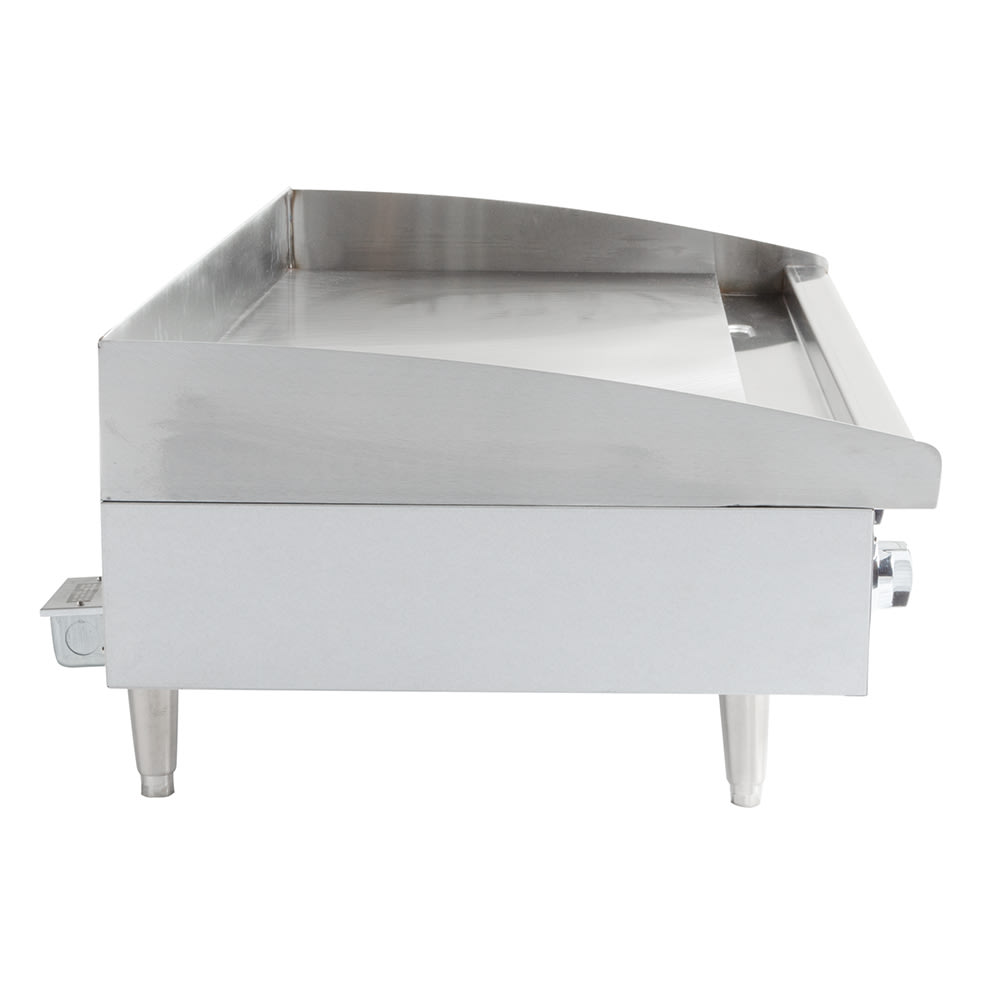

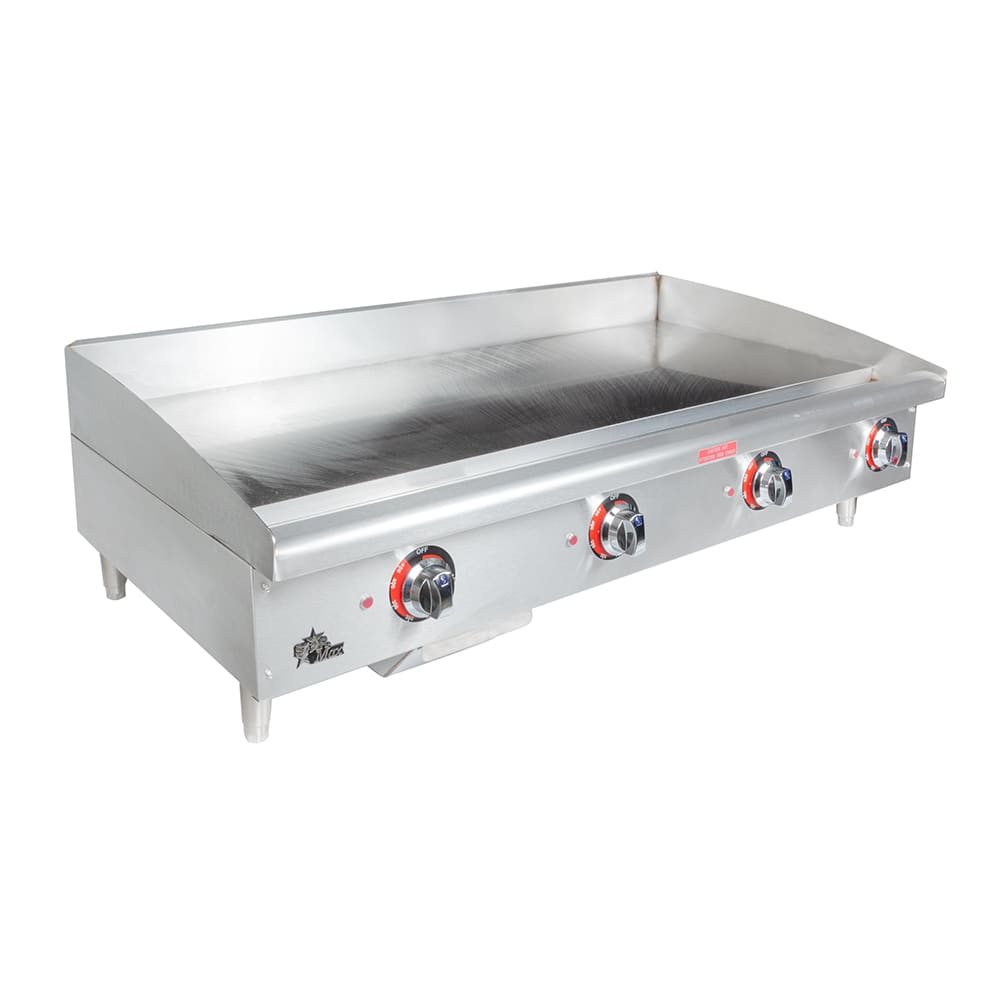

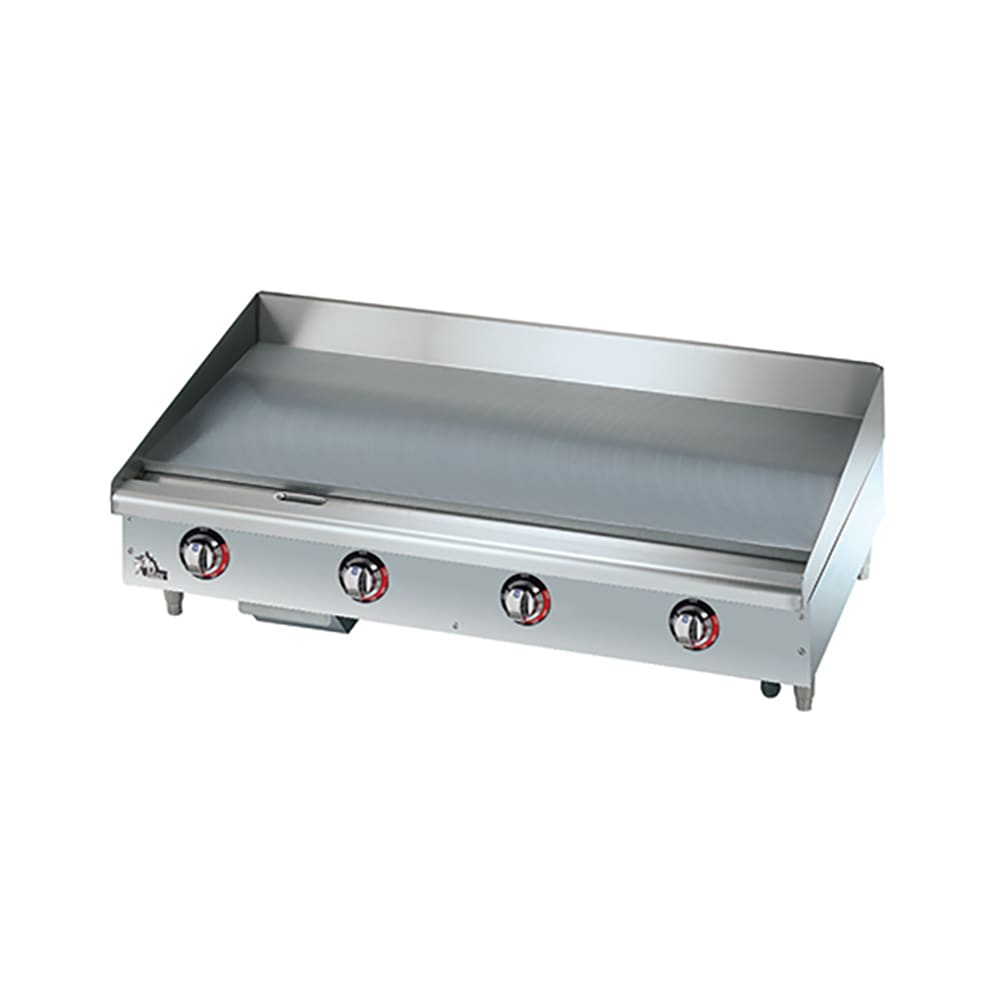

This Star-Max® electric griddle has a thick one inch cooking surface with 4000 watt elements fitted under each 12 inches of space for even cooking. A snap-action thermostat ensures precise heat management, and the cooking temperature on the griddle can be adjusted by front-mounted metal knobs, between 150 and 450 degrees Fahrenheit. A splash guard and bull nose front, constructed from durable stainless steel, protects the user from hot grease while using the griddle.

Product Details

  • Replaces 548TGD
  • Star-Max® Series
  • Adjustable from 150 - 450 degrees F
  • Cooking plate is constructed from 1-in. thick polished steel
  • 4000W element heats each 12-in. W of cooking area
  • Snap-action thermostat is fitted 5/16-in. from the plate
  • Stainless steel construction, including bull nose, splash guard, and grease drawer

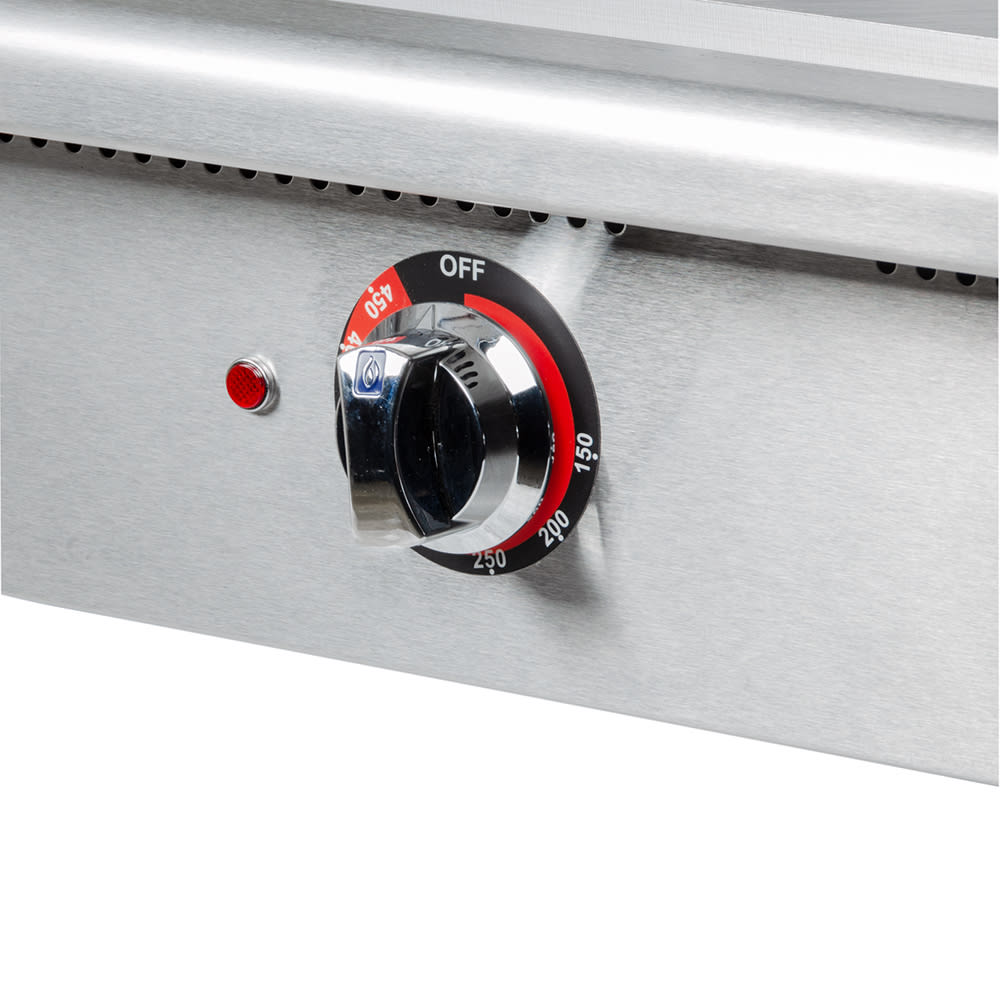

  • 4 metal knobs to control heating elements
  • Double-wall sides and enclosed underside prevent heat loss
  • Bull nose front stays cool during use and protects user from injury
  • 4-1/2 in. H splash guard is fitted to back and sides of the griddle
  • 4.5-qt. capacity grease drawer

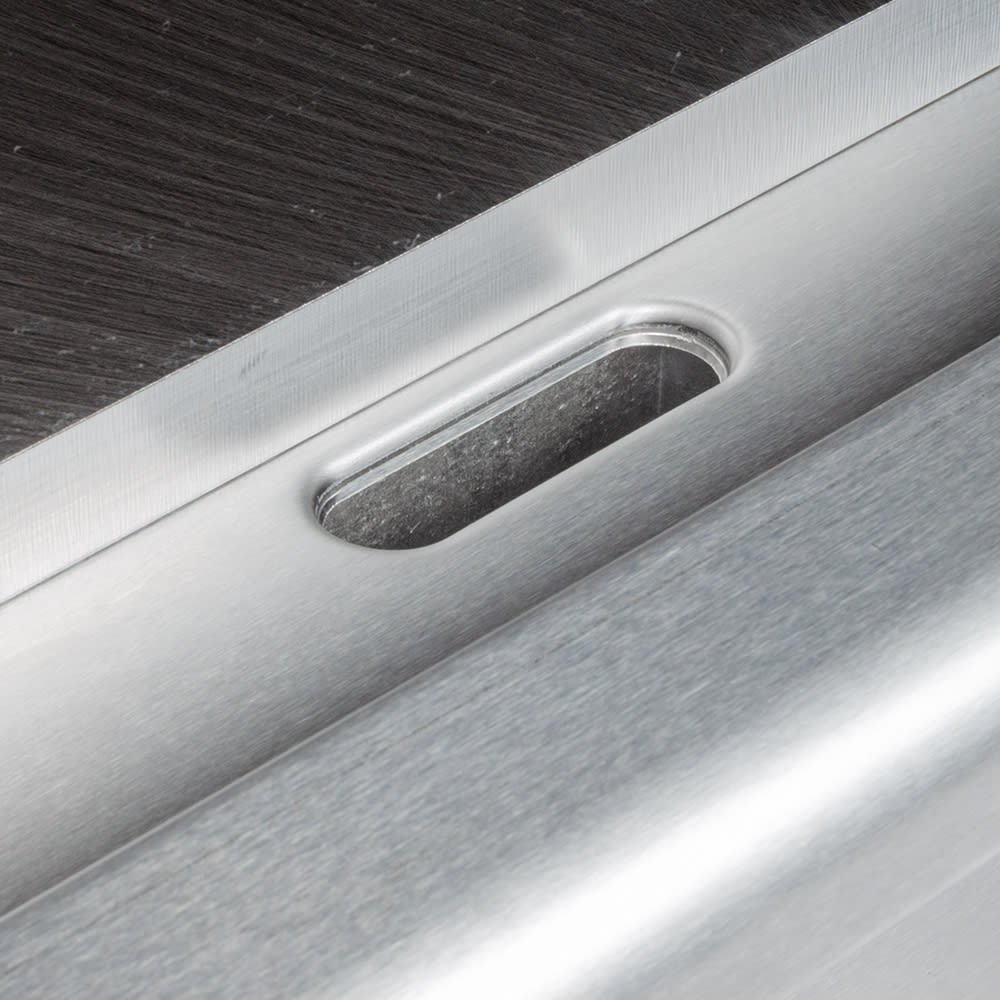

  • Grease trough is 3-1/4 in. W to accommodate a spatula for scraping
  • 4 adjustable legs
  • Junction box at rear of unit for electrical connections
  • 208/240 V/60 Hz/1-ph, 12016/16000W, 57.8/66.7 A, plug and cord not included
  • Overall Dimensions: 48-in. W x 27-7/8 in. D x 15-1/2 in. H
  • cULus, CSA, and UL-EPH Listed; NSF and ISO 9001:2000 Certified

Precise Temperature Control

  • 1-in. polished cooking surface is constructed from steel and distributes heat evenly for consistent cooking
  • Heat loss is prevented by a sealed bottom and double-walled construction
  • Temperature changes are detected by the snap action thermostat, which provides fast recovery and consistent heating

Heavy-Duty Construction

  • Stainless steel construction for the bull nose, splash guard and grease drawer make the unit easy to clean
  • Nickel-plated, die-cast, 1-3/8 in. adjustable legs provide support and access underneath the unit for cleaning
  • Incoloy sheath heating elements resist corrosion and are durable at high temperatures

Star-Max Heavy Duty Griddle, countertop, electric, 48"L, 27-7/8"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 208/60/1v

Star Manufacturing 548TGF Specifications

  • PDF Product Spec Sheet
  • Manufacturer: Star Manufacturing
  • Cooking Surface: Steel
  • Controls: Thermostat
  • Griddle Plate: 1"
  • Heat: Electric
  • Also Known As: 548TGD
  • Width (in): 48
  • Voltage: 208/240/1
  • Weight: 350lbs.
