Star Manufacturing 524TGF 24-in Griddle w/ 1-in Steel Plate, Thermostat Controls, 208/240/1 V
Image may not depict product color, inclusions or accessories.

24-in Griddle w/ 1-in Steel Plate, Thermostat Controls, 208/240/1 V

Star Manufacturing 524TGF Medium Duty Griddle

Free Shipping

Free Shipping

This product has no reviews.
Be the first to Write a Review
Star Manufacturing
  • Product Code: 062-524TGF2081
  • MPN: 524TGF
  • Typically ships within 1 - 3 business days Quick Ship
Retail Price: $1,157.00

Add to Cart to See Our Price

To see our price, please add the item to your shopping cart. You won't have to purchase the product (you can easily remove it from your cart if you decide not to buy it) -- your order will not be placed until you click the "Place Order" button.

Close

Warranty Star The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
PDF

Star Manufacturing 524TGF Description

This Star-Max® electric griddle by Star Manufacturing has two 4000 watt heating elements under the cooking surface to provide consistent cooking power, and the double-walled edges of the griddle prevent heat loss. The griddle has stainless steel components throughout its construction, including a six quart grease drawer and bull nose front. With a snap-action thermostat, this electric griddle maintains consistent temperatures between 150 and 450 degrees Fahrenheit.

Product Details

  • Replaces 524TGD
  • Star-Max® Series
  • Temperature range of 150 - 450 degrees F
  • Polished 1-in. steel cooking plate
  • 4000W cooking element every 12-in. W of cooking surface
  • Snap-action thermostat embedded 5/16-in. from the cooking surface
  • Stainless steel construction
  • 2 durable metal control knobs
  • Enclosed bottom and wrap-around, double-walled sides keep heat in the cooking zone
  • Double-wall feature enables griddle to be installed 1-in. from combustible surfaces
  • Cool-to-the-touch stainless steel bull nose protects controls
  • Griddle is enclosed by 4-1/2 in. H splash guard
  • 4.5-qt. grease drawer

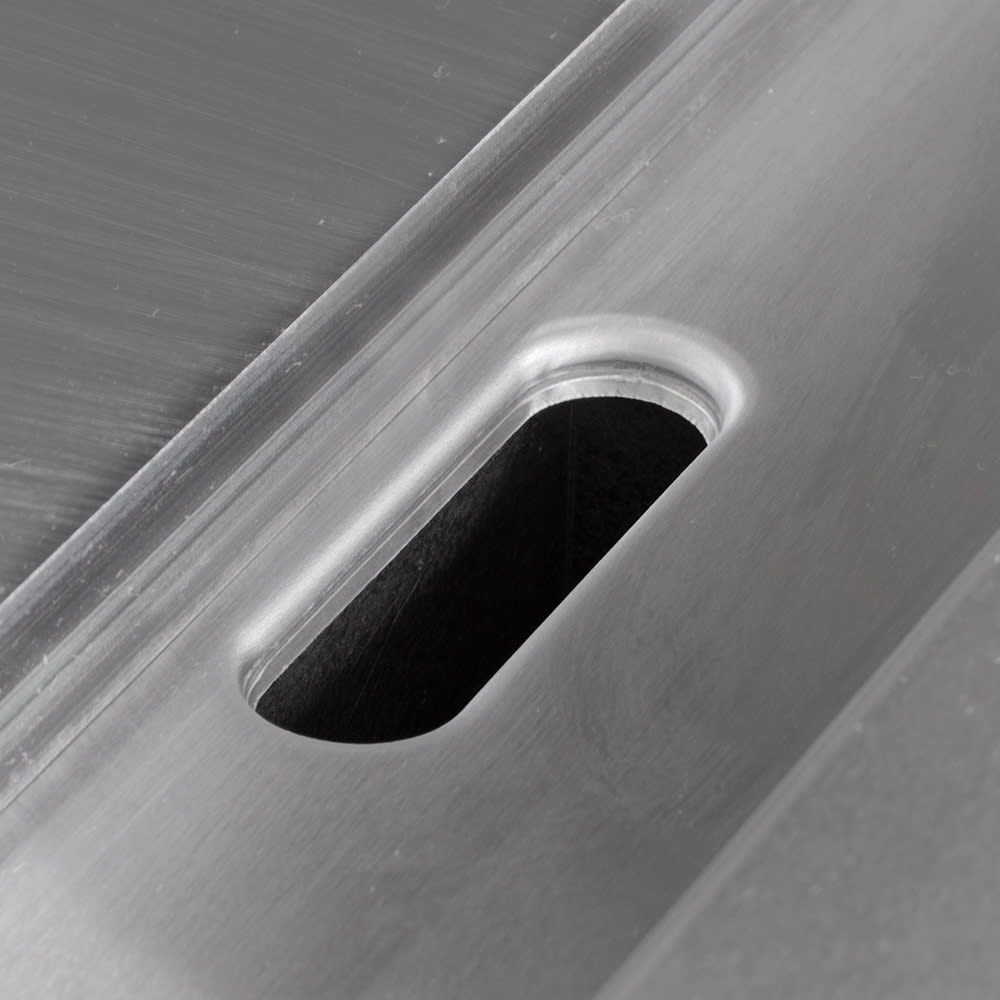

  • Spatula-wide grease trough (3-1/4 in.) with chute
  • (4) 4-in. legs, adjustable by 1-3/8 in.
  • Electrical junction box at back for electrical connections
  • 208/240 V/60 Hz/1-ph, 6008/8000W, 28.9/33.3 A, plug and cord not included
  • Overall Dimensions: 24-in. W x 27-7/8 in. D x 15-1/2 in. H
  • cULus, CSA, and UL-EPH Listed; NSF and ISO 9001:2000 Certified

Precise Temperature Control

  • Thick polished steel cooking surface retains heat, and cooking elements fitted under every 12-in. of cooking area provide even cooking to food items
  • Double-wall construction around sides and back and an enclosed bottom prevent heat loss
  • Snap action thermostat responds quickly to temperature changes and provides fast recovery

Heavy-Duty Construction

  • Stainless steel front, bull nose, splash guard, and grease drawer are easy to clean and resist scratches
  • Adjustable legs are nickel-plated and die-cast, providing heavy-duty support while the griddle is in use
  • Incoloy sheath heating elements have strength at high temperatures and corrosion resistance

Star-Max Heavy Duty Griddle, countertop, electric, 24"L, 27-7/8"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 208/60/1v

Star Manufacturing 524TGF Specifications

  • PDF Product Spec Sheet
  • Manufacturer: Star Manufacturing
  • Width (in): 24
  • Voltage: 208/240/1
  • Heat: Electric
  • Griddle Plate: 1"
  • Controls: Thermostat
  • Cooking Surface: Steel
  • Also Known As: 524TGD
  • BTU: 100,000 or less
  • Weight: 175lbs.
