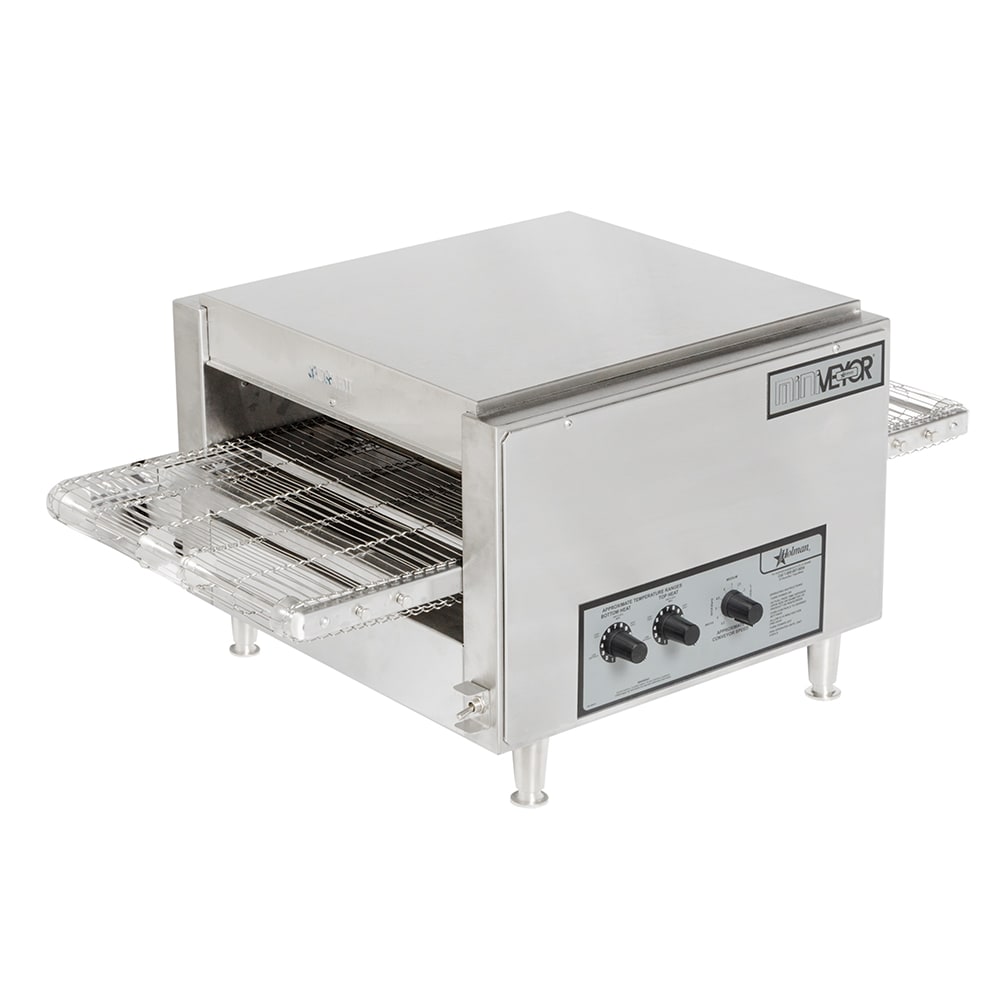

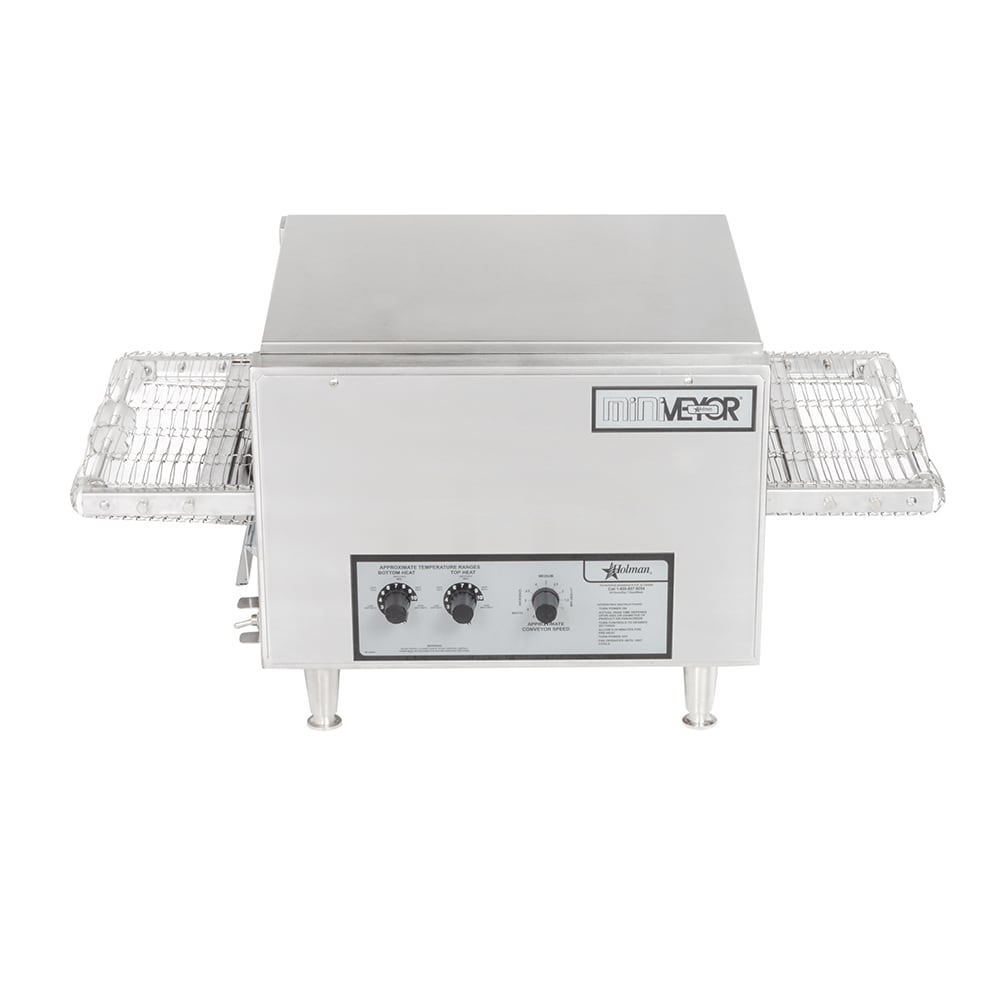

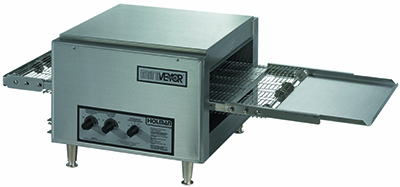

Star 214HX 31" Miniveyor Electric Countertop Conveyor Oven - 240v/1ph
Typically ships in 4 - 8 Business Days
$5,793.00 /Each
Call for details!
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
Star 214HX Description
The Star 214HX Miniveyor® conveyor oven can cook (31) 9-inch-diameter pizzas per hour, and to evenly heat product, infrared quartz heating elements are located above and below the 31-inch by 14-inch conveyor belt. To keep the belt cool and protect its integral components, the unit operates with a forced convection system.

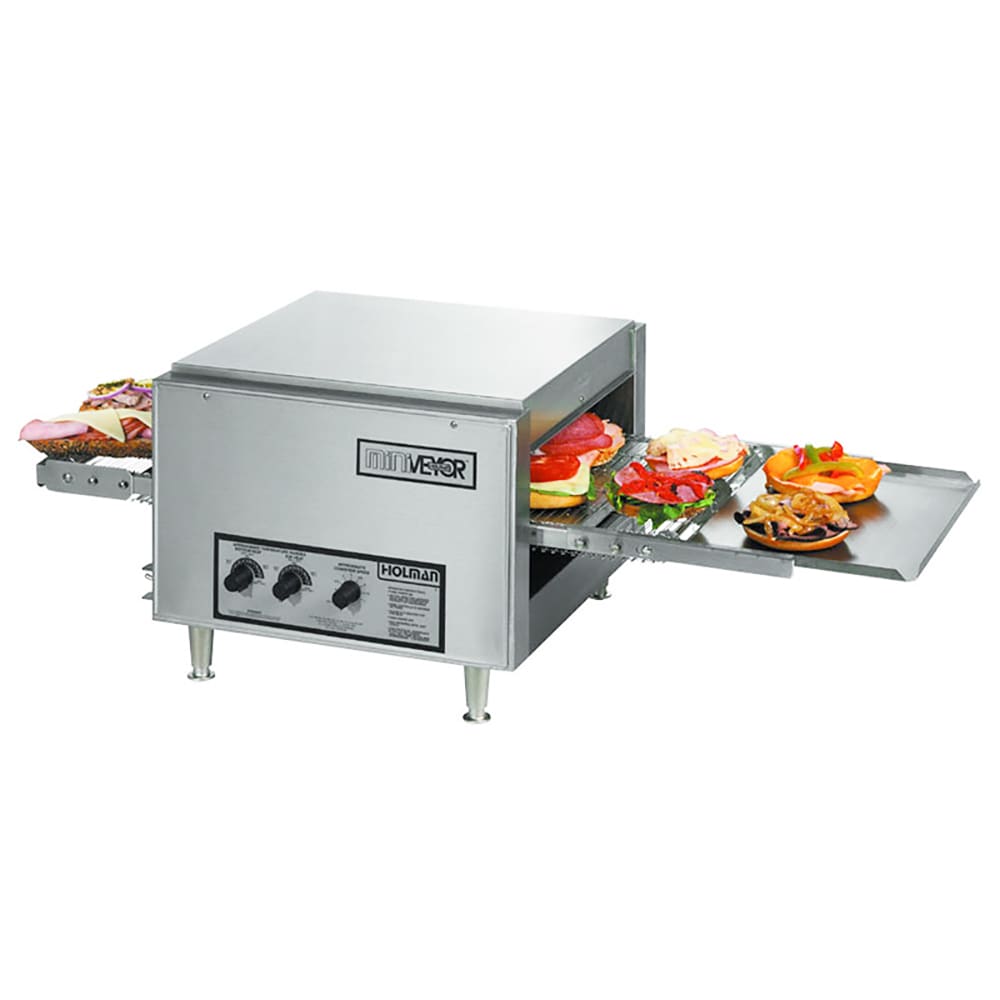

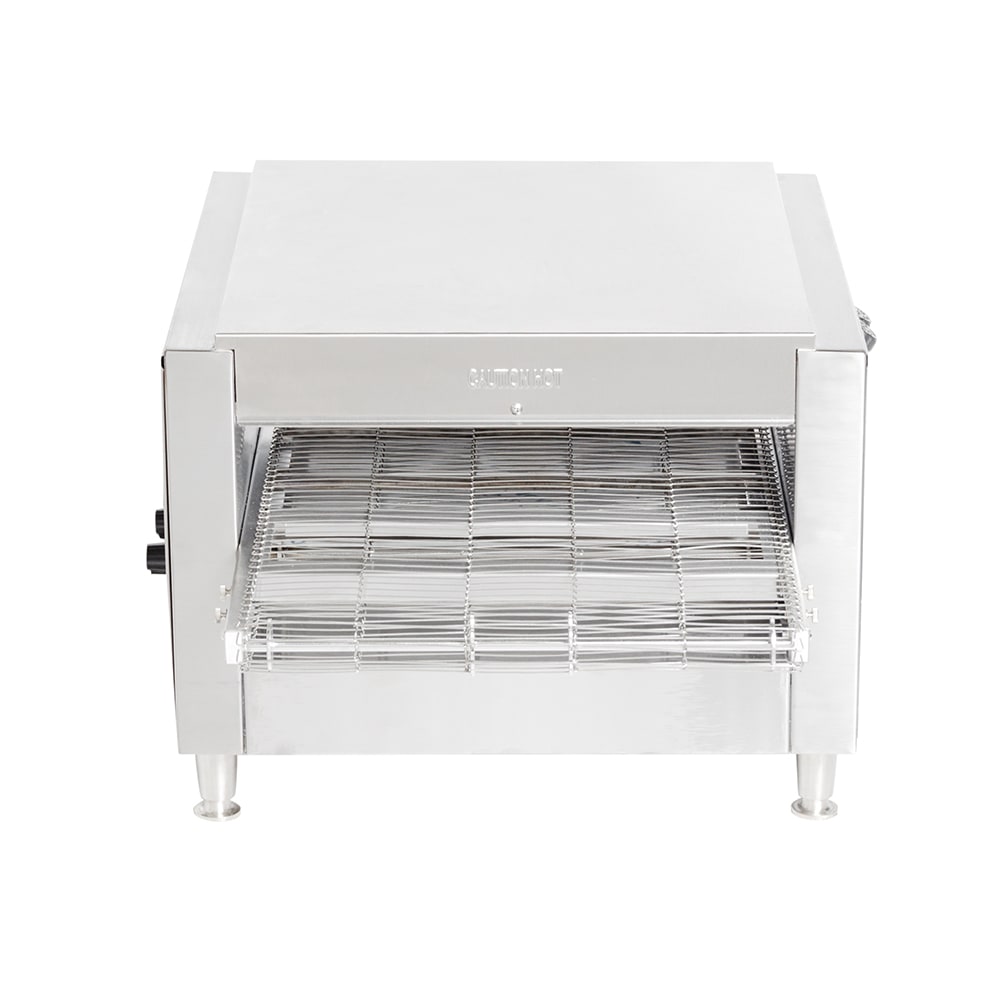

The chamber openings on the Star 214HX conveyor oven are adjustable from 1 1⁄2 inches to 3 inches to accommodate different products. On each end of the belt, extenders provide a place for loading and unloading pizzas, and using analog controls, operators can regulate the speed and top and bottom heat. Stackable with one other unit, this oven increases production without taking up additional counter space.
- Can bake (31) 9-in. pizzas in an hr.
- Quartz infrared elements above and below the belt provide quick, even heating
- Forced convection system keeps the belt cool and protects internal components

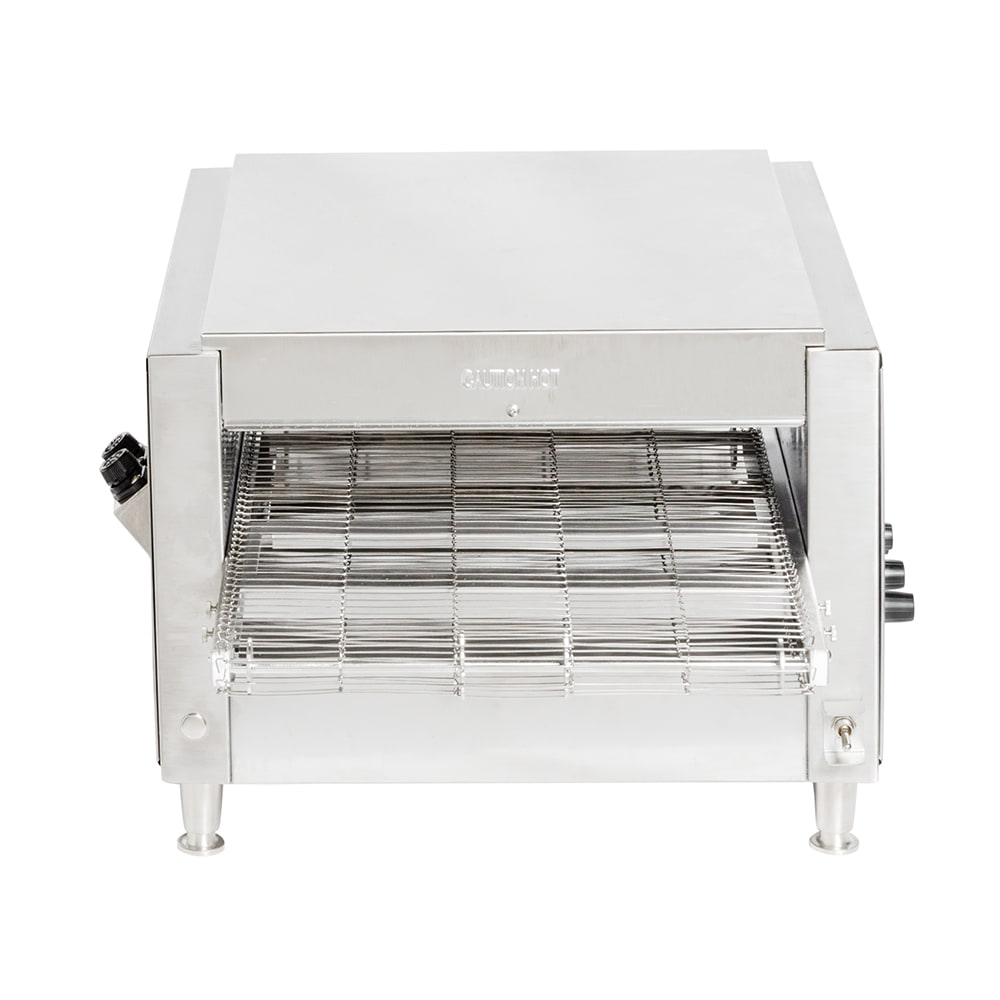

- Chamber openings are adjustable from 1 1⁄2 in. to 3 in.
- Conveyor belt moves left to right

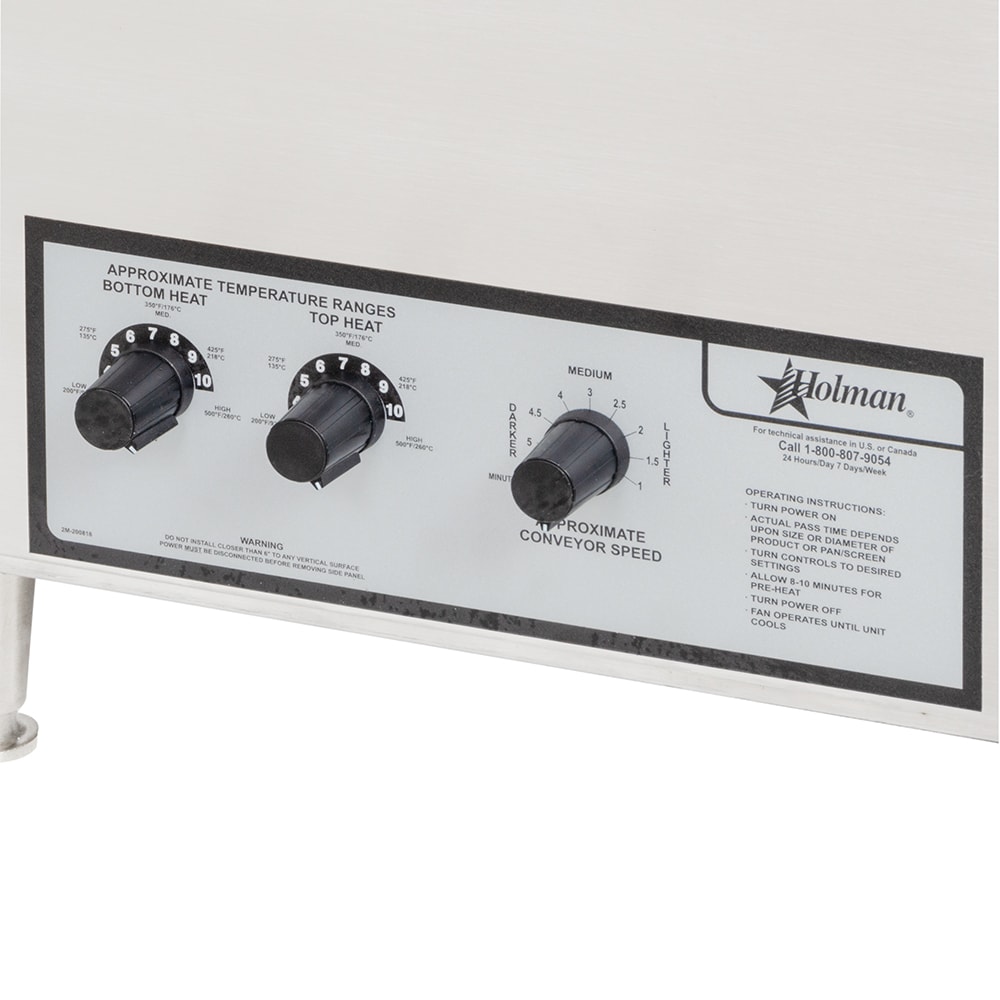

- Analog control system adjusts the top and bottom heating elements and conveyor speed
- Crumb tray is removable and catches food particles to simplify cleaning

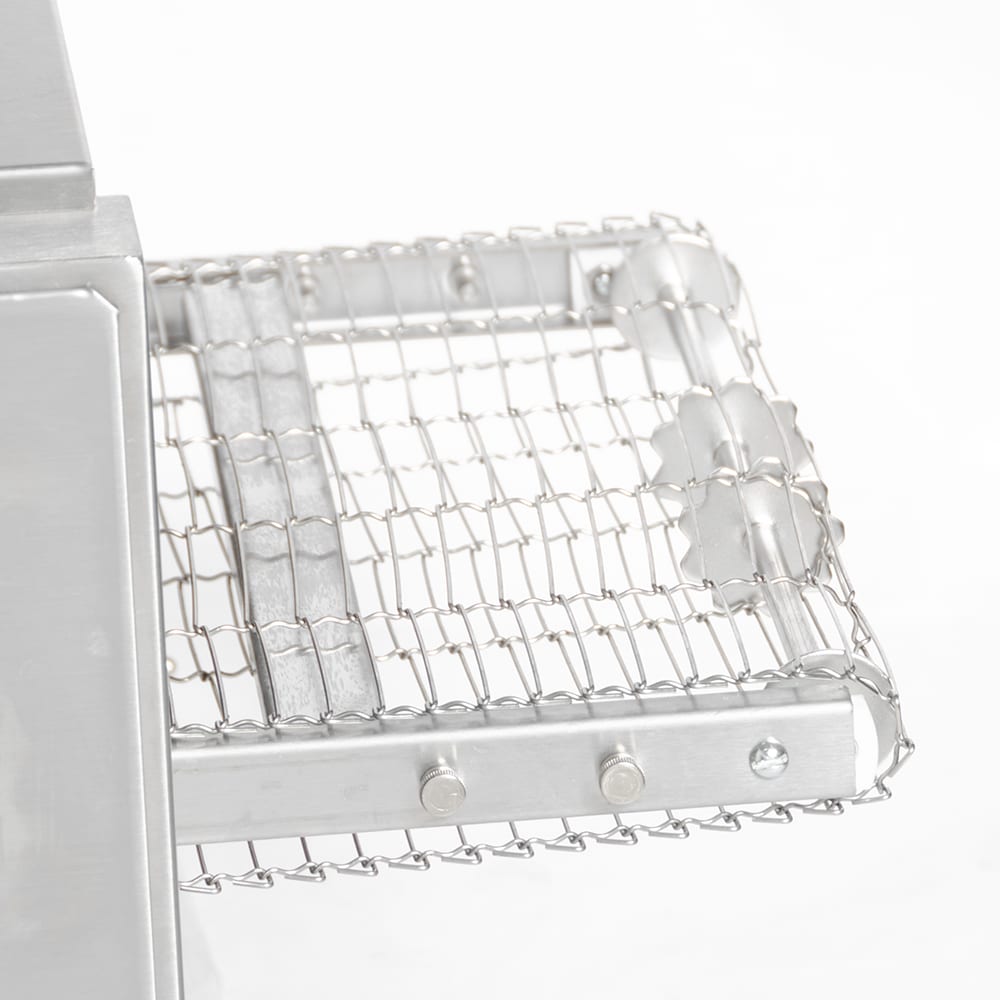

- Removable, 6 1⁄2-in. loading and unloading extenders provide a place to set food
- 2 1⁄2-in. legs elevate the unit for cleaning underneath
- Can be stacked with another conveyor oven
- Belt: 31 in. L x 14 in. W
- Cooking chamber: 16 9⁄10 in. L x 14 3⁄10 in. W
- Overall: 36 2⁄5 in. W x 19 2⁄5 in. D x 14 in. H
- 16.7 A, 4000 W

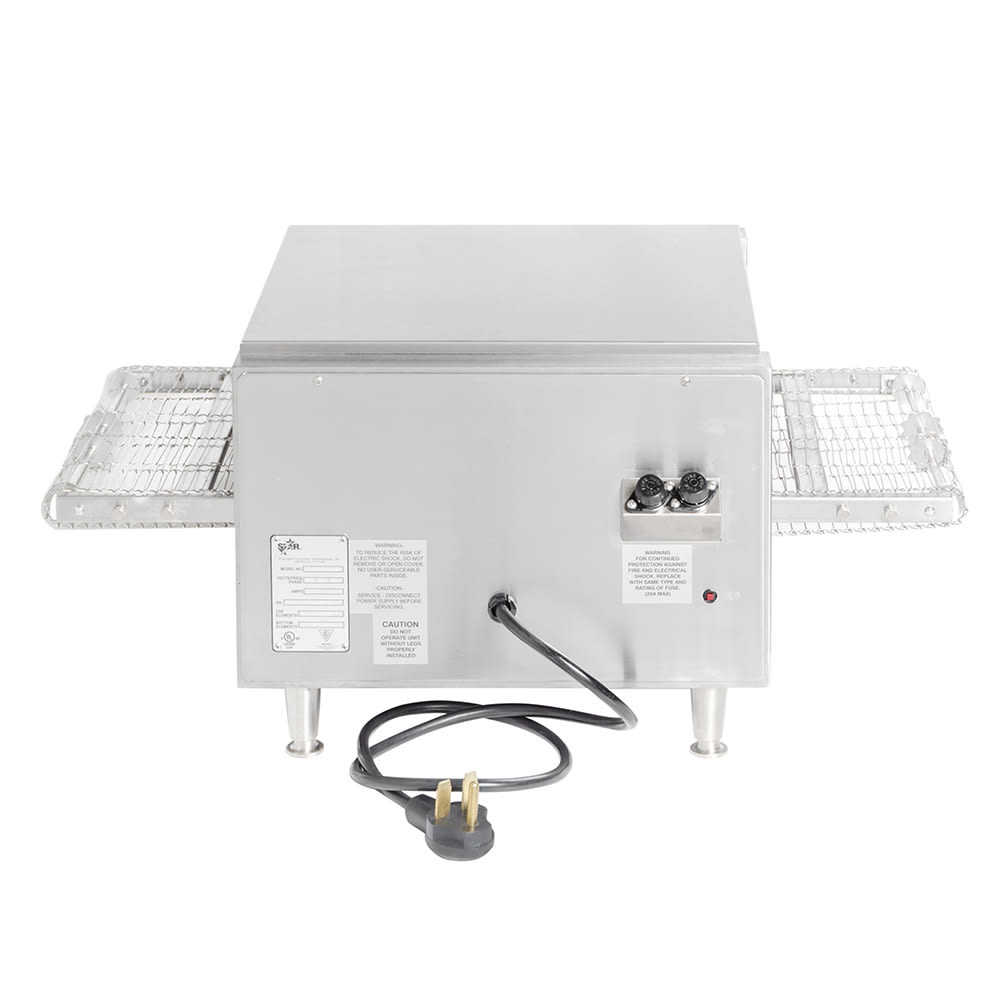

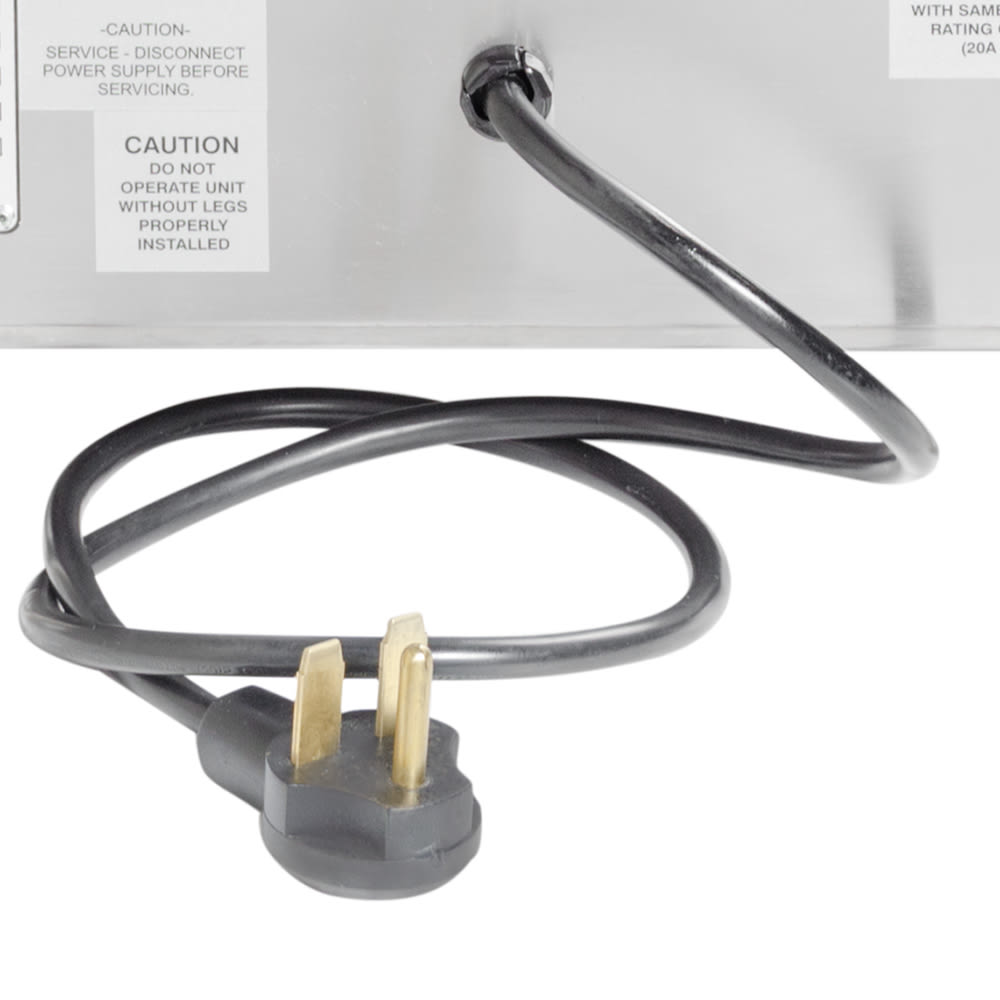

- 240 V/60 Hz/1 ph, NEMA 6-30P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Star 214HX within the 48 contiguous states.
From The Manufacturer
Star Miniveyor Conveyor Oven, electric, countertop, analog speed control, independent controls for top & bottom quartz sheathed heater elements, adjustable inlet/exit openings 1-1/2" - 3", 14.31" W belt, conveyor left-to-right standard, stainless steel construction, cULus, UL EPH Classified, Made in USA
Star 214HX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Belt Length (in) | 31 |
| Belt Width (in) | 14 |
| Controls | Manual |
| Heat | Electric |
| Heating Style | Convection |
| Hertz | 60 |
| Installation Type | Countertop |
| kW | 4 |
| Maximum Pizza Diameter | 14" |
| NEMA | 6-30P |
| Overall Length (in) | 36 |
| Overall Width (in) | 20 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Miniveyor® |
| Size | Single |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 66.00 |
