Star UM1850A 50" Electric Countertop Impinger Conveyor Oven - 240v/1ph
Using a belt motor and centrifugal fan, the Star UM1850A Ultra-Max® impingement conveyor oven delivers hot air to its 24 1⁄10-inch-long chamber, cooking product quicker than traditional ovens. As the...

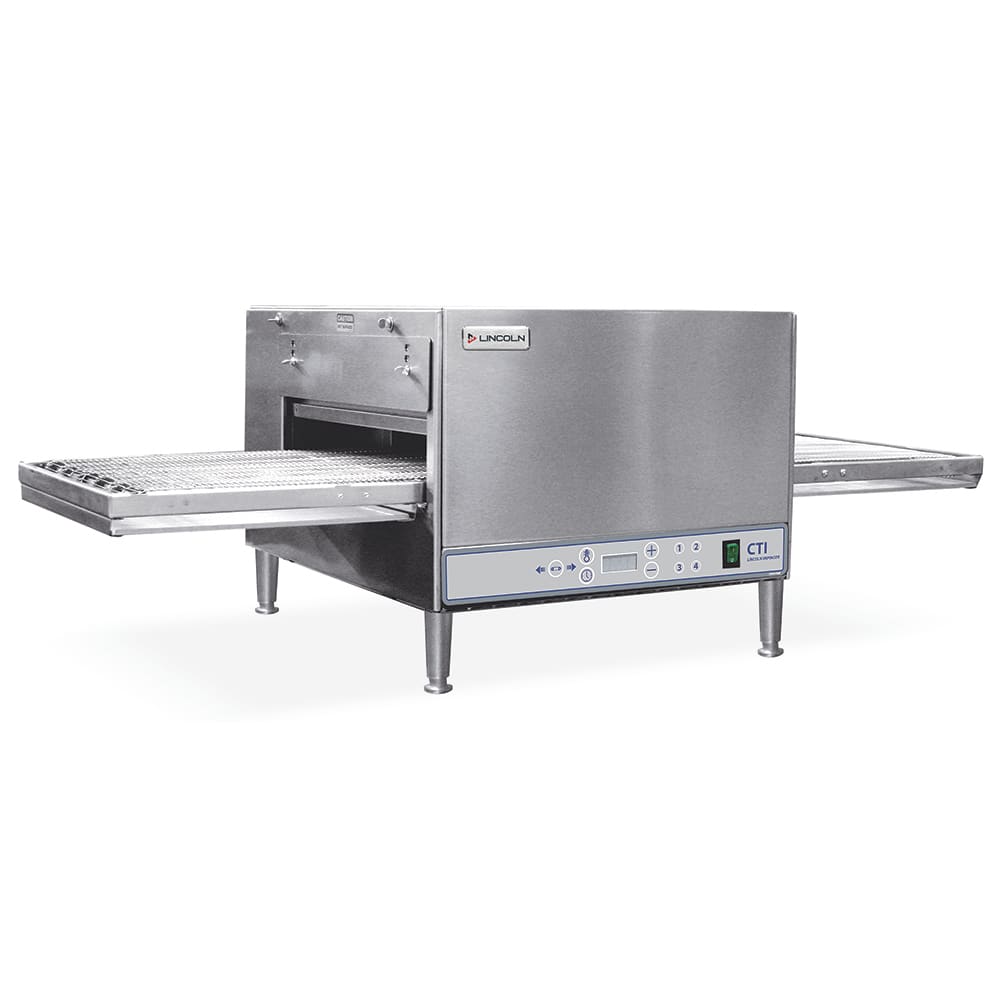

Lincoln 2502/1346 50" Countertop Impinger Conveyor Oven - 240v/1ph
Lincoln 2502/1346 Description
The Lincoln 2502/1346 countertop Impinger® conveyor oven cooks product with hot pressurized air. Since the air fingers send heat to the product from the top and bottom, cook times are quick. The self-contained heating system is easy to service since all the components are built together. Temperatures range from 200 to 550 degrees Fahrenheit. On the 50-inch conveyor, product is moved through a 20-inch oven, ensuring an even heat while improving product flow and reducing labor needs.
To meet varying demands, the speed and direction of the conveyor can be adjusted with the digital controls. Four preset menu buttons make the unit easy to operate. The controls provide the current time and temperature in the oven, and since they are located on the lower front, they are easy to access. Simplifying the cleaning process, the exterior of the Lincoln 2502/1346 countertop Impinger conveyor oven is made of stainless steel.
Product Details
- Hot pressurized air surrounds food to provide quick cook times and crispiness
- Air fingers provide air above and below the conveyor for even heat
- Removable fingers make cleanup easy
- Self-contained heating system is easy to service
- Temperatures range from 200-550 degrees F
- Stainless steel exterior construction resists corrosion and simplifies cleanup
- Crumb pans facilitate cleaning since they collect liquid and food particles
- (4) 4-in. legs provide ventilation
- Requires a 24-in. clearance on both sides from other equipment
- Requires a 6-in. clearance from combustible surfaces
50-in. Conveyor Features
- Product is moved through the 20-in. oven by the 50-in. conveyor belt
- Helps create an even heat for each item
- Improves product flow while reducing labor needs
- Flexible design glides through the oven easily
- Made of stainless steel to resist minor damage and corrosion
- Robust stepper motor is durable for commercial applications
- Can be removed for cleaning
Digital Controls
- Positioned on the lower front to make it easy to reach and use
- Controls can be programmed and adjusted to fit certain demands
- Speed and direction of the conveyor can be adjusted
- Easily make adjustments to the temperature
- Provides the current time and temperature
- Easy to operate with 4 preset menu buttons
- Convenient on/off switch
Dimensions & Utilities
- Conveyor: 50 in. L x 16 in. W
- Overall: 50 in. W x 31 1⁄4 in. D x 18 in. H
- 24 A, 6 kW
- 240 V/60 Hz/1 ph, NEMA 6-50P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Lincoln 2502/1346 within the 48 contiguous states.
From The Manufacturer
Lincoln Impinger® Countertop Oven, electric, single-deck, with extended 50" conveyor, digital controls, 240v/60/1-ph, 24.0 amps, 3 wires, 6.0 KW, cULus, UL EPH
Lincoln 2502/1346 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Lincoln |
| Belt Length (in) | 50 |
| Belt Width (in) | 20 |
| Heat | Electric |
| Hertz | 60 |
| NEMA | 6-50P |
| Phase | 1 |
| Product | Impinger Ovens |
| Product Type | Cooking Equipment |
| Series | Lincoln Impinger® |
| Stacking Options | Single |
| Type | Countertop |
| Voltage | 240 |
| Weight | 203.00 |
