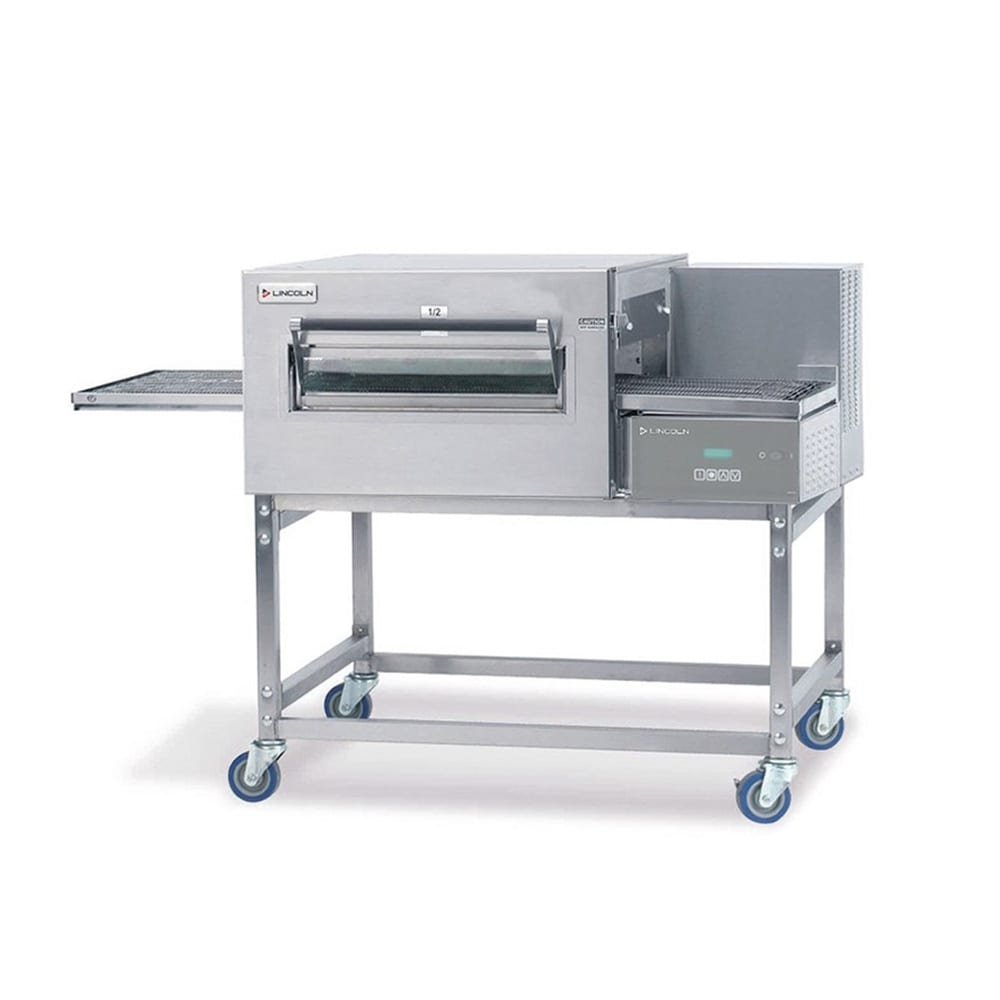

Lincoln 1117-000-U 56" Gas Impinger Conveyor Oven - Liquid Propane
Typically ships in 10 - 12 weeks
$17,047.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Lincoln 1117-000-U Description
The Lincoln 1117-000-U oven is a front-loading, single-deck unit that measures 56 inches wide by 39 inches deep by 42 inches high. Its sides, front, and top are made of stainless steel—a resilient metal that's simple to clean and corrosion resistant. Powered by LP gas, this unit has a total output of 40,000 BTUs. The direction of its conveyor can be reversed to accommodate different kitchen layouts.
To reduce the risk of burn injuries, the Lincoln 1117-000-U pizza oven's glass access door is fitted with a cool-touch handle. It features digital controls with an on/off switch as well as a fluorescent display that indicates temperature, belt speed, and diagnostic messages. Operators can adjust this unit's cook time between 1 and 30 minutes and its temperature range between 250 and 575 degrees Fahrenheit. If opting for the optional FastBake™ technology, users can expect faster cook times with no loss of quality or increase in noise.
- Part of the Lincoln Impinger® II series
- Front-loading, single-deck unit
- 18-in.-wide conveyor belt
- Top, front, and sides made of durable stainless steel
- FastBake technology (optional)
- 28-in.-wide baking chamber
- Temperature range: 250-575 degrees F
- Cook time range: 1-30 minutes
- Stackable up to 3 units high
- Front removable fingers
- Reversible conveyor direction
- Digital controls with on/off switch
- Glass access door with cool-touch handle
- Microprocessor-controlled bake time and conveyor switch
- Fluorescent display indicates temperature, belt speed, and diagnostic messages
- 40,000 BTU
- 56 in. W x 39 in. D x 42 in. H
- 7 A, 11.7 kW
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Lincoln 1117-000-U within the 48 contiguous states.
From The Manufacturer
Lincoln Impinger® II Conveyor Oven, LP Gas, front loading, single-deck, single conveyor belt, glass access window, now with easyTouch™ controls, FastBake™ technology optional, 120v/60/1, 15.0 amps, 40,000 BTU, cULus, CE, UL Classified, CSA Star, CSA Flame
Lincoln 1117-000-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Lincoln |
| Belt Length (in) | 56 |
| Belt Width (in) | 18 |
| Controls | Touch Screen |
| Gas Type | LP |
| Heat | Gas |
| Heating Style | Impingement |
| Hertz | 60 |
| Installation Type | Floor Model |
| Maximum Pizza Diameter | 16" |
| Overall Length (in) | 56 |
| Overall Width (in) | 39 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | Lincoln Impinger® II |
| Size | Single |
| Total BTU | 40000 |
| Voltage | 120 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship |
| Weight | 365.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Lincoln 1117-000-U Lincoln 1117-000-U 56" Gas Impinger Conveyor Oven - Liquid Propane Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $17,047.00 / Each | $20,494.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 10 - 12 weeks | |
| Overall Length (in) | 56 | 60.6 |
| Overall Width (in) | 39 | 39.3 |
| Belt Length (in) | 56 | 54 |
| Belt Width (in) | 18 | 18 |
| Size | Single | Single |
| Installation Type | Floor Model | Countertop |
| Rating | Best | Good |
| Heat | Gas | Gas |
| Heating Style | Impingement | Impingement |
| Gas Type | LP | NG |
| Total BTU | 40000 | 40000 |
| Voltage | 120 | 120 |
| Controls | Touch Screen | Digital |
| Series | Lincoln Impinger® II | Ultra-Max® |
| Warranty | 1-year Limited Against Defects in Material & Workmanship | 1-year Limited Parts & Labor |
