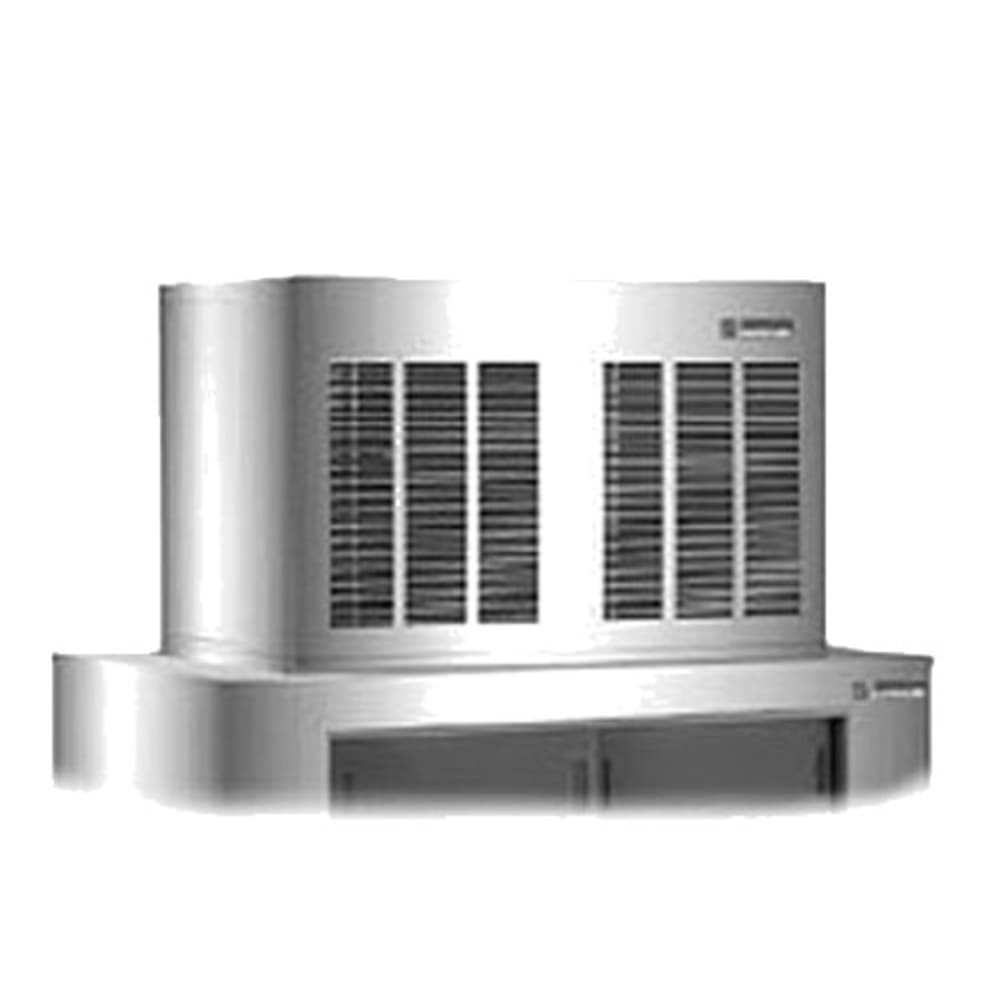

Scotsman FME2404RLS-32 42" Flake Ice Machine Head - 2365 lb/24 hr, Remote Cooled, 208/230v/1ph
Scotsman FME2404RLS-32 Description
Producing as much as 2,365 pounds of flake ice per day in optimized conditions, the Scotsman FME2404RLS-32 ice machine head is great for high-traffic operations that stock and sell a large volume of seafood or produce each day. This ice maker is designed to work with a remote condenser, which will need to be purchased separately. Operating with a remote condenser enables this unit to produce a large amount of ice with minimal noise and heat disruption in the customer-facing area of the business. With heavy-duty stainless steel construction, it withstands heavy use and resists dents, scratches, and rust.
To prevent gearbox strain, the Scotsman FME2404RLS-32 ice maker operates with a monitoring system that automatically shuts off the system if the gear box is overloading. Preventing no-water and low-water failures before they occur, this machine also features an electrical conductivity water sensor. With large, self-aligning spherical roller bearings and a double-flight auger, the system stands up under heavy production, and the gear box has a direct-drive design for reduced wear.
Product Details
- Creates flake style ice
- High-volume production suitable for large seafood and produce displays
- 2,365-lb. maximum daily ice production
- 2,000-lb. AHRI-certified daily ice production
- AutoSentryâ„¢ monitoring system moderates gearbox workload
- Water sensor prevents low- or no-water failures
- High-grade heavy-duty stainless-steel construction
- Large spherical roller bearings are self-aligning
- Double-flight auger evenly distributes loads
- Large plastic drain pan efficiently diverts water
- R-404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-120 PSI
- Ice bins and condenser are sold separately
Dimensions & Utilities
- 42 in. W x 24 in. D x 27 in. H
- 4.5 A
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman FME2404RLS-32 within the 48 contiguous states.
From The Manufacturer
Ice Maker, flake style, remote low side (condenser & compressor provided by others), production capacity up to 2365 lb/24 hours at 70°/50° (certified at 2000 lb at 90°/70°), AutoSentry™ monitoring system, stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 4.5 amps, NSF, cULus
Scotsman FME2404RLS-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 2365 |
| Amps | 4.5 |
| Cold Water (in) | 3/8 |
| Compressor Type | Remote Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Hertz | 60 |
| Ice Type | Flake |
| Indirect Waste Size (in) | 3/4 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Special Features | AutoSentryâ„¢ |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; Residential: 1-year Parts & Labor |
| Width (in) | 42 |
| Weight | 255.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman FME2404RLS-32 Scotsman FME2404RLS-32 42" Flake Ice Machine Head - 2365 lb/24 hr, Remote Cooled, 208/230v/1ph Current Item |
Ice-O-Matic MFI1506A90 Ice-O-Matic MFI1506A90 21" Flake Ice Machine Head - 1377 lb/24 hr, Air Cooled, 208-230v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $13,710.00 / Each | $14,280.00 / Each | $9,703.00 / Each | |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 6 - 8 weeks | ||
| 24 Hr. Production (lb) | 2365 | 2280 | 2169 | 1377 |
| Ice Type | Flake | Flake | Flake | Flake |
| Compressor Type | Remote Cooled | Remote Cooled | Remote Cooled | Air Cooled |
| Width (in) | 42 | 30 | 30 | 21 |
| Voltage | 208/230 | 115 | 208/230 | 208/230 |
| Warranty | 3-year Parts & Labor; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Compressor Parts |
