Scotsman F0522A-1 23" Prodigy Plus® Flake Ice Machine Head - 450 lb/24 hr, Air Cooled, 115v
Scotsman F0522A-1 Description
With AutoAlert™ indicator lights providing a straightforward, visible diagnostic, the Scotsman F0522A-1 ice machine head ensures user-friendly operation. This unit can produce as much as 450 pounds of soft flake ice per day in a small operational footprint; ice production depends on the ambient conditions, producing more if air and water are cooler. Flake ice can be used to present seafood and produce or in healthcare settings as a safe option for patients.
The Scotsman F0522A-1 ice maker can be cleaned and maintained with little trouble due to its stainless steel construction and front-located air filter on the self-aligning panel. Because the internal components are protected with an antimicrobial, bacteria growth is slowed between cleanings. Warranty history and service information can be accessed by scanning the unit’s included QR code.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 450-lb. maximum daily ice production
- 343-lb. AHRI-certified daily ice production
- Makes flake ice

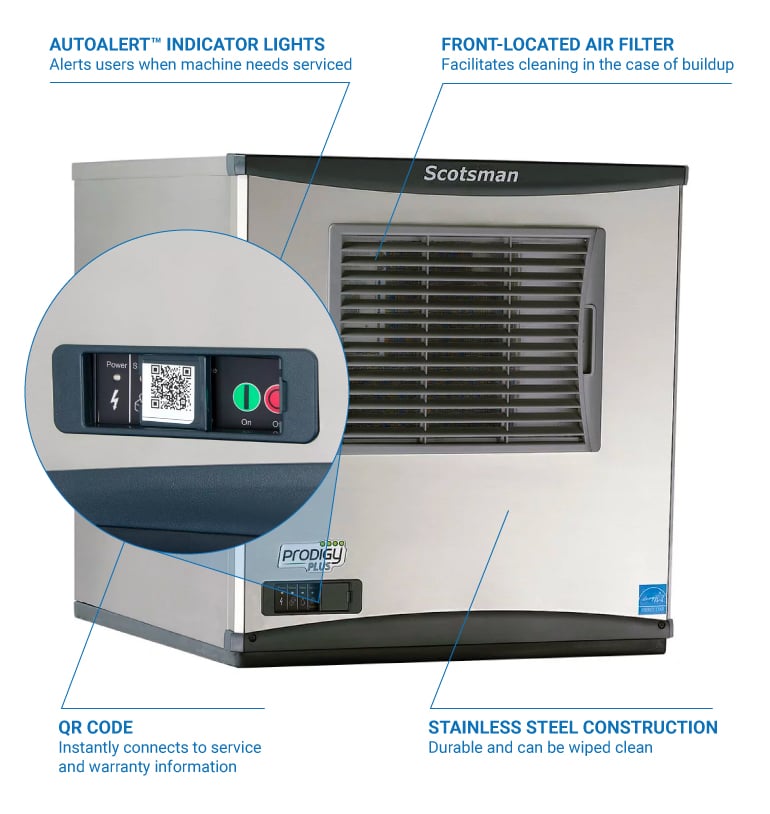

- Stainless steel construction for quick cleaning
- Internal surface guarded with antimicrobial protection
- Front-located air filter
- Front panel is self-aligned for control access
- QR code connects users to service and warranty information
- Indicator light tells users when service is needed
- Uses R404A refrigerant
- 5,000 BTU of heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
Product Features

Dimensions & Utilities
- 22 7⁄10 in. W x 24 23⁄25 in. D x 23 in. H
- 15.2 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman F0522A-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 450 lb/24 hours at 70°/50° (343 lb AHRI certified at 90°/70°), Auto-alert™ indicating lights, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, NSF, cULus
Scotsman F0522A-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 450 |
| Amps | 15.2 |
| Cold Water (in) | 3/8 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Hertz | 60 |
| Ice Type | Flake |
| Indirect Waste Size (in) | 3/4 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Series | Prodigy Plus® |
| Special Features | AutoAlert™ |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor, 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Width (in) | 23 |
| Weight | 173.00 |
