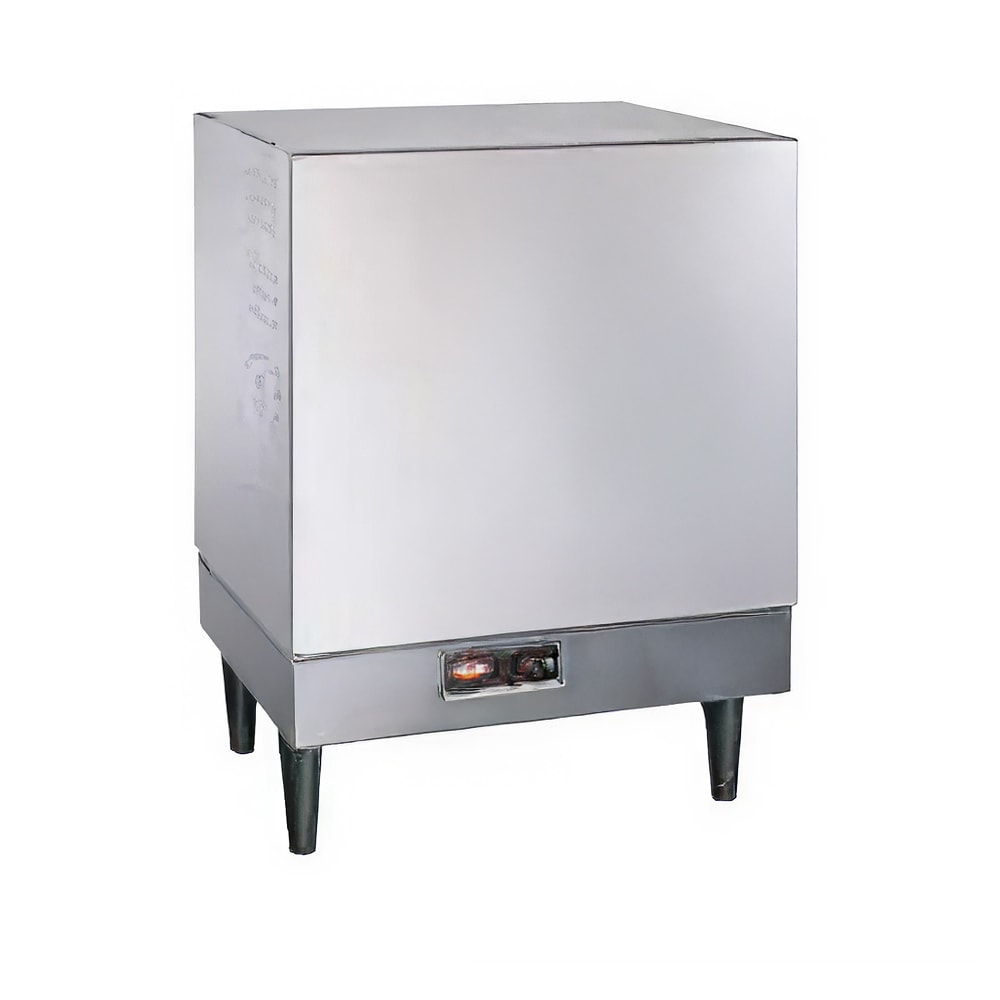

Hatco S-18 Imperial Booster Water Heater, 16 Gallon, 18 kW, 240v/1ph
Retail Price: $7,201.00
$3,960.55 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco S-18 Description
The Hatco S-18 Imperial booster heater heats water to a sanitary 180 degrees Fahrenheit, and the thermostat can also be set to 140 degrees for use with low-temp dishwashers. Heating is provided by multiple metal-sheathed elements to help prevent burnouts. Ambient compensating thermostats ensure the temperature is precise, and the unit has a built-in heat trap and fiberglass insulation to keep the heat contained.
Its tank can hold 16 gallons and has a Castone® lining to protect the components and add durability. There is a low-water cutoff to prevent burnouts from low water levels and a high-limit control to shut off power if the unit overheats. The Hatco S-18 Imperial booster heater has a durable exterior with a stainless steel front and hammertone body that stands on 6-inch-tall plastic legs. Maintenance can be performed with ease from the front.
- Heats water to 180 degrees F for sanitary washing
- Thermostat can be lowered to 140 degrees F for low-temp dishwashers
- 16-gal. capacity
- Castone lining resists corrosion to lengthen the service life
- Fiberglass insulation and built-in heat trap reduce heat loss to increase efficiency
- Electric, metal-sheathed heating elements are controlled with ambient compensating thermostats
- Heavy-duty stainless steel front and hammertone body
- Cover opens at the front to facilitate maintenance
- Water temperature recovery with a 40-degree F rise: 181 GPH
- Water temperature recovery with a 70-degree F rise: 103 GPH
- Low-water cutoff shuts off power to the heating elements when the water level is too low to protect against burnouts
- High-limit temperature switch shuts off power if the unit overheats
- On/off switch with a pilot indicator light
- Includes temperature/pressure relief and pressure reducing valves
- 6-in.-tall plastic legs elevate the unit off the floor
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 18 kW, 75 A
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-18 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph
Hatco S-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 181 |
| 70F Recovery (gph) | 103 |
| Amps | 75 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 18 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
