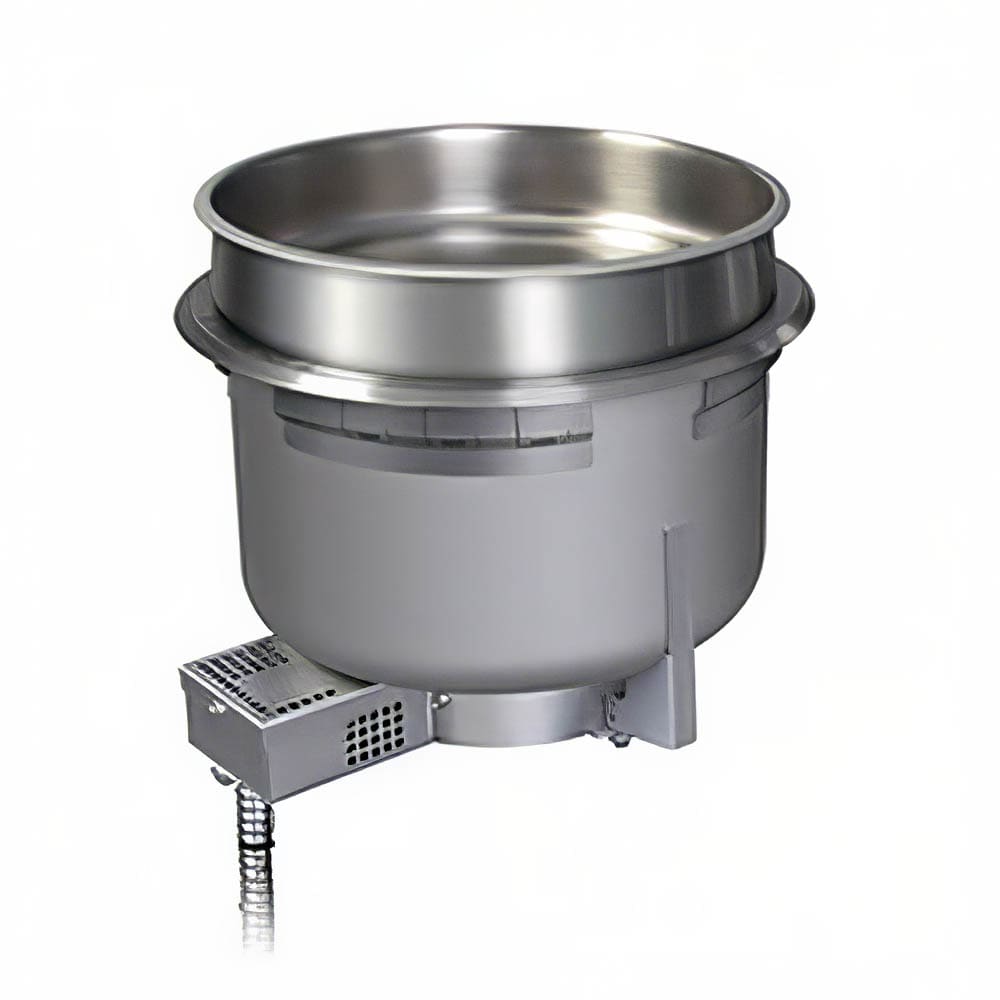

Hatco HWBHRT-11QTD 11 qt Drop In Soup Warmer w/ Thermostatic Controls, 208v/1ph
Retail Price: $933.00
$513.15 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 120V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco HWBHRT-11QTD Description
For installation into specifically designed steam tables, this Hatco HWBHRT-11QTD heated well measures 12 5⁄16 inches in diameter by 9 59⁄100 inches high and can be installed in a countertop cutout between 11 1⁄8 and 11 9⁄16 inches in diameter. Included EZ locking hardware expedites and simplifies installation. Its stainless and aluminized steel housing complements other equipment and retains its original look through repeated use because it resists denting, warping, and corroding. A 3⁄4-inch NPT drain built into its base expels residual water after wet operation.
The Hatco HWBHRT-11QTD circular soup warmer can hold 11 quarts of soup, chili, stew, curry, and sauce. Its metal-sheathed heating element generates ample heat to warm contents for extended periods. Users can preset temperatures on the remote thermostatic control's dial, and the thermostat maintains temperatures by monitoring actual temperatures and raising or lowering them as needed. Operators can gauge when the unit is in use when the on/off rocker switch is illuminated. This 2 3⁄4-inch-wide by 4-inch-high control panel can be installed in a 2 1⁄8-inch-wide by 3 3⁄8-inch-high cutout, and because it's attached to 36-inch lead cords, it can be installed remotely from the warmer.
- 11-qt. capacity
- Fabricator component only
- High-watt unit
- Metal-sheathed heating element
- Thermostatic control
- Lighted power rocker switch
- 36-in.-long lead cords for remote control panel installation
- Drop-in, top-mount configuration
- Aluminized and stainless steel housing
- Uninsulated
- Can be installed in a 13-in. x 13-in. to 13 1⁄4-in. x 13 1⁄4-in. cutout in a combustible countertop
- Can be installed in an 11 1⁄8- to 11 9⁄16-in.-diameter, non-combustible countertop cutout
- Includes EZ locking hardware
- Includes drain
- Control box can be installed into 2 1⁄8-in.-wide x 3 3⁄8-in.-high cutout
- Thermostatic control: 2 3⁄4 in. W x 4 in. H
- Overall: 12 5⁄16 in. dia. x 9 59⁄100 in. H
- 3.4 A, 715 W
- 208 V/60 Hz/1 ph
- 3⁄4-in. NPT drain
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HWBHRT-11QTD within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, with drain, round, non-insulated, top mounted, 11 quart, thermostatic controls with lit rocker switch & leads, stainless steel construction (high watt), cURus, 208v/60/1ph
Hatco HWBHRT-11QTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 11 |
| Controls | Thermostatic |
| Diameter (in) | 12.31 |
| Height (in) | 9.59 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | Wet or Dry |
| Special Features | With Drain |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 11.00 |
