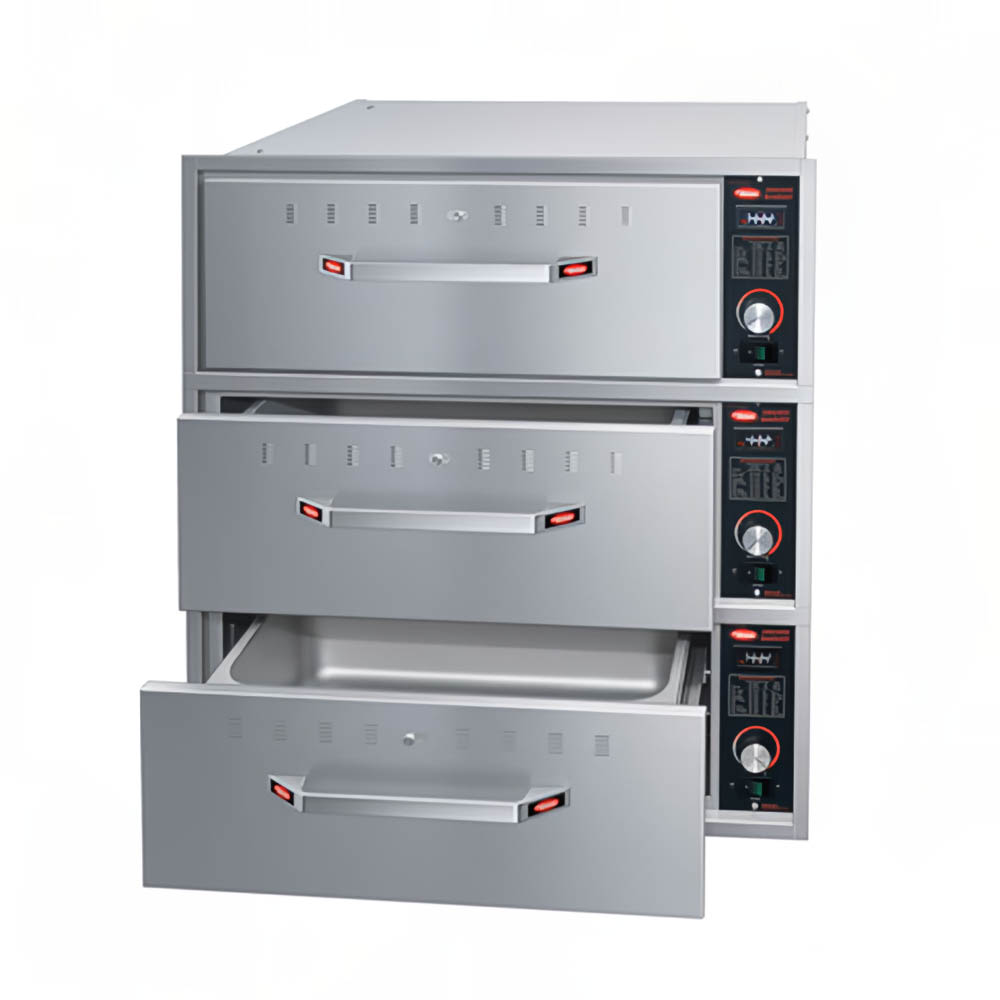

Hatco HDW-3BN 19.5"W Built In Warming Drawer w/ (3) 13" Compartments, 208v/1ph
Retail Price: $7,453.00
$4,099.15 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 120V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco HDW-3BN Description
For keeping prepared foods warm before serving, this Hatco HDW-3BN drawer warmer is divided into three drawers with individual thermostatic controls. Temperature monitors provide an accurate temperature readout, while each drawer's top, sides, and base are insulated to retain heat—even in cool settings. To improve air circulation and manage moisture levels, users can modify each drawer's adjustable side vents. In total, these drawers accommodate three standard 6-inch-deep food pans, which are included with this unit.
Because the Hatco HDW-3BN warming drawer unit is a narrow model, it measures 20 29⁄50 inches wide by 29 4⁄25 inches deep by 31 3⁄20 inches high. This unit can be installed into a 19.70-inch-wide by 28.38-inch-deep by 30 3⁄4-inch-high wall cutout to save floorspace. Its stainless steel exterior, interior, drawer slides, and assembly resist rust and corrosion and can simply be wiped clean. For smooth opening and closing, each drawer is furnished with nylon rollers that enable operators to pull the drawers out fully for pan loading and retrieval.
- Wall-mount unit with narrow design
- 3 drawers furnished with stainless steel drawer slides and nylon rollers
- Capacity: (3) 20 3⁄4-in. x 12 3⁄4-in. x 6-in. pans (included)
- Individual drawer control panels with recessed thermostatic controls, temperature monitors, and power switches
- Insulated drawer tops, sides, and bases
- Sliding vents can be adjusted for airflow and moisture control
- Made of resilient, rust- and corrosion-resistant stainless steel
- Can be installed in a 19 7⁄10-in.-wide x 28 3⁄8-in.-deep x 30 3⁄4-in.-high wall cutout
- 20 29⁄50 in. W x 29 4⁄25 in. D x 31 3⁄20 in. H
- 6.5 A, 1350 W
- 208 V/60 Hz/1 ph, hardwired with 4-ft. flexible conduit
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HDW-3BN within the 48 contiguous states.
From The Manufacturer
Warming Drawer Unit, Built-in, narrow, three drawers, includes (1) standard 6" deep food pan per drawer, stainless steel construction, thermostatic controls , NSF, cULus, Made in USA
Hatco HDW-3BN Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Controls | Thermostatic |
| Depth (in) | 26.75 |
| Design | Stationary |
| Doors | Drawers |
| Drawer Style | Narrow |
| Exterior Construction | Stainless Steel |
| Height (in) | 30.13 |
| Hertz | 60 |
| Installation Type | Built In |
| Interior Width (in) | 13 |
| kW | 1.3 |
| No. of Compartments | 3 |
| Overall Width (in) | 19.5 |
| Phase | 1 |
| Product | Warming Drawers |
| Product Type | Food Warming Equipment |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Width (in) | 19.5 |
| Weight | 232.00 |
