Hatco CWBX-2 32" Drop-In Refrigerator w/ (2) Pan Capacity, Remote, 120v

KaTom #: 042-CWBX2 • MPN: CWBX-2 120
  • 042-CWBX2 Primary Thumbnail Image
Free Shipping Item

Retail Price: $6,504.00

$3,577.20 /Each

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Mikaiyla Steffens User Image
Ask a Foodservice Equipment Specialist

Hatco CWBX-2 Description

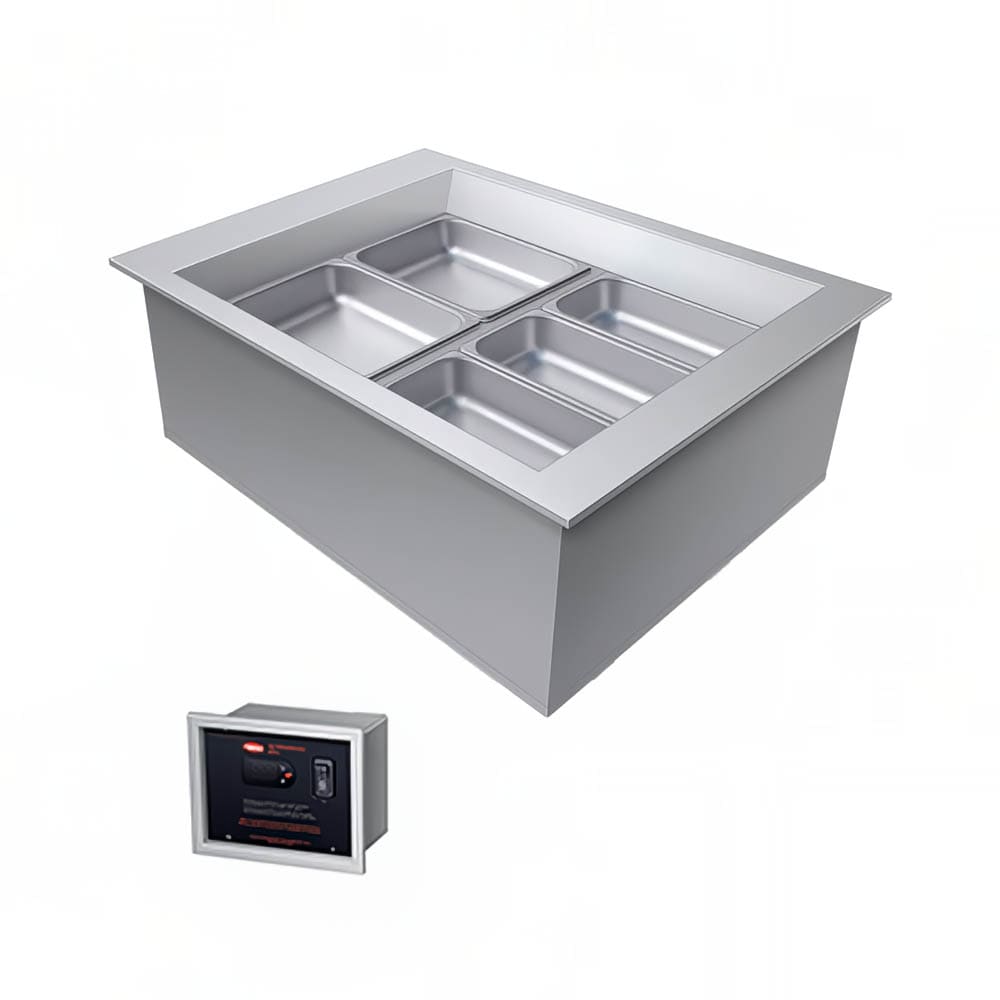

Because the Hatco CWBX-2 drop-in food well doesn't include a condenser, it can be incorporated into multi-well setups in buffets, hotels, or banquet halls. This 32-inch-wide by 27-inch-deep by 17 1⁄20-inch-tall unit accommodates two full-size food pans and can be dropped in a cutout as large as 31 inches wide by 26 inches deep for a sleek, streamlined appearance. To create a convenient workspace, its electronic control panel ships loose with 9-foot-long probe wires that enable remote installation. This aluminized steel unit resists corrosion, withstands high-volume front- or back-of-house use, and matches other Hatco food wells for a cohesive display. For quick cleanup after use, it features a 1-inch NPT brass drain.

The Hatco CWBX-2 refrigerated food well is built with a cold-wall construction that uses R-513A refrigerant to hold prechilled appetizers, entrees, sides, or desserts at safe temperatures. For uniform chill distribution, it features a uniquely angled interior wall that allows cool air to blanket the pans. Because its sides and base are insulated, it minimizes energy consumption and retains temperatures even in warm ambient environments. As menus rotate, staff can adjust temperature with the electronic control. This panel features an automatic defrost mechanism that can remove icy buildup to preserve product quality and reduce temperature fluctuations.

  • Capacity: (2) 12-in. x 20-in. full-size food pans
  • Top-mount, drop-in unit
  • Minimum cutout dimensions: 30 13⁄100 in. W x 25 19⁄100 in. D
  • Maximum cutout dimensions: 31 in. W x 26 in. D
  • Corrosion-resistant aluminized housing
  • Stainless steel bezel
  • Angled interior wall enhances air circulation
  • Base and sides built with eco-friendly insulation
  • R-513A refrigerant
  • Automatic defrost
  • Electronic control panel with 9-ft.-long probe wires for remote installation
  • Condenser not included
  • 1-in. NPT brass drain
  • 630-BTU evaporator load

  • 32 in. W x 27 in. D x 17 1⁄20 in. H
  • 120 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hatco CWBX-2 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Drop-In Refrigerated Well, (2) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, remote refrigeration, control panel & TXV valve (shipped loose), insulated with 1" drain, aluminized steel housing, stainless steel bezel, with control panel, utilizes R-404A refrigerant, WITHOUT condensing unit, cULus, 120v/60/1ph

Warranty Icon
1-year Parts; 5-year Compressor Parts

Hatco CWBX-2 Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
