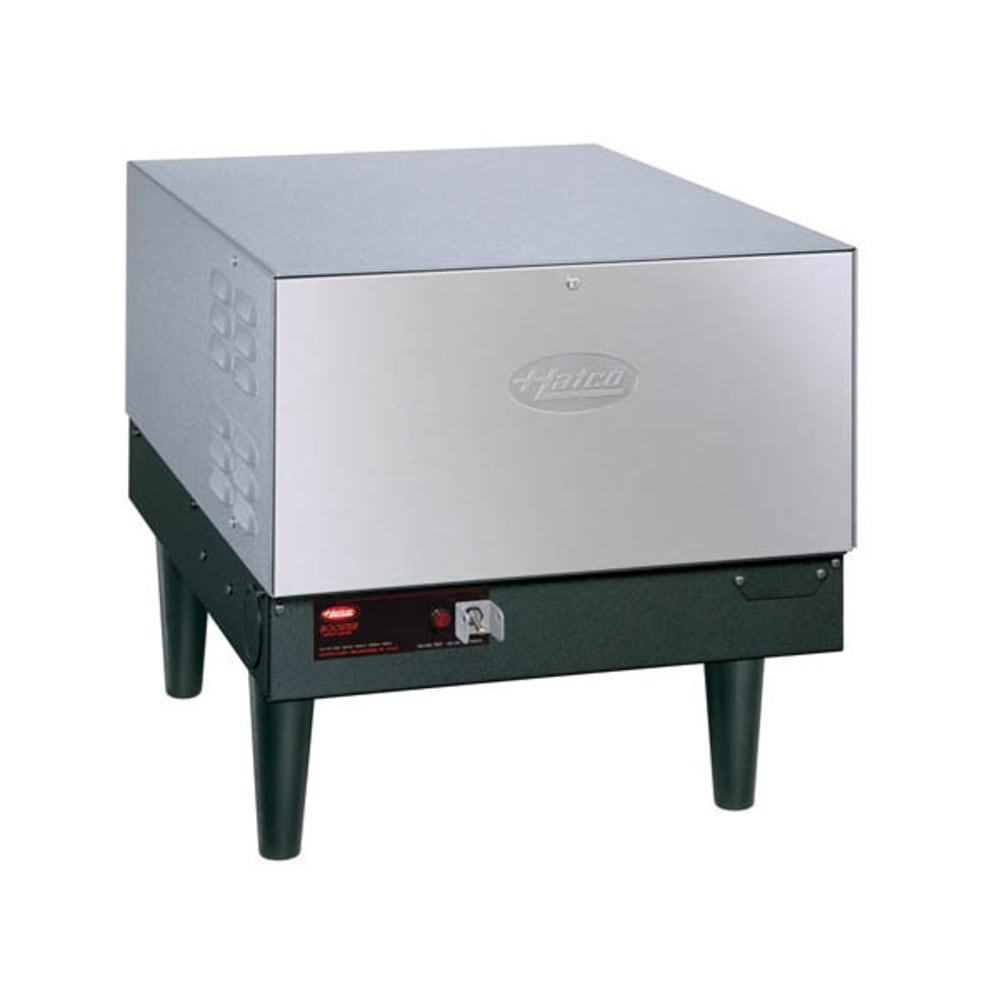

Hatco C-57 Compact Booster Water Heater, 6 Gallon, 57 kW, 240v/3ph

Completely pre-wired and pre-plumbed at the factory, the Hatco C-57 compact booster water heater can be conveniently installed on 6-inch legs or mounted with sliding brackets that are sold separately. The swinging stainless steel front panel opens to reveal probes and elements for quick maintenance access, and it is made of silver powder-coated hammertone with fiberglass insulation to trap in heat. Lined with Castone®, the tank is resistant to limestone buildup.

Monitored by a calibrated immersion thermostat and two gauges, the Hatco C-57 compact booster water heater provides water temperatures of 180 degrees Fahrenheit to properly sanitize dishes and flatware. The pilot indicator light alerts users if this unit needs to be adjusted, while the temperature relief valve and the pressure reducing valve keep it running properly. For safety purposes, the low-water cut-off ensures that elements do not burn out, and a high-temperature limit is enforced as well.

Product Details

• 6-gal. capacity
• Maximum 573 GPH at 40-degree-F rise
• Maximum 326 GPH at 70-degree-F rise
• Provides 180-degree-F sanitizing water
• Limestone-resistant Castone-lined tank
• Hammertone body powder-coated with silver
• Fiberglass insulation retains heat
• Stainless steel front panel
• Panel swings out to uncover probes and elements for maintenance
• 6-in. legs
• Slide mounting brackets available (not included)
• Pressure reducing valve
• High-temperature limit control
• Calibrated immersion thermostat
• Temperature relief valve
• Pilot indicator light
• 2 pressure gauges
• On/off switch
• Low-water cut-off
• Fittings for water inlet and outlet
• 3⁄4-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
• 137.2 A, 57 kW
• 240 V/60 Hz/3 ph
