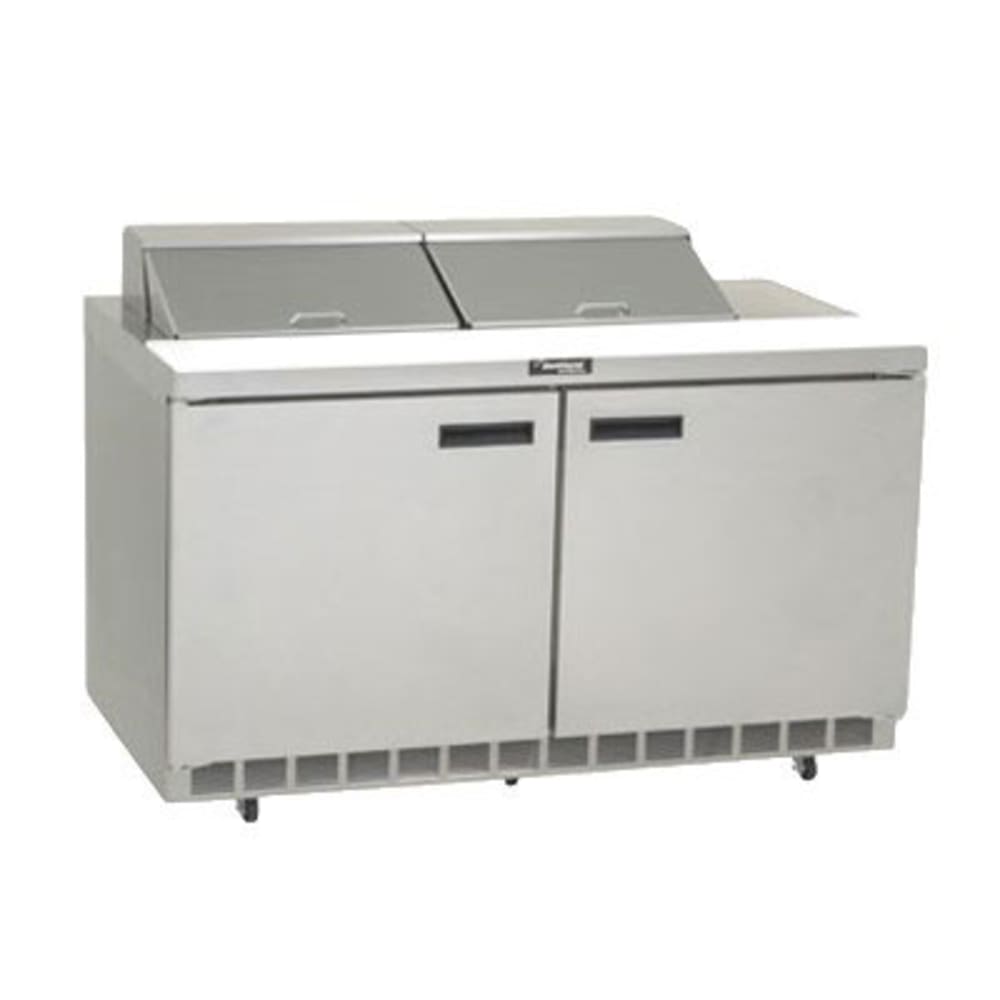

60" Sandwich/Salad Top
Refrigerator Top, 12 Pan
Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS OPTIONS & ACCESSORIES:
-
Flat lift off covers
-
4″ x 2″ stainless steel backsplash
-
18″ wide single tier overshelf
-
Stainless steel back
-
Plastic laminate on front
-
Additional wire shelves
-
Door lock
-
*220V/50 Hertz electrical system
* Inclusion of this option will alter
electrical specifications of the unit.
Features, Options & Specifications
Subject to Change Without Notice
|
STANDARD FEATURES:
-
Exterior Top is one-piece 22-gauge stainless steel with integral 2.12″ (5.1cm) square nosing at the front. Top has openings to accept 8 or 12 1/6-size 4″- 6″ (10.2cm - 15.2cm) deep plastic pans. Adapter bars and 1/6 pans are supplied by Delfield. Temperature in top opening to maintain 33°F (1°C) to 41°F (5°C), with pans recessed 2.5″ (6.4cm) at 86°F ambient room temperature, meeting NSF 7 requirements. One 60″ x 10″ x .5″ (152cm x 25.4cm x 1.3cm) plastic cutting board is mounted on the the top at the front edge.
-
Exterior back and bottom are two piece 24-gauge galvanized steel. Exterior ends are stainless steel..
-
Interior Sides are thermoformed ABS plastic with integral shelf supports. Base is fully insulated with high- density foamed in place polyurethane.
-
Door has a 22-gauge stainless steel exterior, with thermoformed ABS plastic interior liner. Cabinet is supplied with one adjustable epoxy-coated wire shelf per door opening.
-
Refrigeration uses HFC-404A refrigerant. Compressor is 1/2 H.P., with condenser coil and condensate evaporator mounted on rear of the cabinet. Evaporator coils and temperature control are located on the interior rear wall of the cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior cabinet temperature of 36°F to 40°F (2°C to 4°C).
-
Electrical connection is 115 volt, 60 Hertz, single phase. Unit has an 8″ (2.4m) long electrical cord and NEMA 5-15P plug.
-
Casters: Equipment is mounted on 2″ (5.08cm) diameter plate casters with front two locking. Equipment clearance above the floor is 2.5″ (6.35cm).
-
Drawers have 22-gauge stainless steel exterior with thermoformed ABS plastic interior liner. Drawer frames are 14-gauge stainless steel. Drawer slides are 14-gauge stainless steel with stainless steel bearings. Each top drawer holds one 12″ x 20″ (30.5cm x 50.8cm) pan 4″ -6″ (10.1cm-15.2cm) deep. Each bottom drawer holds one 12″ x 20″ (30.5cm x 50.8cm) pan 4″ (10.1cm) deep. Pans are supplied by others.
|
