Jet Tech F-16DP High Temp Rack Undercounter Glass Washer w/ 24 Racks/hr Capacity - Built-in Booster, 208-240v/1ph

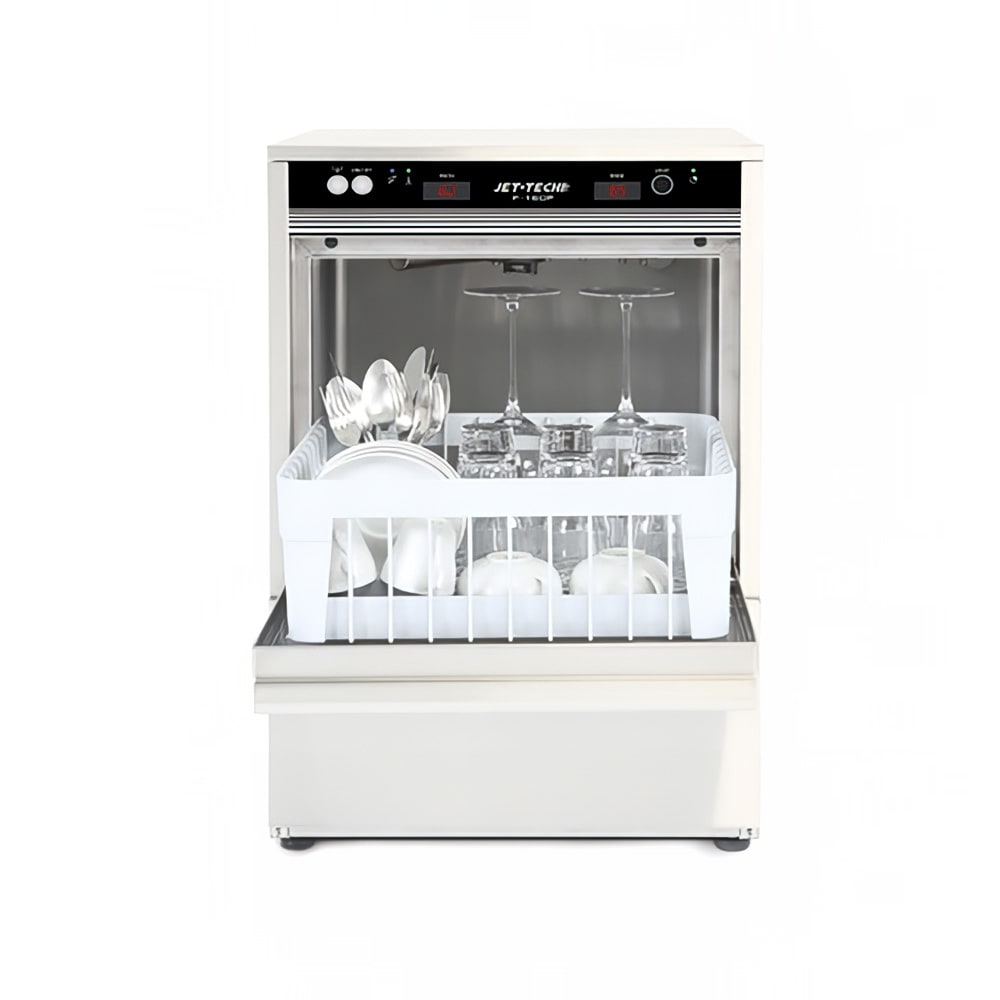

Jet Tech F-16DP Description
The Jet Tech F-16DP high-temp undercounter dishwasher is perfect for back bar areas or small establishments that do not produce large amounts of dirty dishes. A 16-compartment, angled glassware rack and open rack are included for a variety of dish types. Most of the unit is made of stainless steel for durability and rust resistance. The panels are insulated to minimize noise and retain heat, and absorption is lessened by the alternating heat resistors. If the motor pump gets too hot, thermal overload protection turns the machine off.
This dishwasher comes with a 3-gallon wash tank and has a wash temperature of 150 degrees Fahrenheit. Digital gauges enable the operator to monitor the wash and rinse temperatures. The wash cycle is 145 seconds with a 15 second rinse cycle. To ensure the water reaches its ideal temperature, a 79⁄100-gallon booster heater is built into the Jet Tech F-16DP high-temp undercounter dishwasher. It has insulated lining to retain heat so water reaches temperature quickly. Its temperature ranges from 185 to 194 degrees Fahrenheit.
Product Details
- Angled glassware rack is included with (16) 4-in. x 4-in. compartments
- 15 3⁄4-in. x 15 3⁄4-in. open rack can hold cups, bowls, and large utensils
- Durable stainless steel construction
- Double-wall insulated panels reduce noise levels
- Stainless steel upper and lower wash arms remove for cleanup
- Absorption is reduced by the alternating heat resistors
- 10-in. door opening
- Automatic fill and water level are regulated
- Easily access the control panel since it slides out
- Thermal overload protection on the motor pump shuts the unit down if it gets too hot
Product Features
Booster Heater and Wash Pump
- 3-gal. wash tank capacity
- 150-degree F wash temperature
- 145-sec. wash cycle
- 15-sec. rinse cycle
- Digital gauges for wash and rinse temperatures
- Safety micro-switch on the door stops the wash pump when it is opened
- 0.79-gal. booster capacity
- Booster water temperature range: 185-194 degrees F
- Booster heater has insulated lining to retain heat
- Individual heating elements alternate between the booster and the wash tank
- Wash tank element is protected by a stainless steel shield
Dimensions & Utilities
- 20 1⁄4 in. W x 20 1⁄4 in. D x 29 3⁄4 in. H
- 12.9 A, 1⁄2 HP
- 208-240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jet Tech F-16DP within the 48 contiguous states.
From The Manufacturer
Jet-Tech Glasswasher, undercounter, door type, 20-1/4"W x 20-1/4"D x 29-3/4"H, double-wall stainless steel construction, high temperature with built-in electric booster, fully automatic, (24) racks/hr, 10" maximum glass height, integrated front control panel with analog temperature gauges, built-in detergent & rinse additive pump, built-in auto-drain pump, automatic fill, includes:(1) flat 16" x 16" rack & (1) 16" x 16" (16) compartment angled glassware rack, 2.4 kW booster heater, 1/2 HP wash pump, cETLus, ETL-Sanitation
Jet Tech F-16DP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jet Tech |
| Cycle Period | 2 min 40 sec |
| Depth (in) | 20.25 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 864 |
| Height (in) | 29.75 |
| Hertz | 60 |
| Includes | (2) Racks |
| Phase | 1 |
| Product | Glass Washers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 24 |
| Rating | Good |
| Series | F Series |
| Special Features | Built In Booster |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 3/4 |
| Water Outlet (in) | 1 |
| Width (in) | 20.25 |
| Weight | 116.00 |
