InSinkErator SS-1000-6-CC101 Disposer Package w/ #6-Adapter & CC101 Panel, 10-HP, 460/3 V
Retail Price: $16,617.60
$9,090.80 /Each
Selected Voltage: 460V, 3 Phase
| 460V, 3 Phase |
| 208V, 3 Phase |
| 230V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 06-15-2026 to save before the price increases!
InSinkErator SS-1000-6-CC101 Description

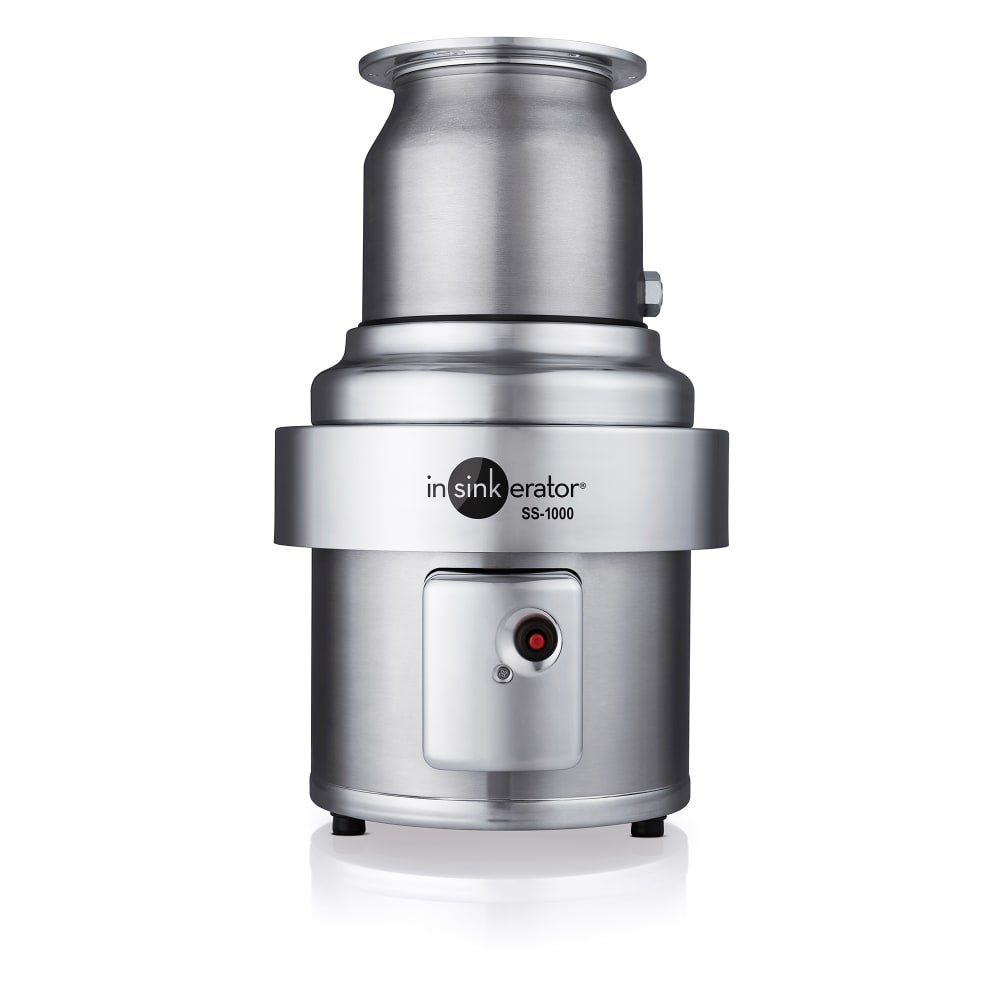

The InSinkErator SS-1000-6-CC101 disposer package comes with a syphon breaker, solenoid valve, flow control valve, and a programmable CC101 control panel offering reversing, timed run, and post flush modes. Built for trough installation, it uses a No. 6 collar adaptor and a 6 5⁄8-inch diameter inlet. The corrosion-resistant stainless steel grind chamber is paired with stationary and rotating shredding elements made of nickel chrome alloy, configured for reverse-action grinding to prolong component life. Power comes from a 10-horsepower induction motor operating at 1,725 RPM, housed in a fully enclosed casing that resists moisture and uses internal airflow cooling alongside thermal overload protection. To reduce operational shock, the unit incorporates double-tapered Timken roller bearings, while a triple-lip seal and spring-loaded oil seal help keep water and grease out of the motor. A chrome-plated, paint-free exterior and a 3⁄4-inch rubber mounting with chrome-plated covers add durability and sanitation benefits.
- Part of the SS Series
- Includes syphon breaker, solenoid valve, and flow control valve

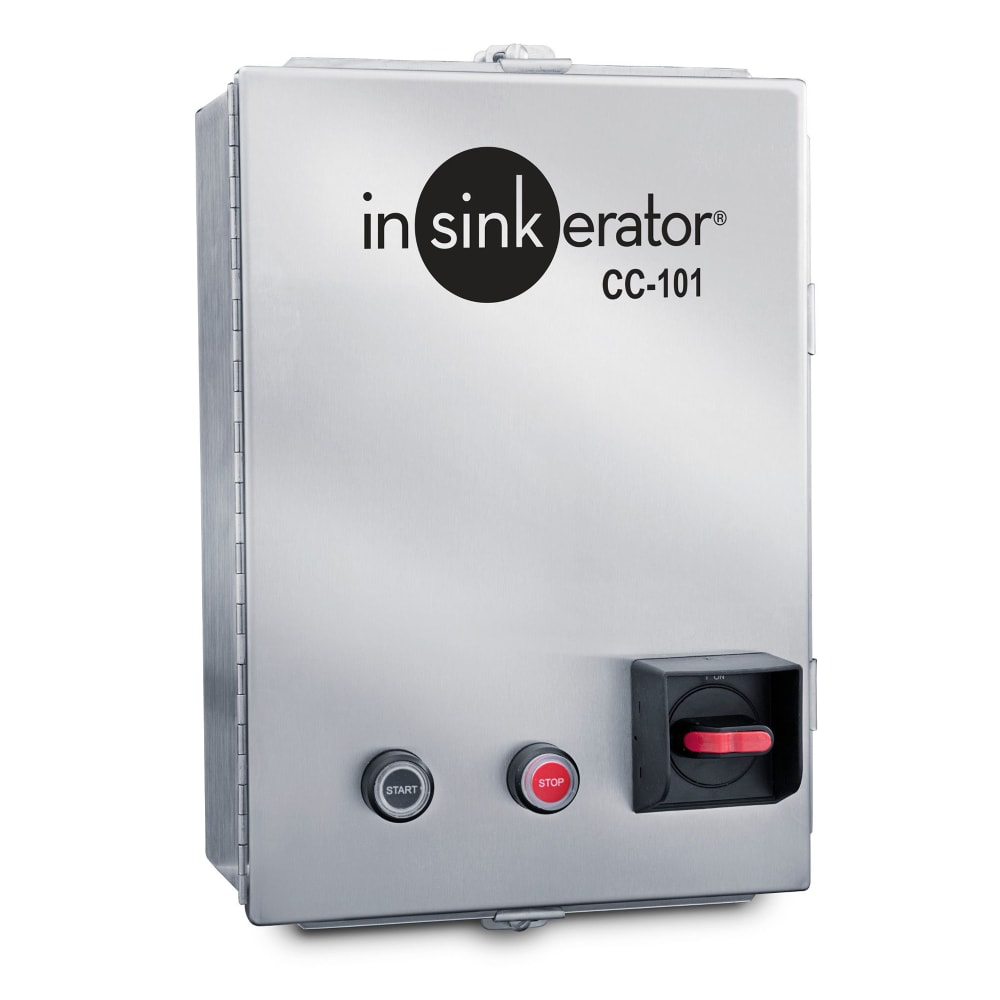

- Programmable CC101 control panel: reversing, timed run, post flush
- No. 6 collar adaptor for trough installation
- 6 5⁄8-in. diameter inlet
- Corrosion-resistant stainless steel grind chamber
- Nickel chrome alloy shredding elements for reverse grinding
- 10 HP induction motor at 1,725 RPM
- Fully enclosed motor housing with moisture protection
- Internal airflow cooling and thermal overload protection
- Double-tapered Timken roller bearings reduce vibration
- Triple-lip and spring-loaded oil seals protect motor
- Chrome-plated, paint-free exterior for sanitation
- 3⁄4" rubber mounting and chrome-plated covers
- 10 HP
- 460 V / 60 Hz / 3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on InSinkErator SS-1000-6-CC101 within the 48 contiguous states.
From The Manufacturer
Complete Disposer Package, trough mount system, 6 5/8" diameter inlet, with #6 collar adaptor for trough installation, 10 HP motor, stainless construction, includes syphon breaker, solenoid valve, flow control valve, programmable CC101 control panel, auto reversing, timed run, post flush. Contact customer service for option pricing.
InSinkErator SS-1000-6-CC101 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | InSinkErator |
| HP | 10 |
| Usage Level | Heavy Duty |
| Warranty | 1-year Parts & Labor |
| Weight | 170.00 |
