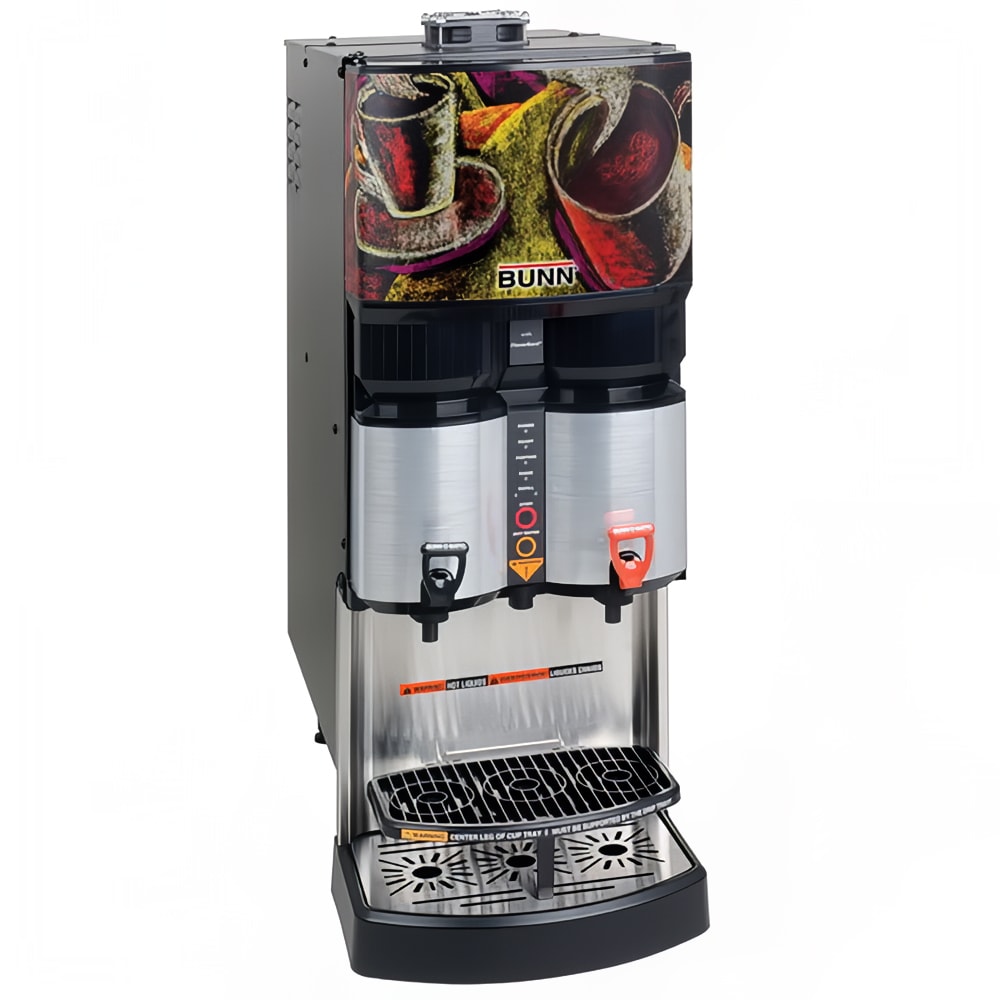

LCA-2 Liquid Coffee Ambient Dispenser, Scholle 1910LX Connector, 45:1-100:1

Bunn-o-Matic - Model 021-344000001

SKU: 34400.0001
Shipping Weight: 83.00lbs.
Sold As: Each

Warranty restrictions may apply. Contact Customer Service for additional details.


021-344000001

Image may not depict product color, inclusions, or accessories.


View Larger

Bookmark and Share

KaTom Price: $1,803.00

Retail Price: $3,606.00

You Save: 50%


Sales tax to be added where applicable.

Features:

  • Attractive appearance and narrow 12" (30.5 cm) width.
  • Dispense over 125 - 5 oz. (148 ml) cups per hour with a 120 volt, 15 amp electrical connection.
  • Uses 1/2 gallon (1.9 liters) and most 1 gallon (3.8 liters) bag-in-box (BIB) containers.
  • Insulated product cabinet assures maximum product life.
  • Refill or rinse LED lights alert the operator for concentrate or cleaning.
  • FlavorGard technology continuously monitors extract-to-water ratio and assures flavor consistency.
  • Easy-to-program one touch portion control model available.
  • Sanitation listed by ETL to NSF Standard 18 and safety listed by ETL to UL Standard (UL 197) and CSA Standard (C22.2 No. 109 - model LCR-2C)
  • This product typically ships in 5 - 10 days.
  • Features, Options & Specifications Subject to Change Without Notice.

Back to top

Product Specifications

  • Printable Spec Sheet
  • Crated Weight: 83.00 lbs.
  • Brewing Source: Liquid Coffee Concentrate
  • Capacity: 125 - 5 oz/ hr
  • Category: High Volume Coffee Systems
  • Concentrate Requirements: Room Temperature
  • Connector: Scholle 1910LX
  • Height (in): 30
  • Manufacturer: Bunn-o-Matic
  • Also Known As: LCA-2, 34400.0001, LCA 2, 344000001 LCA2, 34400-0001, BUNLCA-2, 234LCA-2
  • Manufacturer Part Number (MPN): 34400.0001
  • Bunn Model: LCA-2
  • Product #: 34400.0001
  • *Product Ratio 1.8 oz: 45:1 - 100:1
  • *Product Ratio 2.5 oz: 65:1 - 100:1
  • Connector Type: Scholle 1910LX
  • Volts: 120
  • Amps: 14.2
  • Heater Watts: 1500
  • Cord Attached: Yes (NEMA 5-15P)
  • Dimensions: 30" H x 12.2" W x 24.9" D
  • *Unit shipped with dispense rate set at 1.8 oz./sec. Dispense rate increases to 2.5 oz./sec. if restrictor plug is removed.
  • Electrical: Model requires 2-wires grounded service rated 120V, single phase, 60 Hz.
  • Plumbing: 20-90 psi (138-621 kPa) from a 3/8" (10 mm) or larger supply line. Unit requires a 2.2 GPM line flow capacity. A shut-off valve should be installed in the line before the unit. Install a regulator in line when pressure is greater than 90 psi to reduce pressure to 50 psi. Supplied with 3/8" (10 mm) male flare fitting.
