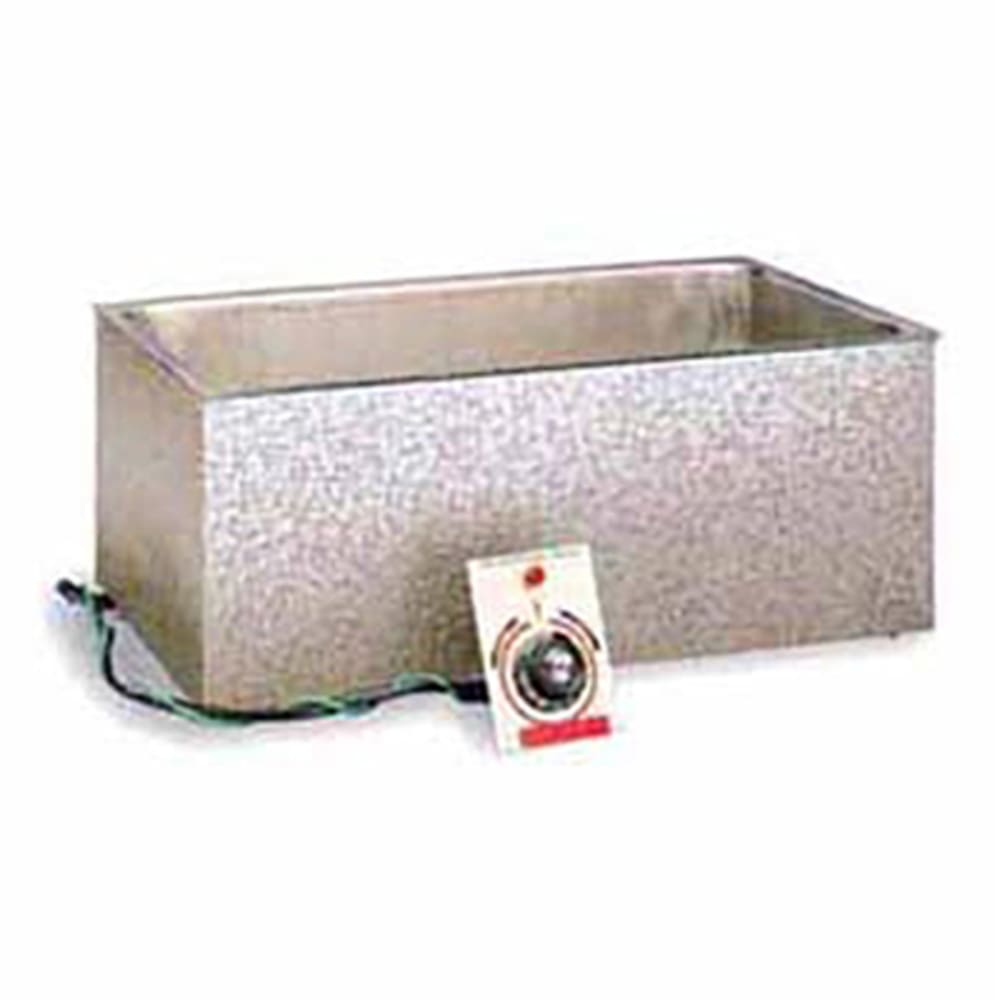

APW Wyott BM-80D Bottom-Mount Hot Food Well w/ (1) Full Size Pan Capacity, 208v/1ph

Made of deep-drawn austenite stainless steel, the APW Wyott BM-80D drop-in hot food well is insulated and has a rectangular, heavy-duty bottom. This unit is designed for installation in a metal countertop and is heated by a serpentine-shaped, tubular Calrod® element for even heat distribution to the pan base. For optimal efficiency, the element is mounted under the well and secured by an aluminized reflector shield. Users can access the heating elements conveniently; the thermostatic control provides fast heat recovery. Durable for high-volume use, this well has a large pilot light that facilitates ignition.

Multiple APW Wyott BM-80D hot food wells may be installed in the same counter or table, each accommodating one full-size steam pan or several combinations of fractional-sized pans. There is a 13⁄16-inch flange on the top edge of this unit, while the ideal flange turndown is 3⁄4 of an inch. In terms of food safety, this unit keeps hot food hot, which is just as important as keeping cold food cold, ensuring quality meal service.

Product Details

• Constructed of deep-drawn austenite stainless steel
• Fully insulated aluminized steel outer housing
• Serpentine-shaped, tubular Calrod element for distributing even heat to pan base
• Element mounted under well
• Aluminized reflector shield secures heating element
• Conveniently accessible heating elements
• Thermostatic control with 36-in. capillary
• Large pilot indicator light
• Built-in, 1⁄2-in. NPT drain
• Multiple units may be installed in same metal counter or table
• 13⁄16-in. flange on top edge of unit
• Ideal flange turndown is 3⁄4 in.
• Fits 11 7⁄8-in. x 19 7⁄8-in. cutout

Dimensions & Utilities

• Interior: 12 3⁄16 in. W x 20 1⁄8 in. D x 6 1⁄4 in. H
• Overall: 13 13⁄16 in. W x 21 3⁄4 in. D x 8 5⁄16 in. H
• 7.7 A, 1600 W
• 208 V/60 Hz/1 ph
