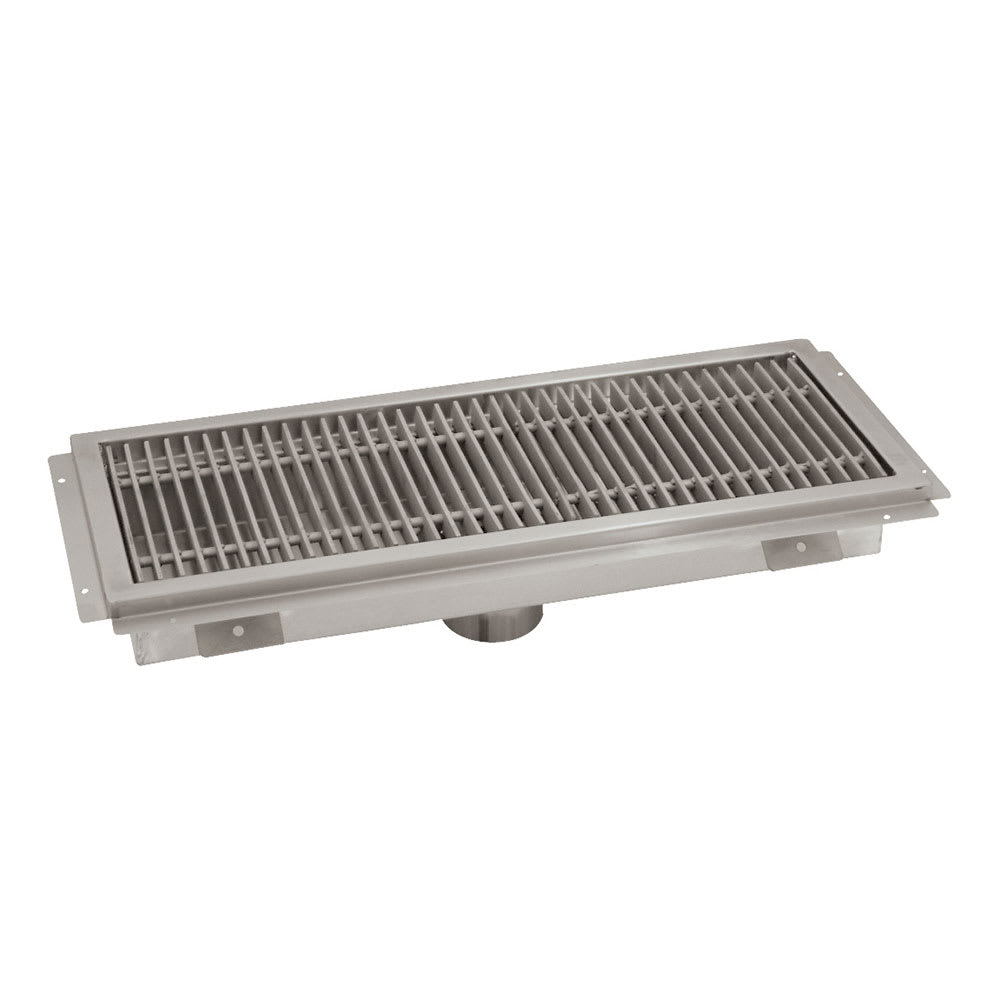

Advance Tabco FTG-1884 Floor Trough - Removable Strainer Basket, 18" x 84" x 4", 14 ga 304 Stainless

The Advance Tabco FTG-1884 floor trough is constructed of 14-gauge type 304 stainless steel and measures 84 inches long by 18 inches wide by 4 inches deep. Built for commercial kitchen and foodservice environments, it includes a removable perforated stainless steel strainer basket with an integrated handle to trap solid waste during drainage. The bottom of the trough is creased to promote water flow toward the outlet, which features a 4-inch O.D. waste sleeve measuring 3 inches long and pitched for consistent drainage into the plumbing system.

To support installation in tiled floors, the Advance Tabco FTG-1884 floor trough includes a 3⁄4-inch vertical step and a perimeter flange for mounting directly to the subfloor. The stainless steel subway-style grate is fabricated from 3⁄16-inch by 1-inch solid 304 stainless steel bars, spaced 9⁄16 inch apart to enable steady water flow. All external corners are TIG welded and polished to a satin finish for sanitation and durability. The open-frame design supports installations requiring a 4-inch waste pipe and provides corrosion resistance in high-moisture environments.

Product Details

• Part of the FTG series
• 14-ga. type 304 stainless steel construction
• Rectangular design
• Designed for floor installation
• Includes 4-in. O.D. x 3-in. L plumbing sleeve
• Accommodates 4-in. waste pipe
• Pitched toward waste outlet
• Creased interior for efficient drainage
• Removable perforated stainless steel strainer basket with handle
• Stainless steel subway-style grate made of 3⁄16-in. x 1-in. solid 304 stainless steel bars
• 9⁄16-in. bar spacing
• All TIG welded with satin-polished external corners
• Perimeter flange for subfloor mounting
• 3⁄4-in. vertical step for tile floor compatibility
• Overall dimensions: 18 in. W x 84 in. L x 4 in. D
