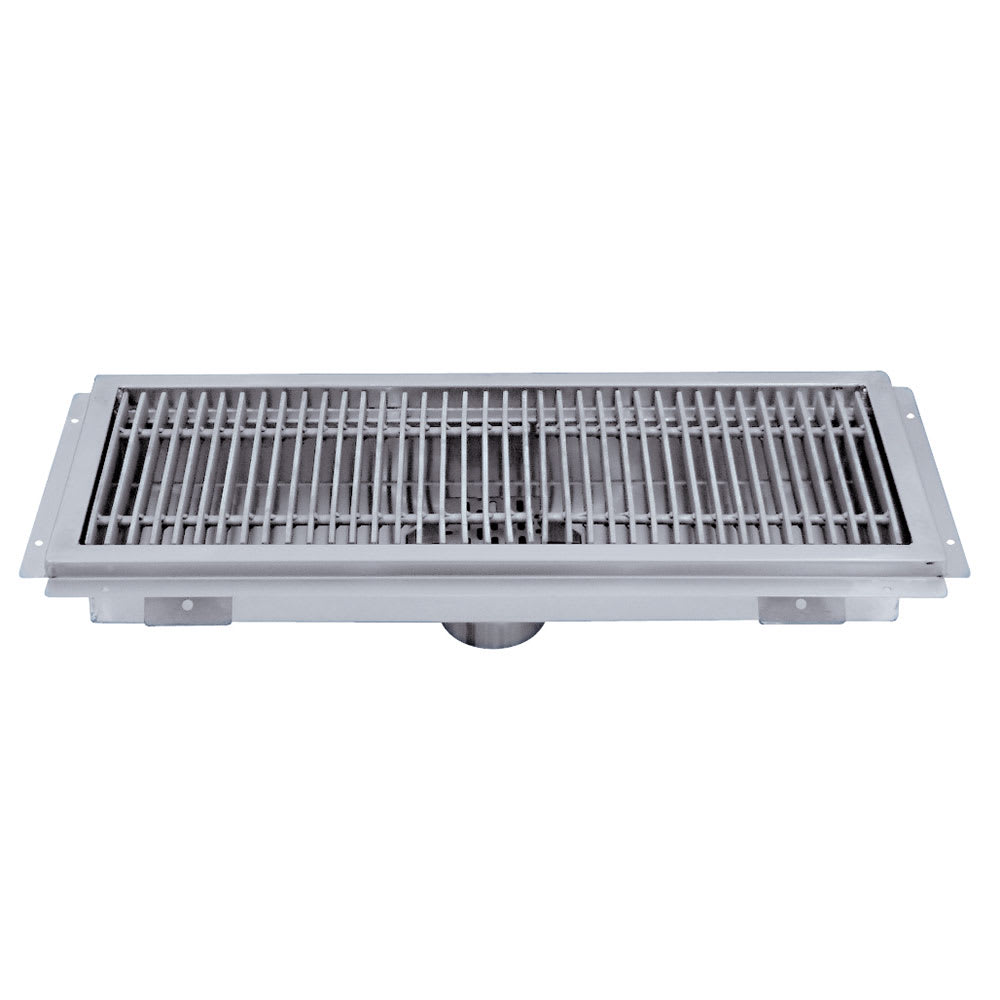

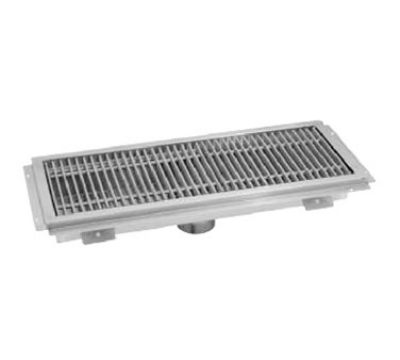

Advance Tabco FRG-48 Floor Water Receptacle - Subway Grating, 12" x 48" x 2", 14 ga 304 Stainless
Typically ships in 4 - 8 Business Days
$1,281.37 /Each
Advance Tabco FRG-48 Description
The Advance Tabco FRG-48 floor water receptacle is constructed of 14-gauge type 304 stainless steel, TIG welded for structural integrity and polished to a satin finish for professional appearance. Its perimeter flange secures the body directly to the subfloor, while the 3 4⁄4-inch vertical step simplifies tile alignment. A creased floor pitches liquid toward the waste outlet efficiently.
Supporting that well-angled base, the subway-style grating in the Advance Tabco FRG-48 floor water receptacle adds both structure and performance. Made of 3 3⁄16-inch by 1-inch stainless steel bars spaced 9 9⁄16 inches apart, it promotes steady drainage while standing up to daily use. Underneath, the 4-inch O.D. pipe and 3-inch sleeve make installations smoother.
Product Details
- FRG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange for direct subfloor mounting
- 3 4⁄4-in. vertical step
- Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar with 9 9⁄16-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with (1) drain opening
- Overall dimensions: 48 in. L x 12 in. W x 2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Water Receptacle, 48"L x 12"W x 2" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, NSF
Advance Tabco FRG-48 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 2 |
| Grate Material | Stainless Steel |
| Length (in) | 48 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FRG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 12 |
| Weight | 82.00 |
