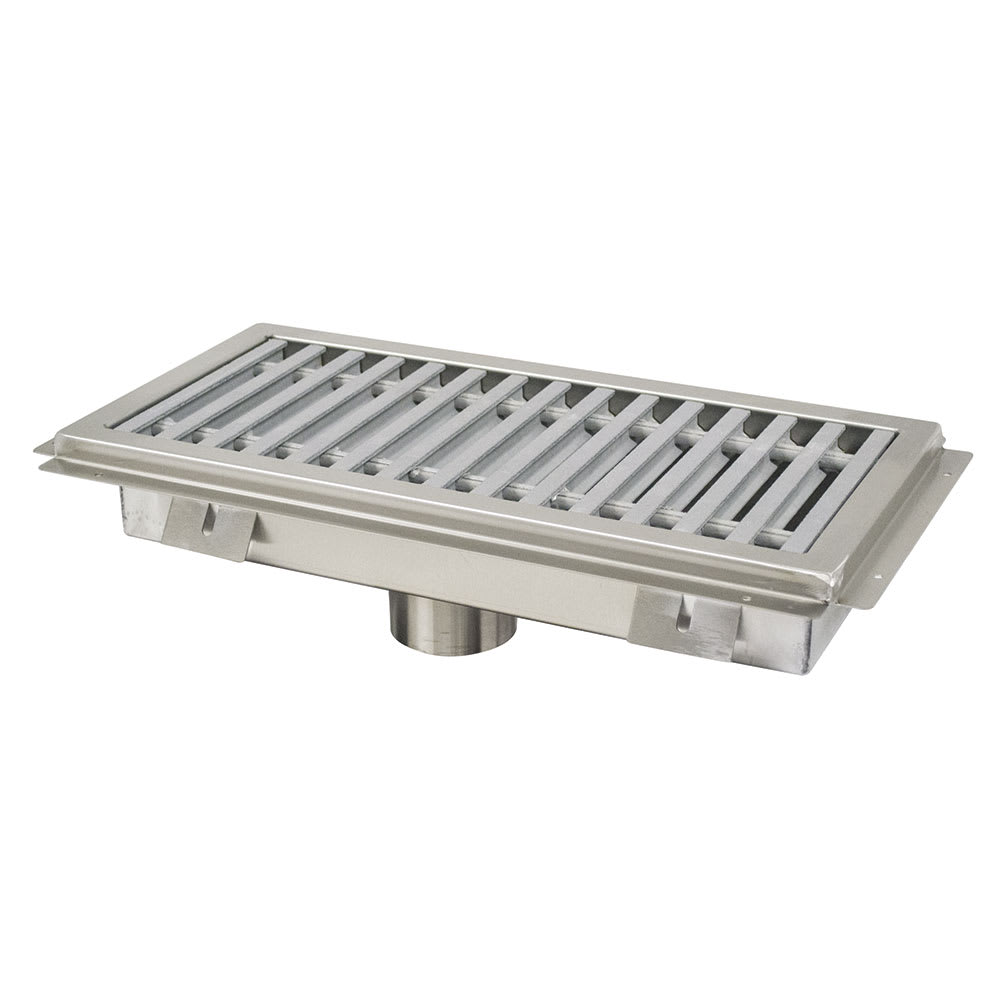

Advance Tabco FFTG-2454 Floor Trough - Removable Strainer Basket, Fiberglass Grating, 24" x 54" x 4"
Typically ships in 4 - 8 Business Days
$2,731.81 /Each
Advance Tabco FFTG-2454 Description
A single 4-inch O.D. drain opening on the Advance Tabco FFTG-2454 floor trough supports consistent water removal in medium-length drainage runs. It’s pitched toward the outlet to reduce pooling and improve flow, while the 3-inch plumbing sleeve simplifies waste line integration. A fiberglass subway-style grating promotes safe footing with corrosion resistance and slip prevention.
Designed for stable, long-term installation, this model features a perimeter flange with a built-in handle that mounts directly to the subfloor. The Advance Tabco FFTG-2454 floor trough also includes a 3 4⁄4-inch vertical step for smooth tile alignment. Welded external corners and TIG-welded seams complete the frame, contributing to a cleaner interior and simplified upkeep.
Product Details
- FFTG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange for direct subfloor mounting
- 3 3⁄4-in. vertical step
- Removable perforated stainless steel strainer basket with handle
- Fiberglass subway-style grating made of 5⁄8-in. x 1-in. medium-grit non-slip bars with 7⁄8-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with (1) drain opening
- Overall dimensions: 54 in. L x 24 in. W x 4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Trough, 54"L x 24"W x 4" deep, with fiberglass grating, stainless steel removable strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF
Advance Tabco FFTG-2454 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 4 |
| Grate Material | Fiberglass |
| Includes | Removable Strainer |
| Length (in) | 54 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FFTG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 24 |
| Weight | 95.00 |
