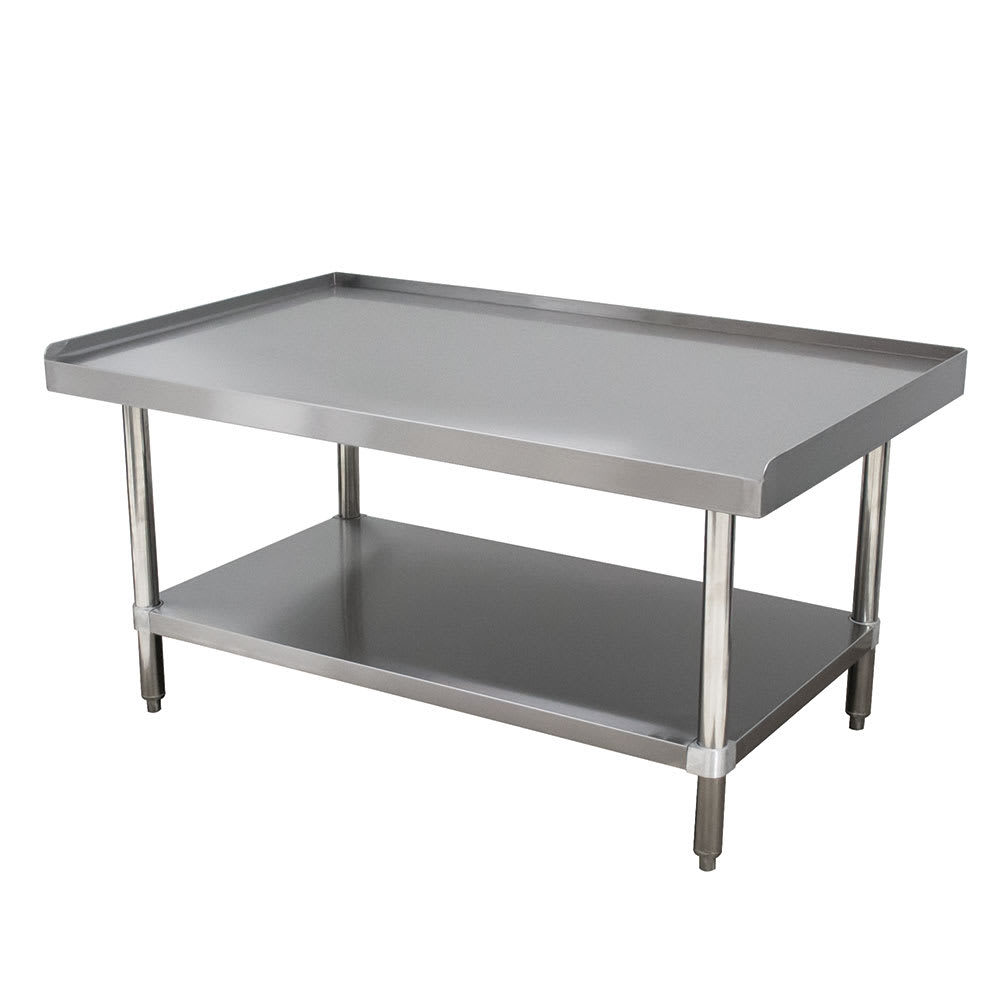

Advance Tabco ES-244 48" x 24" Stationary Equipment Stand for General Use, Undershelf

Engineered for durability and consistent performance, the Advance Tabco ES-244 equipment stand features a heavy-duty top made of 14-gauge 304 series stainless steel. This corrosion-resistant surface supports general-use equipment in prep areas and is mechanically polished to a satin finish that reduces glare while maintaining a professional appearance. The top is sound deadened to minimize noise transfer during operation and includes a 1-inch upturn along the rear and both sides to help contain spills and prevent equipment or tools from sliding off. A front-facing no-drip v-edge helps keep liquids from flowing over the edge, reducing cleanup needs around the unit.

Built with a stable, TIG-welded frame, the Advance Tabco ES-244 equipment stand has 1 5⁄8-inch-diameter heavy-gauge tubular stainless steel legs for structural support. Welded gussets reinforce the galvanized hat channels that run beneath the top, while roll-formed embossed channels are bonded with structural adhesive and secured using weld studs. The adjustable undershelf, made of 18-gauge stainless steel, provides additional storage space and is fastened to the legs using die-cast aluminum clamps, eliminating the need for exposed nuts and bolts. The stand is supported by 1-inch adjustable stainless steel bullet feet, which help compensate for uneven flooring and maintain a level work surface across varied environments.

Product Details

• ES Series
• Undershelf base style
• Top constructed of 14-ga. 304 series stainless steel
• Top features 1-in. upturn on rear and both sides
• Front no-drip v-edge
• Top surface mechanically polished to satin finish
• Top is sound deadened
• Galvanized hat channels are roll formed and embossed
• Hat channels bonded with structural adhesive and secured with weld studs
• Gussets welded to support hat channels
• TIG-welded construction
• Adjustable undershelf made of 18-ga. stainless steel
• Leg-to-shelf aluminum die-cast clamps
• Legs are 1 5⁄8-in.-dia. heavy-gauge tubular stainless steel
• Stainless steel gussets
• 1-in. adjustable stainless steel bullet feet
• Overall dimensions: 48 in. W x 24 in. D x 25 in. H
