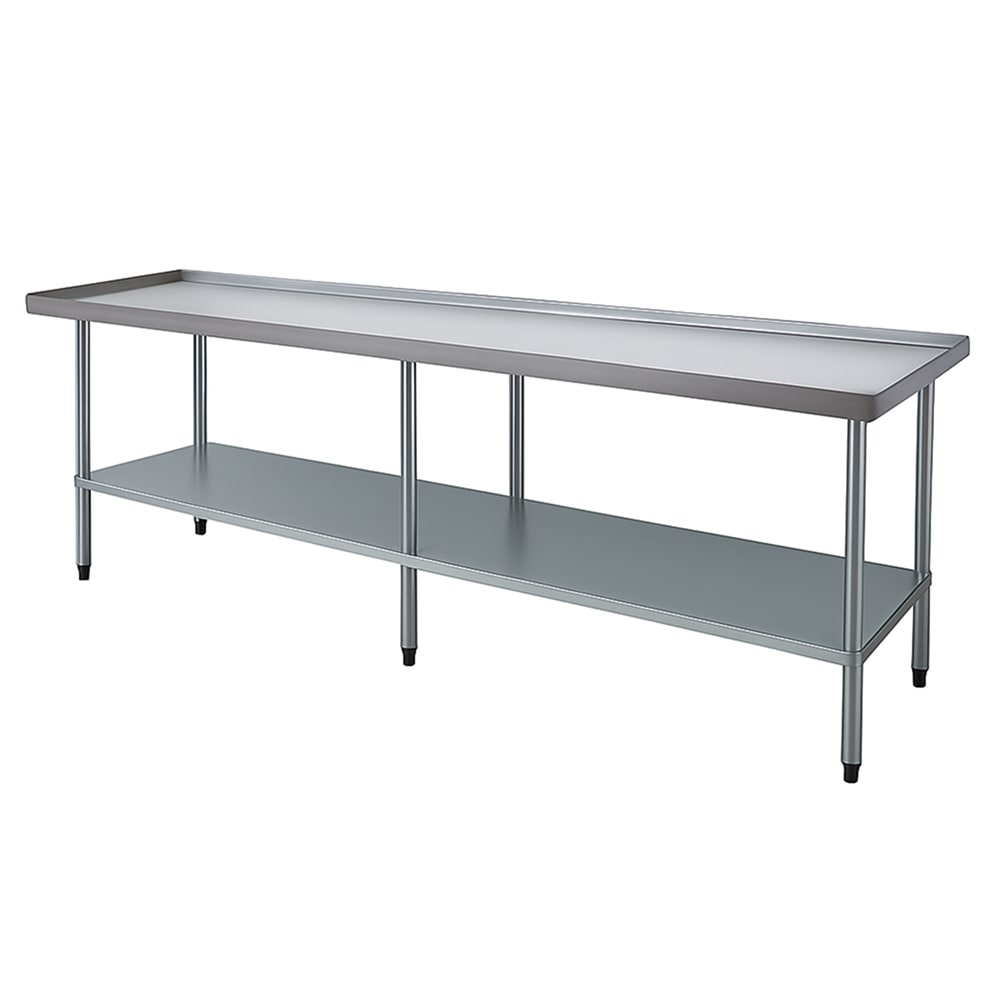

Advance Tabco EG-307 84" x 30" Stationary Equipment Stand for General Use, Undershelf
Typically ships in 2 - 3 weeks
$1,580.11 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Advance Tabco EG-307 Description
Designed with a galvanized steel base and TIG-welded frame, the Advance Tabco EG-307 equipment stand supports heavy-duty use in commercial kitchens. The undershelf, made of 18-gauge galvanized steel, adjusts to accommodate various storage needs and is secured using aluminum die-cast clamps that eliminate exposed hardware. Stability is maintained with 1 5⁄8-inch-diameter tubular galvanized steel legs and 1-inch adjustable plastic bullet feet. Welded gussets provide reinforcement at critical stress points to support long-term structural integrity.
The reinforced hat channel system on the Advance Tabco EG-307 equipment stand supports the 14-gauge 304 series stainless steel top, which is mechanically polished to a satin finish and sound deadened to minimize vibration and operational noise. Beneath the surface, roll-formed and embossed galvanized channels are bonded in place with structural adhesive and weld studs. A 1-inch upturn on the rear and both sides helps contain small items, while the front no-drip v-edge redirects liquids away from the user and floor.
Product Details
- EG Series
- Undershelf base style
- Top constructed of 14-ga. 304 series stainless steel
- Top features 1-in. upturn on rear and both sides
- Front no-drip v-edge
- Top surface mechanically polished to satin finish
- Top is sound deadened
- Galvanized hat channels are roll formed and embossed
- Hat channels bonded with structural adhesive and secured with weld studs
- Gussets welded to support hat channels
- TIG-welded construction
- Adjustable undershelf made of 18-ga. galvanized steel
- Leg-to-shelf aluminum die-cast clamps
- Legs are 1 5⁄8-in.-dia. tubular galvanized steel
- Galvanized steel gussets
- 1-in. adjustable plastic bullet feet
- Overall dimensions: 84 in. W x 30 in. D x 25 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Equipment Stand, 84"W x 30"D x 25"H (overall), 24" working height, 14 gauge 304 series stainless steel top with 1" upturn on rear & both sides, front edge with no-drip v-edge, 18 gauge adjustable galvanized undershelf, galvanized legs with adjustable plastic bullet feet, NSF
Advance Tabco EG-307 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Accommodates | General Use |
| Application | Stationary |
| Backsplash Height (in) | 1 |
| Base | Undershelf |
| Depth (in) | 30 |
| Height (in) | 25 |
| Length (in) | 84 |
| Product | Equipment Stands |
| Product Type | Commercial Work Tables & Stations |
| Warranty | 90-day Parts |
| Working Height | 24 |
| Weight | 142.00 |
