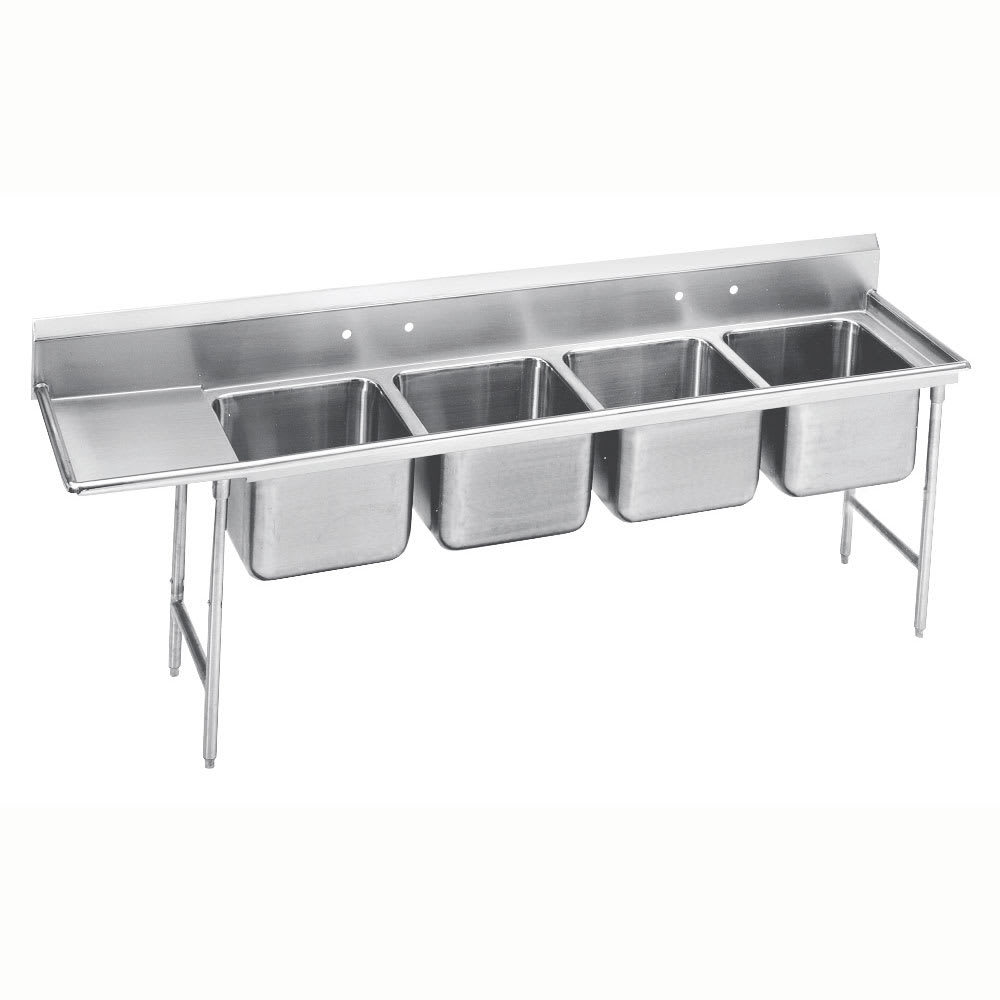

Advance Tabco 9-24-80-24L 117" 4 Compartment Sink w/ 20"L x 20"W Bowl, 12" Deep
Typically ships in 3 - 4 weeks
$3,751.18 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Advance Tabco 9-24-80-24L Description
An 8-inch backsplash on the Advance Tabco 9-24-80-24L four-compartment sink shields nearby walls from splashes during rinsing and washing. Splash-mounted faucet holes are spaced on 8-inch centers to support typical plumbing configurations without clutter. Its deep-drawn bowls feature rounded corners, helping staff clean quickly while maximizing usable space inside each compartment during busy service hours.
The welded seams on the Advance Tabco 9-24-80-24L four-compartment sink are blended smooth and polished to a satin finish, giving it a clean look and fewer spots for grime to collect. Each joint is reinforced with gussets and die-embossed channels that strengthen the frame. This solid TIG-welded design improves long-term durability during repeated loading and scrubbing.
- Regaline series
- 4-compartment sink
- 18-ga. 304 stainless steel construction
- 24-in. left-hand drainboard
- 3-in. radius bowl corners
- 8-in. backsplash with tile edge
- Recessed bowl surface fits Poly-Vance cutting boards and sink covers
- 12-in. water level with 16-in. flood level
- (2) sets of 8-in. O.C. faucet holes (requires 2 faucets, faucets not included)
- 1 1⁄2-in. IPS stainless steel basket drains located in bowl centers
- Adjustable stainless steel side cross-rails with leg clamps
- All TIG-welded construction with satin-blended seams
- (4) 1 5⁄8-in. dia. tubular stainless steel legs with stainless steel gussets and 1-in. adjustable stainless steel bullet feet
- Sink bowl (4): 20 in. L x 20 in. W x 12 in. D
- Overall: 117 in. L x 28 in. D x 42 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartments, 12" deep, with 8"H backsplash, stainless steel open frame base, side cross rails, 24" drainboard, 1" adjustable feet, 18 gauge 304 stainless steel, overall 28" F/B x 117" L/R NSF (requires 2 faucets)
Advance Tabco 9-24-80-24L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 8 |
| Construction | Stainless Steel |
| Depth (in) | 28 |
| Drainboard Length (in) | 24 |
| Drainboard Location | Left |
| Faucet Centers (in) | 8 |
| Faucet Mount | Splash |
| Length (in) | 117 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Series | Regaline |
| Sink Depth (in) | 12 |
| Sink Length (in) | 20 |
| Sink Width (in) | 20 |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 90-day Parts |
| Weight | 239.00 |
