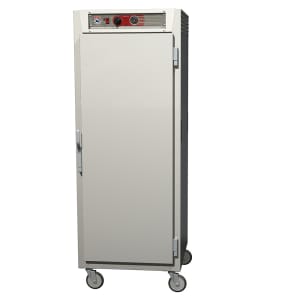

Metro C569-SFS-LPFS Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v
$6,920.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C569-SFS-LPFS Description

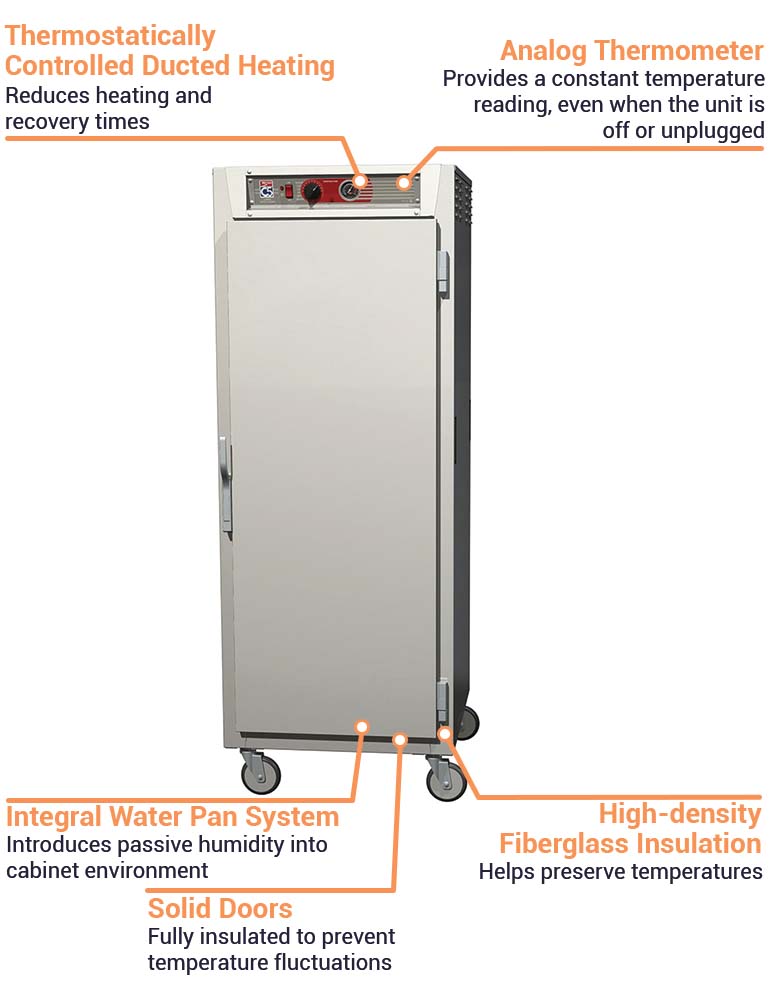

Operators can adjust the Metro C569-SFS-LPFS C5™ 6 Series heated holding cabinet's temperatures between 70 and 200 degrees Fahrenheit with the top-mounted temperature controls. To ensure product is held at the correct temperatures, its analog thermometer always displays a temperature readout, even when the unit isn't in use. The thermostatically controlled, ducted heating system reduces heating and recovery times to accommodate successive heating applications, and an integral water pan system introduces passive humidity to ensure foods don't become dry during warming. Because the cabinet's perimeter is lined with 2.50-inch-thick, high-density fiberglass insulation, temperature fluctuation is unlikely when the doors are opened for short periods of time.
This Metro C569-SFS-LPFS heated holding cabinet's pass-thru configuration provides operators access to the front and back of the unit to streamline pan loading and retrieval. The doors' solid, fully insulated stainless steel constructions help preserve temperatures and protect the cabinet's internal components. The cabinet's interior is made of 22-gauge stainless steel, and built-in lip-load slides accommodate (35) 18-inch by 26-inch sheet pans. The exterior's polished, 20-gauge stainless steel construction withstands corrosion while granting durability. Overall, this full-height cabinet measures 29 1⁄8 inches wide by 34 5⁄8 inches deep by 74 3⁄4 inches high and is mounted on 5-inch casters.
- Pass-thru, full-height unit
- Pan capacity: (35) 18-in. x 26-in. sheet pans
- Cabinet holding temperature range: 70-200 degrees F
- Top-mounted temperature controls
- Always-on analog thermometer
- Ducted heating system
- Integral water pan system for passive humidity
- High-density fiberglass insulation
- 20-ga. polished stainless steel exterior and 22-ga. stainless steel interior
- 2 solid, fully insulated stainless steel doors
- 5-in. casters (2 braking)
- 29 1⁄8 in. W x 34 5⁄8 in. D x 74 3⁄4 in. H
- 16 A, 2 kW
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C569-SFS-LPFS within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, solid doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C569-SFS-LPFS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 2 |
| Pan Capacity | 35 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 385.00 |
