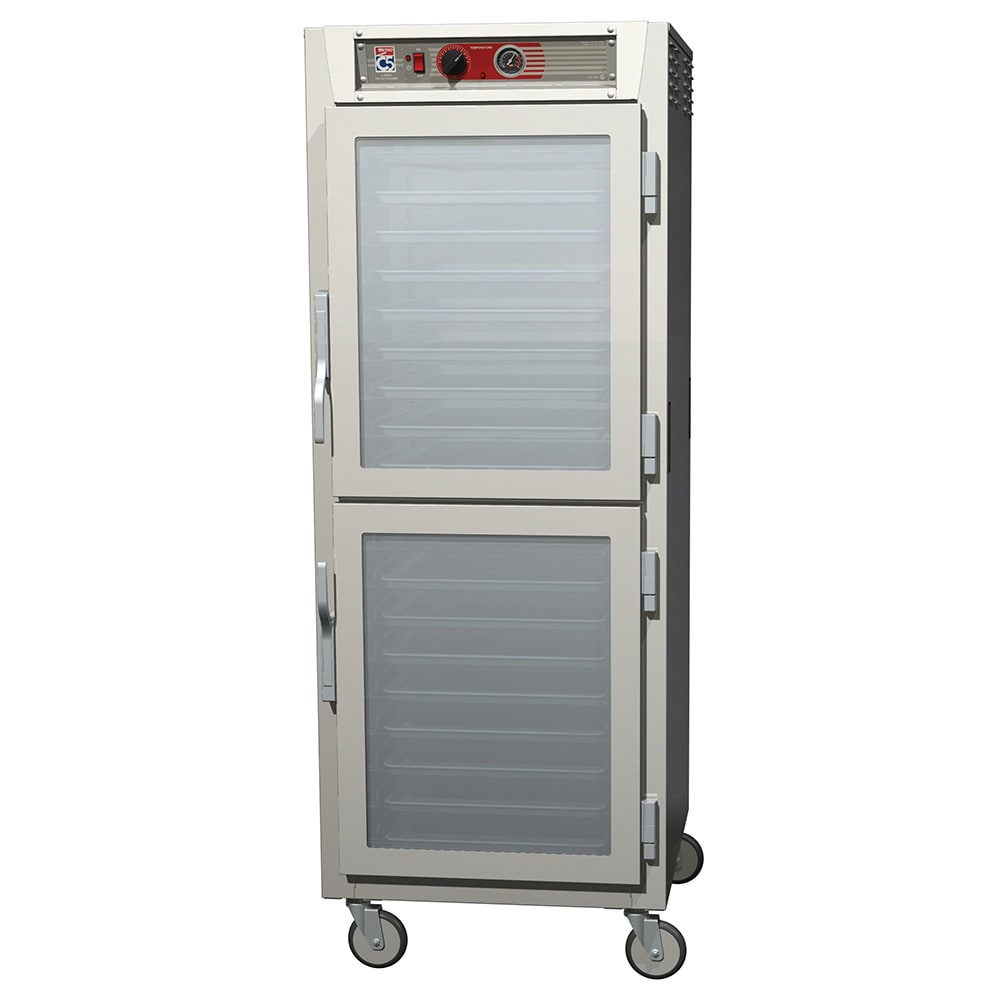

Metro C569-SDC-UPDS Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$7,771.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C569-SDC-UPDS Description
The ducted heating system generates and maintains temperatures between 70 and 200 degrees Fahrenheit throughout the Metro C569-SDC-UPDS C5™ 6 series heated holding cabinet's interior. This mechanism reduces heating and recovery times to accommodate consecutive food warming applications. Operators can adjust the top-mounted controls quickly, and an analog thermostat provides a constant temperature readout, even when the cabinet is unplugged. To ensure foods don't become dry, the unit's internal water pan adds passive humidity to the cabinet interior, which can improve food quality before serving.
To preserve cabinet temperatures, the Metro C569-SDC-UPDS heated holding cabinet is insulated by high-density fiberglass. Its pass-thru layout enables operators to access the front and back of the unit to streamline product retrieval and loading. Two clear, double-pane tempered glass doors are built into the unit's front, providing a clear view of product, while two fully insulated, solid stainless steel doors are built into the back of the unit. Because all its doors have a Dutch design, users can access specific cabinet sections without opening others, which can reduce temperature fluctuations. To enable mobility, this unit is mounted on casters.

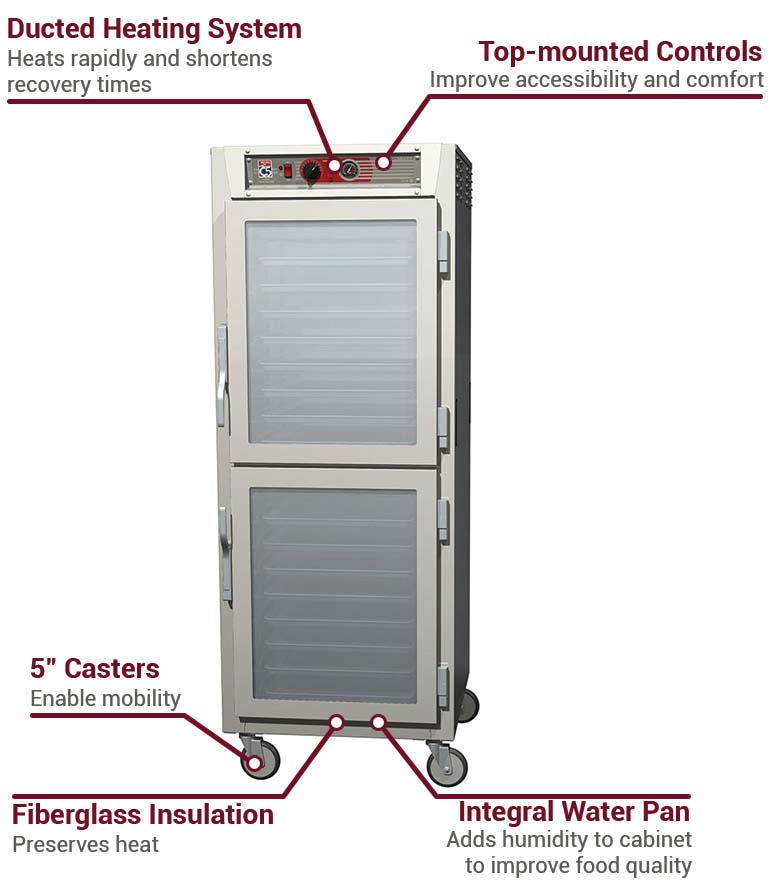

- Part of the Metro C5 6 series
- Pass-thru, full-height unit
- 1 set of double-pane tempered glass Dutch doors and 1 set of solid Dutch doors
- Holds (17) 18-in. x 26-in. pans or (32) 12-in. x 20-in. x 2 1⁄2-in. pans
- Universal wire slides can be adjusted in 1.50-in. increments
- High-density fiberglass insulation
- Made of rust- and corrosion-resistant stainless steel
- Ducted heating system optimizes performance
- Top-mounted controls with analog thermometer
- Temperature range: 70-200 degrees F
- Integral water pan system introduces passive humidity to cabinet
- Situated on (4) 5-in. donut casters (2 braking)
- 29 1⁄8 in. W x 34 5⁄8 in. D x 74 3⁄4 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C569-SDC-UPDS within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) Dutch double pane tempered glass & (1) Dutch solid doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire slides (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 3" OC (adjustable on 1-1/2" increments), 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C569-SDC-UPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Half |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 370.00 |
