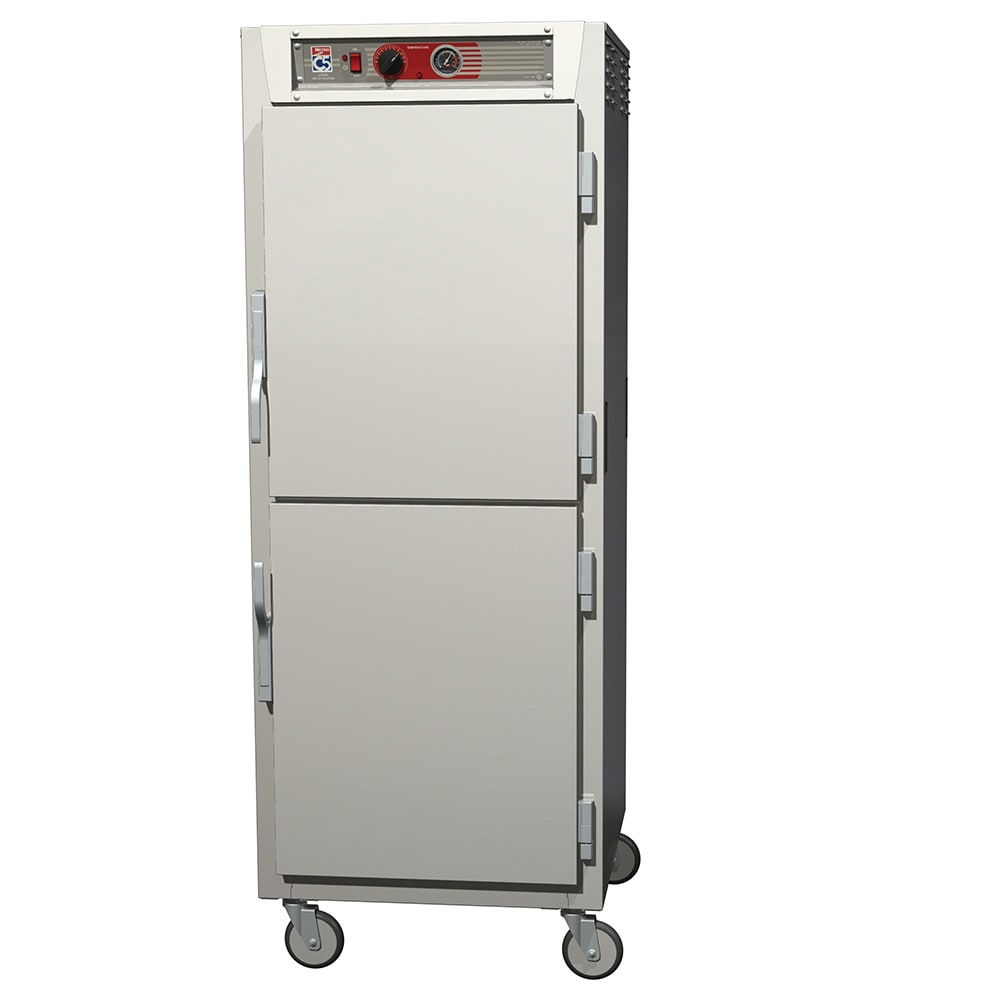

Metro C569L-SDS-LPDS Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$7,109.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C569L-SDS-LPDS Description
Durable and rust resistant, the Metro C569L-SDS-LPDS C5™ 6 series holding cabinet's exterior and interior are made of stainless steel. A pass-thru model, it's equipped with two sets of solid Dutch doors and has a capacity of (34) 18-inch by 26-inch pans. It has a temperature range of 70 to 200 degrees Fahrenheit, and operators can adjust these levels using a top-mounted control system. For users to view the current temperature at a glance, the cabinet is equipped with a reliable analog thermometer.
To improve performance and shorten recovery times, the Metro C569L-SDS-LPDS mobile heated cabinet operates with a ducted heating system. It's insulated with high-density fiberglass to preserve warm air and prevents food from drying out with an integrated water pan system. Overall, this full-height unit measures 29 1⁄8 inches wide by 34 5⁄8 inches deep by 74 3⁄4 inches high.
- Full-height, pass-thru Metro C5 6 series heated holding cabinet
- Capacity: (34) 18-in. x 26-in. pans
- Universal wire slides are adjustable in 1 1⁄2-in. increments
- 2 sets of solid Dutch doors
- Integral water pan system adds moisture to food through passive humidity
- Temperature range: 70-200 degrees F
- Ducted heating operating system
- Reliable analog thermometer and top-mounted controls
- Resilient stainless steel construction
- High-density fiberglass insulation retains heat
- Mobility provided with (4) 5-in. donut casters (2 braking)
- 29 1⁄8 in. W x 34 5⁄8 in. D x 74 3⁄4 in. H
- 12 A, 1,440 W
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C569L-SDS-LPDS within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
Metro C569L-SDS-LPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 1.4 |
| Load Type | Pass Thru |
| NEMA | 5-15P |
| No. of Doors | 4 |
| Pan Capacity | 34 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 390.00 |
