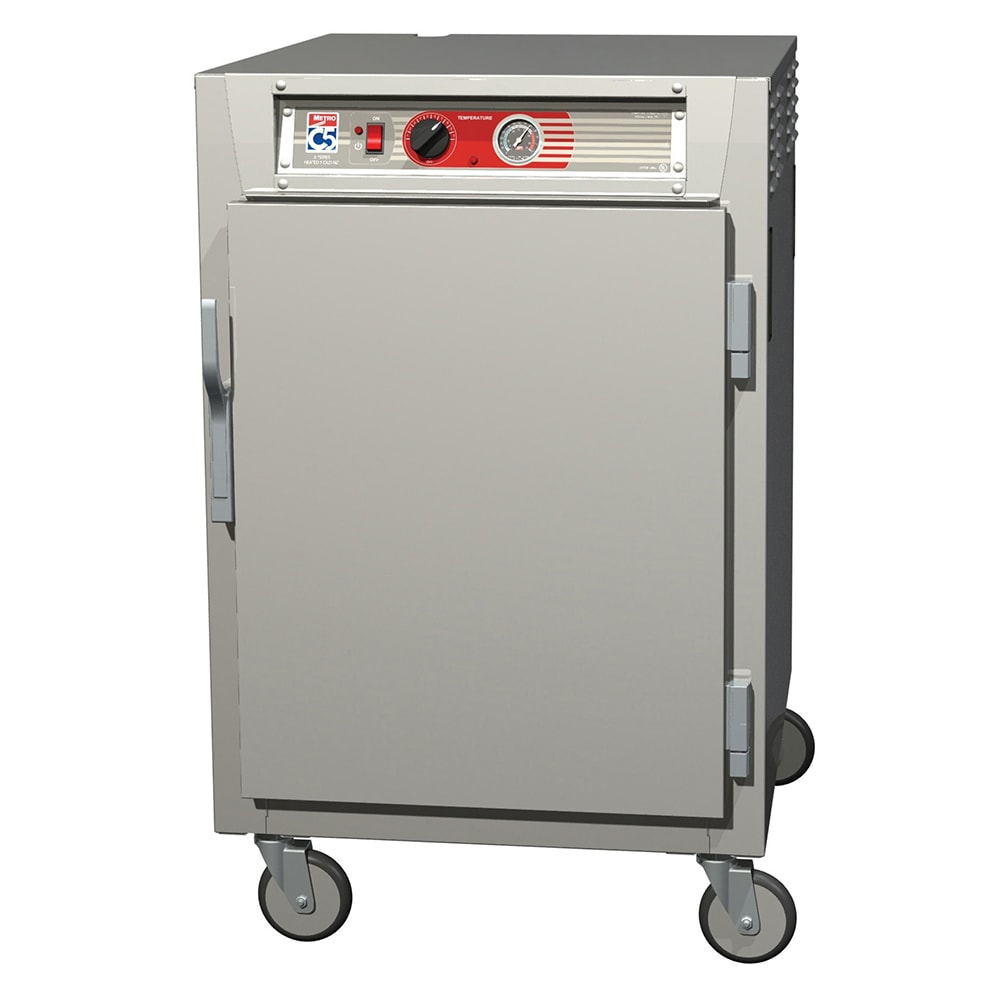

Metro C565-SFS-UPFC 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v
$5,881.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C565-SFS-UPFC Description
This Metro C565-SFS-UPFC C5™ 6 series heated holding cabinet has a pass-thru arrangement that lets users load and retrieve pans from either side of the unit. On one side, a solid door helps retain heat, and the other side features a tempered glass door that grants a clear view of product for quick inventory checks. Its half-height design measures 29 1⁄8 inches wide by 34 5⁄8 inches deep by 44 3⁄4 inches high and is mounted on 5-inch casters that facilitate maneuvering and stability. To extend its service life, this unit's cabinet is made of rigid, corrosion-resistant stainless steel.
The Metro C565-SFS-UPFC holding cabinet includes universal wire slides that can be adjusted on 1 1⁄2-inch increments. Overall, it holds eight 18-inch by 26-inch pans or (16) 12-inch by 20-inch by 2 1⁄2-inch pans. To ensure foods are warm prior to serving, this unit uses a thermostatically controlled, ducted heating system and 2 1⁄2-inch-thick high-density fiberglass insulation. Users can adjust temperatures between 70 and 200 degrees Fahrenheit on the top-mounted control system, which includes an analog thermometer that always provides a temperature readout, even when the unit is off. To retain the texture of foods, users also can incorporate the water pan system for passive humidity.
- Part of the Metro C5 6 series
- Half-height cabinet
- Pass-thru layout
- Capacity: (8) 18-in. x 26-in. pans or (16) 12-in. x 20-in. x 2 1⁄2-in. pans
- Universal wire slides adjust in 1 1⁄2-in. increments
- 1 solid and 1 tempered glass door
- 5-in. casters (2 with brakes)
- Stainless steel construction
- Thermostatically controlled, ducted heating system
- 2 1⁄2-in. fiberglass insulation
- Water pan system for passive humidity
- Top-mounted temperature controls and analog thermometer
- Thermostat adjustable from 70-200 degrees F
- 29 1⁄8 in. W x 34 5⁄8 in. D x 44 3⁄4 in. H
- 16 A, 2 kW
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C565-SFS-UPFC within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, half height, pass thru, insulated (1) solid & (1) double pan tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire slides (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 3" OC (adjustable on 1-1/2" increments), 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C565-SFS-UPFC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Full |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 44.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 2 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 175.00 |
