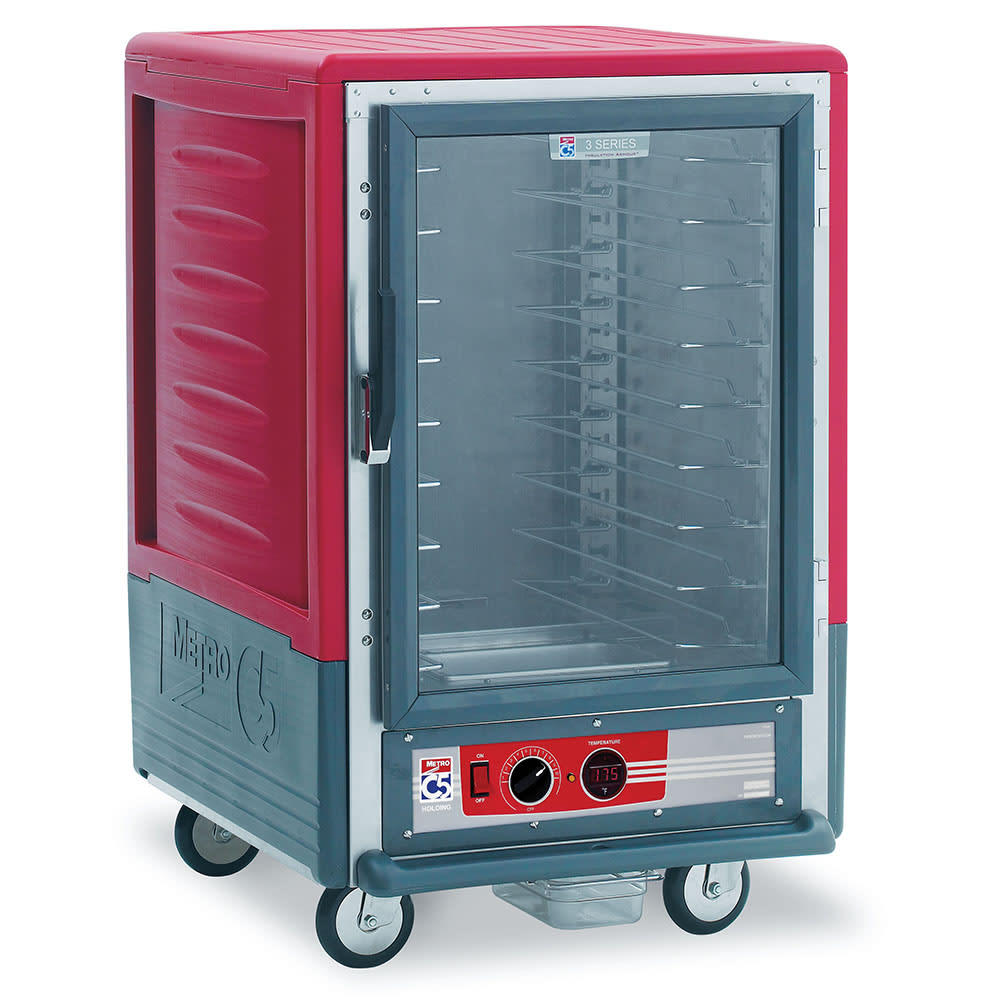

Metro C535-HLFC-U 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v
$3,002.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C535-HLFC-U Description
The Metro C535-HLFC-U C5™ 3 half-height, heated cabinet can accommodate eight 18-inch-by-26-inch pans or (16) 12-inch-by-20-inch pans. Pans sit on universal wire slides with 3-inch centers and are adjustable in 1 1⁄2-inch increments to accommodate different products. Manufactured of high-density polyethylene, the unit is strong and stays cool to the touch.
Moving the unit is simple with its 5-inch swivel casters, two of which have brakes that lock the unit in place. The temperature in the Metro C535-HLFC-U mobile heated cabinet ranges from 80 to 200 degrees Fahrenheit. Operators can check the temperature on the dial thermostat, and the control dials are recessed to protect them from damage. The control panel has a master/off switch with an indicator light that shows the unit is operational.
- (8) 18-in. x 26-in. pan capacity
- (16) 12-in. x 20-in. pan capacity
- Universal wire slides on 3-in. centers are adjustable in 1 1⁄2-in. increments
- High-density polyethylene construction resists stains and dents
- Cool-to-the-touch exterior prevents burns
- Fully-insulated, solid door keeps heat inside cabinet
- Door has field-reversible hinges that open 180 degrees for convenient pan loading and unloading
- Pull-action door latch has a lever-action release
- Handles on each corner simplify controlling the unit while moving it
- Temperature range: 80-200 degrees F
- Dial thermometer
- Recessed control dials
- On/off switch
- Power-on indicator light
- 2 of the (4) 5-in. swivel casters have brakes
- 27 5⁄8 in. W x 31 1⁄2 in. D x 44 in. H
- 1440 W, 12 A
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C535-HLFC-U within the 48 contiguous states.
From The Manufacturer
C5™ 3 Series Heated Holding Cabinet, lower wattage, with Red Insulation Armour™, mobile, half height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
Metro C535-HLFC-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Color | Red |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Lexan |
| Heat | Electric |
| Height (in) | 44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 1.4 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 3 Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Weight | 118.00 |
